Spicer Drive Shaft Midship Stub Shaft - 3-53-2291

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-2291
SKU: 3-53-2291
Availability: OutOfStock

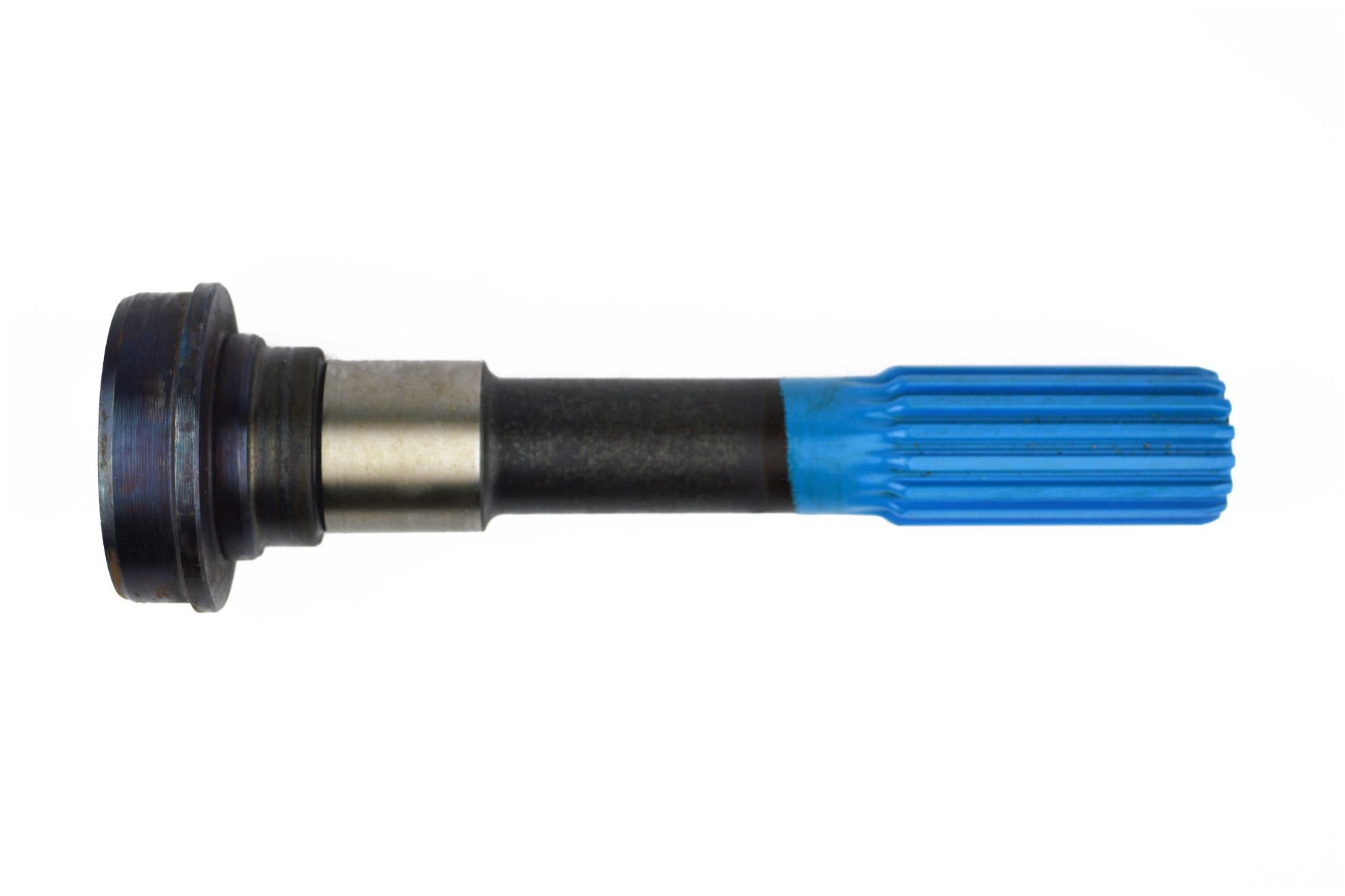

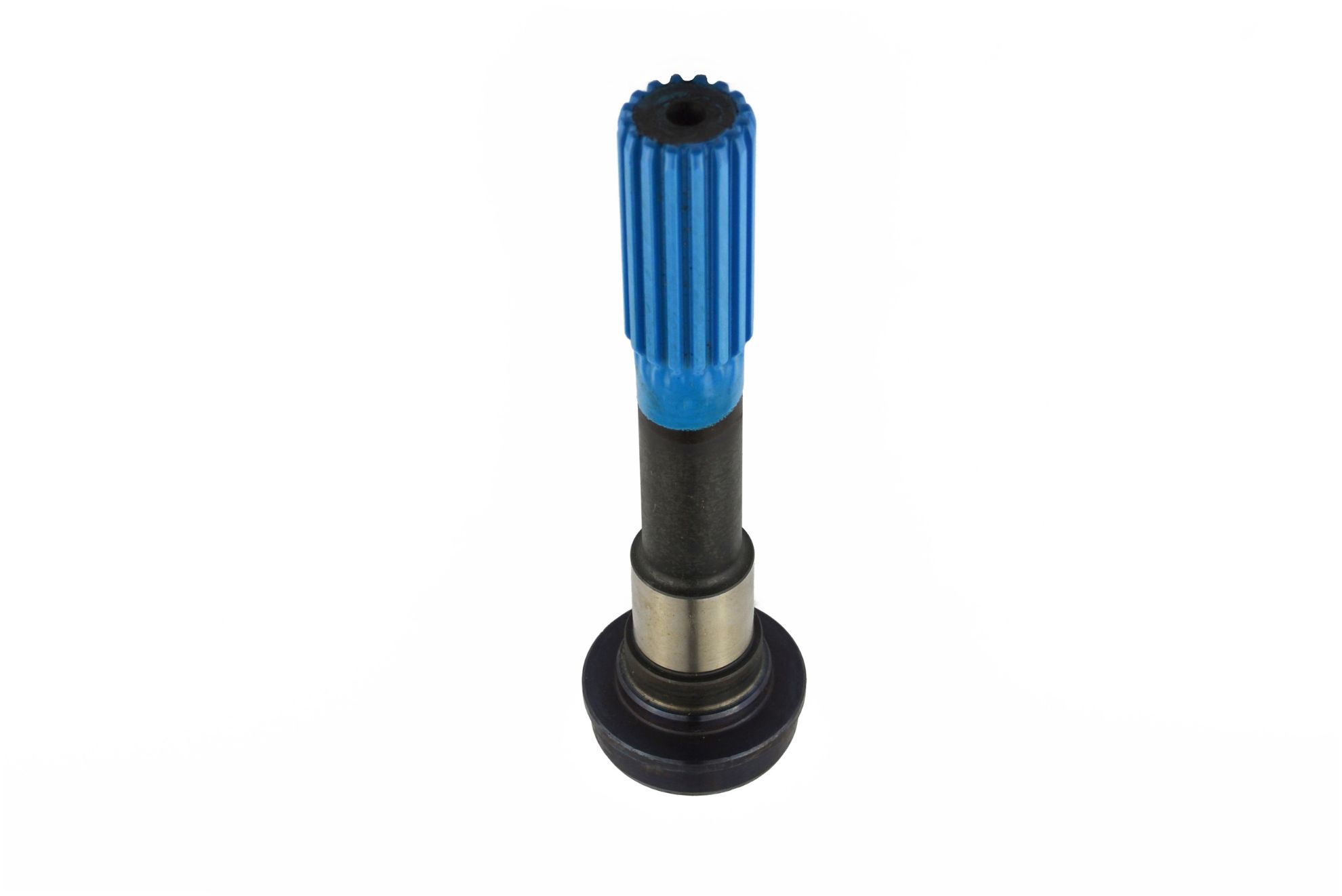

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-2291

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Style	2
Prop 65	NO
Fits Tube Diameter	3
Involute	N
Fits Tube Wall	0.095
Butt Diameter	2.821
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	9.350
Spline Length (L) In	3.000
Bearing Diameter (Min)	1.5747
For Use With	Slip Yoke
Shoulder Diameter (B) In.	1.812
Shoulder Length (G) In.	0.875
Spline End To Brg Shoulder (Y)	8.234
Bearing Diameter Length	1.5
Bearing Diameter Radius	0.19
Number of Splines	15/16
Spline O.D.	1.5000
Country of Origin	US
Condition	New
