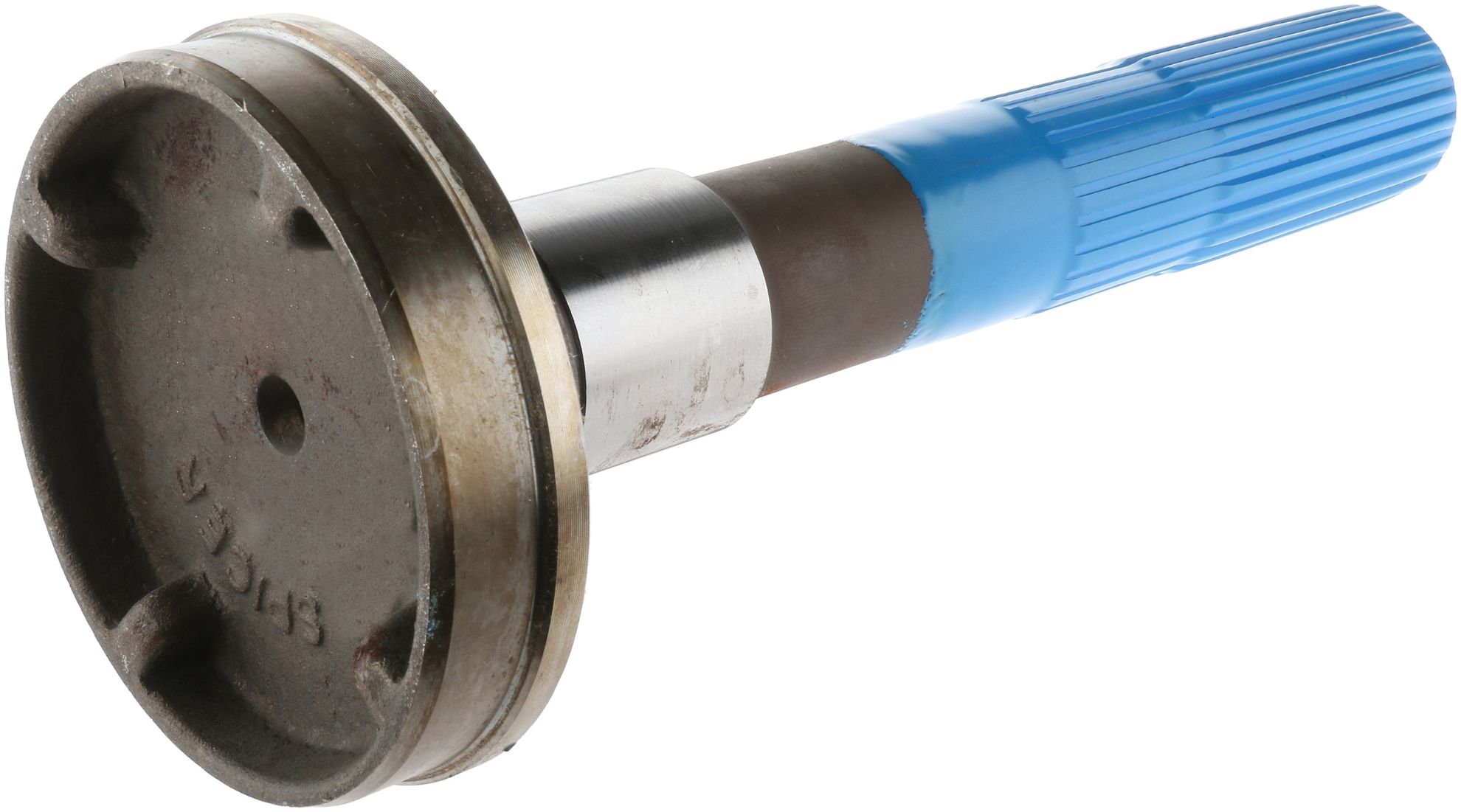

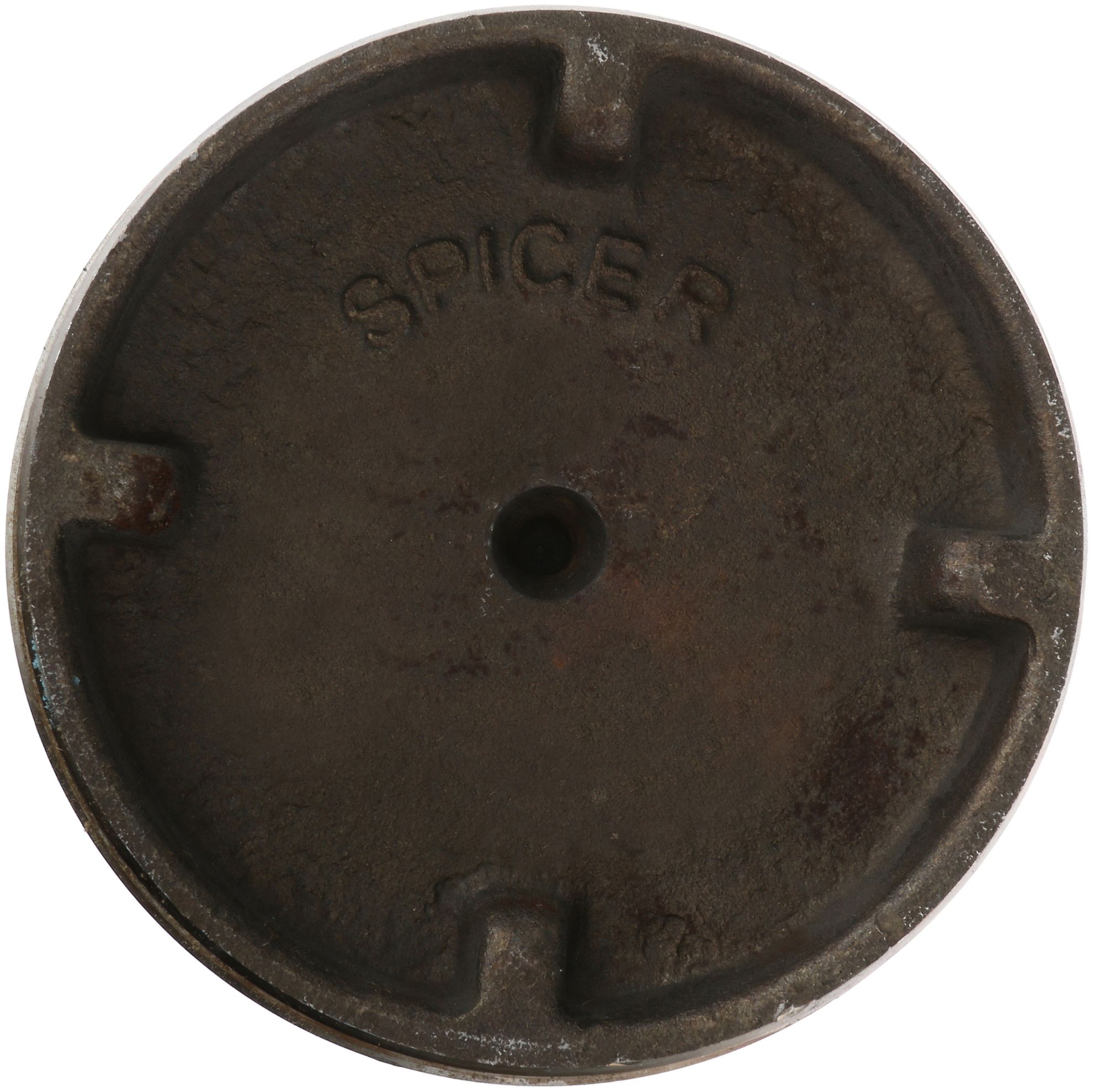

Spicer Drive Shaft Midship Stub Shaft - 3-53-2561

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-2561
SKU: 3-53-2561
Availability: OutOfStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-2561

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Prop 65	NO
Fits Tube Diameter	4
Involute	Y
Fits Tube Wall	0.083
Butt Diameter	3.845
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	9.875
Spline Length (L) In	3.000
Bearing Diameter (Min)	1.5747
For Use With	Slip Yoke
Shoulder Diameter (B) In.	1.810
Shoulder Length (G) In.	0.880
Spline End To Brg Shoulder (Y)	8.750
Bearing Diameter Length	1.5
Bearing Diameter Radius	0.19
Number of Splines	23/24 I
Style	2
Spline O.D.	1.5620
Country of Origin	US
Condition	New
