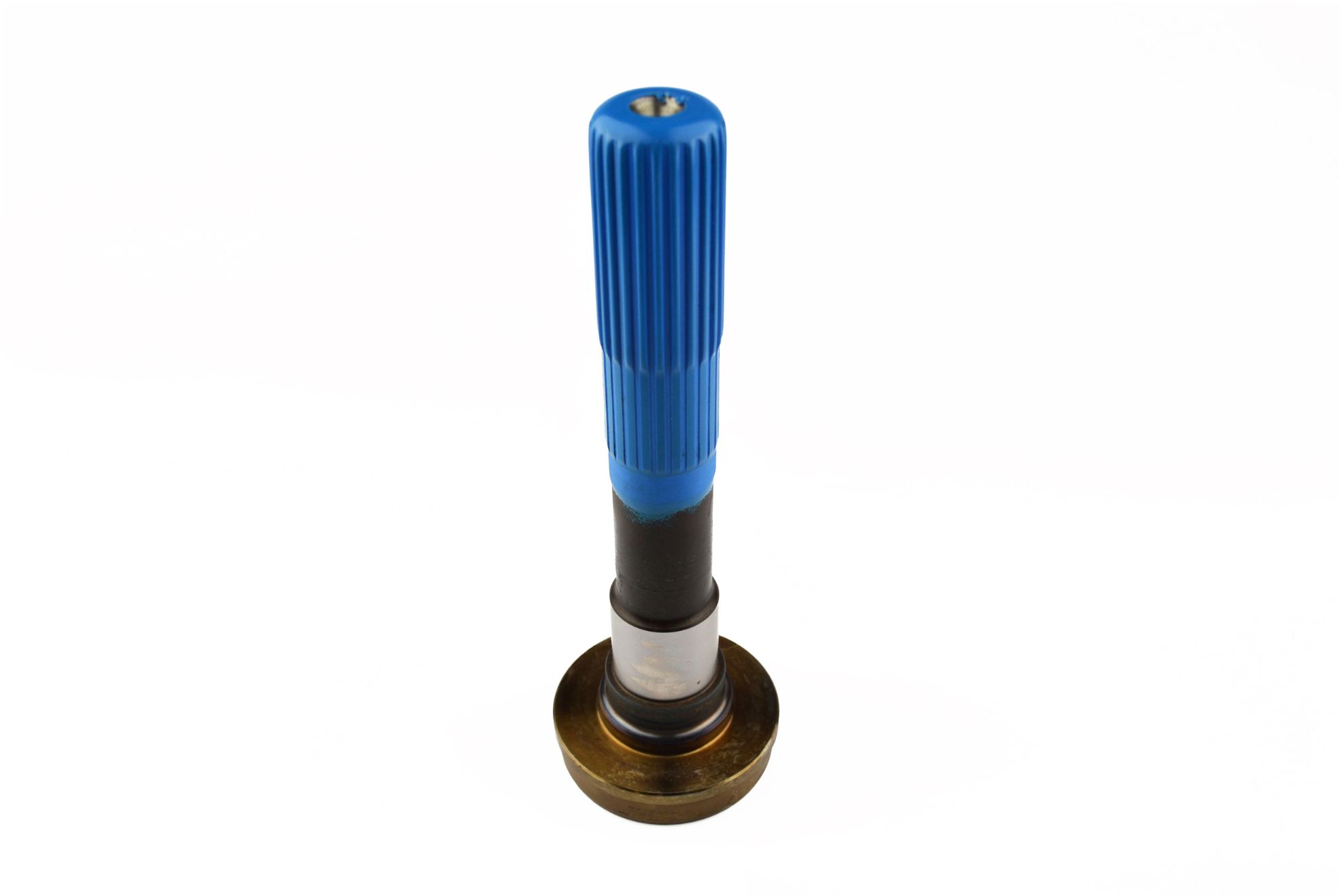

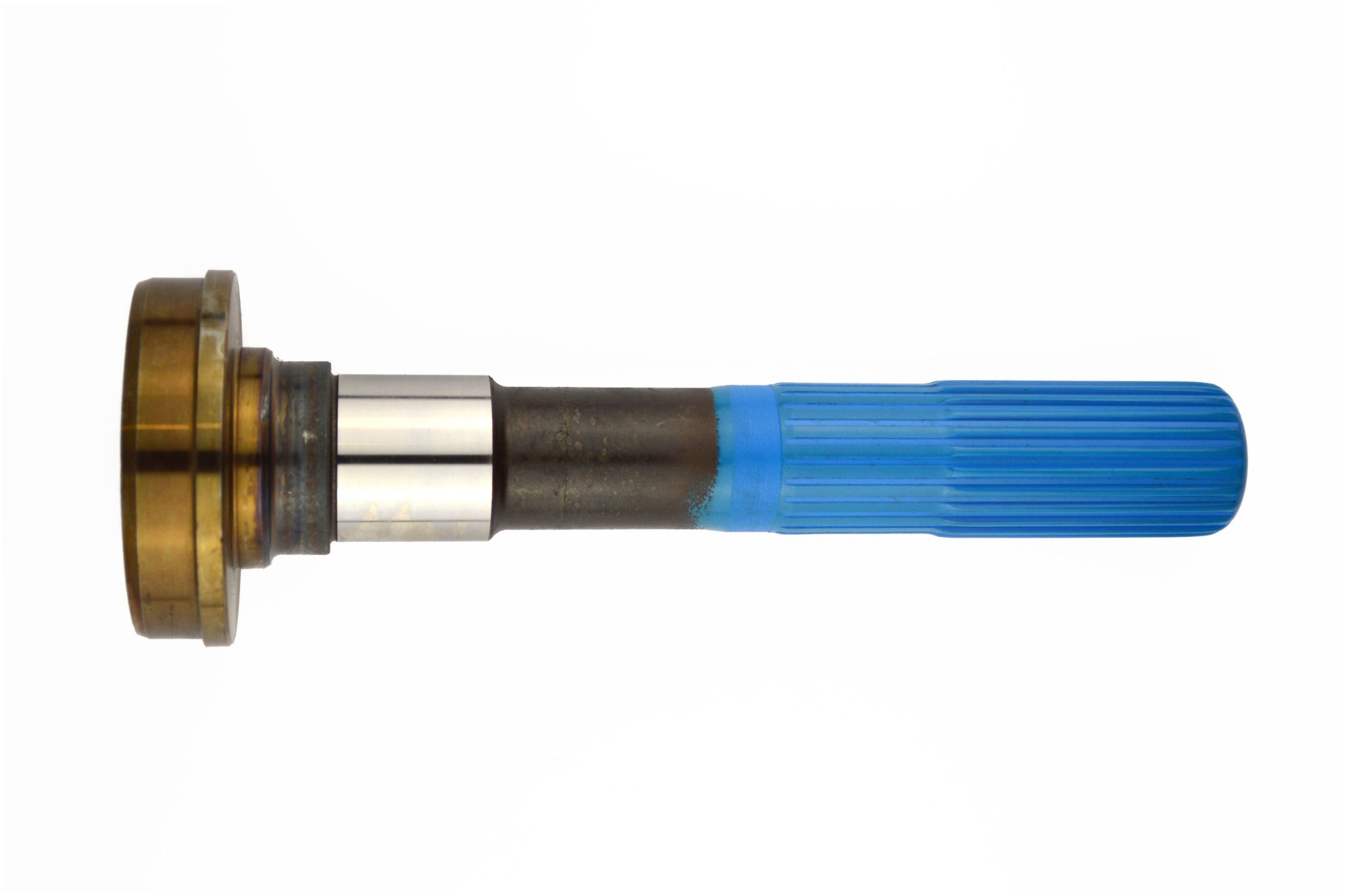

Spicer Drive Shaft Midship Stub Shaft - 3-53-2571

Name: Spicer Drive Shaft Midship Stub Shaft - 3-53-2571
SKU: 3-53-2571
Availability: OutOfStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 3-53-2571

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Material	Steel
Style	2
Prop 65	NO
Spline O.D.	1.5620
Fits Tube Diameter	3.5
Involute	Y
Fits Tube Wall	0.083
Butt Diameter	3.345
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	9.875
Spline Length (L) In	3.000
Bearing Diameter (Min)	1.5747
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	1.812
Shoulder Length (G) In.	0.880
Spline End To Brg Shoulder (Y)	8.750
Bearing Diameter Length	1.5
Bearing Diameter Radius	0.19
Number of Splines	23/24 I
Series	1310-1480
Country of Origin	MX
Condition	New
