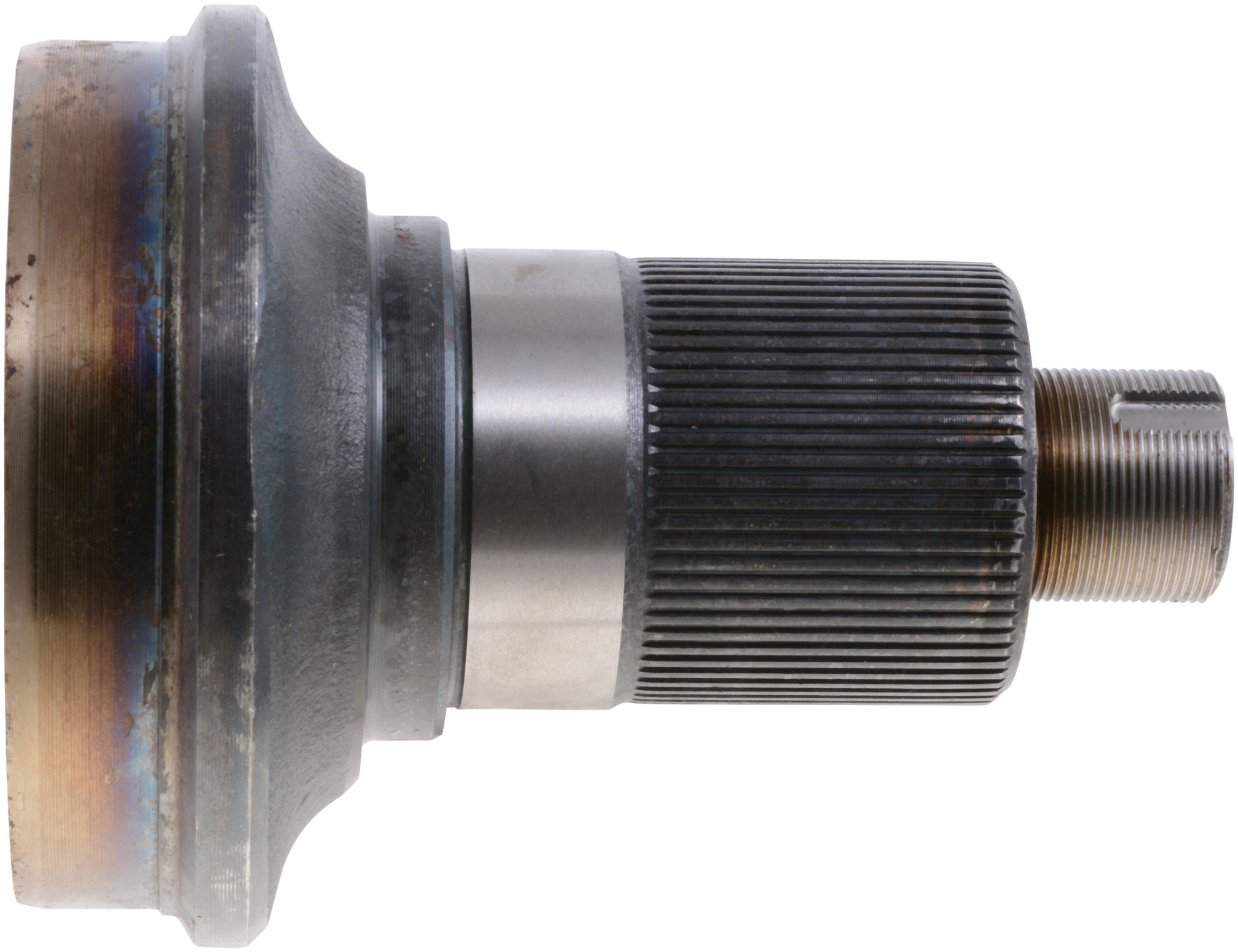

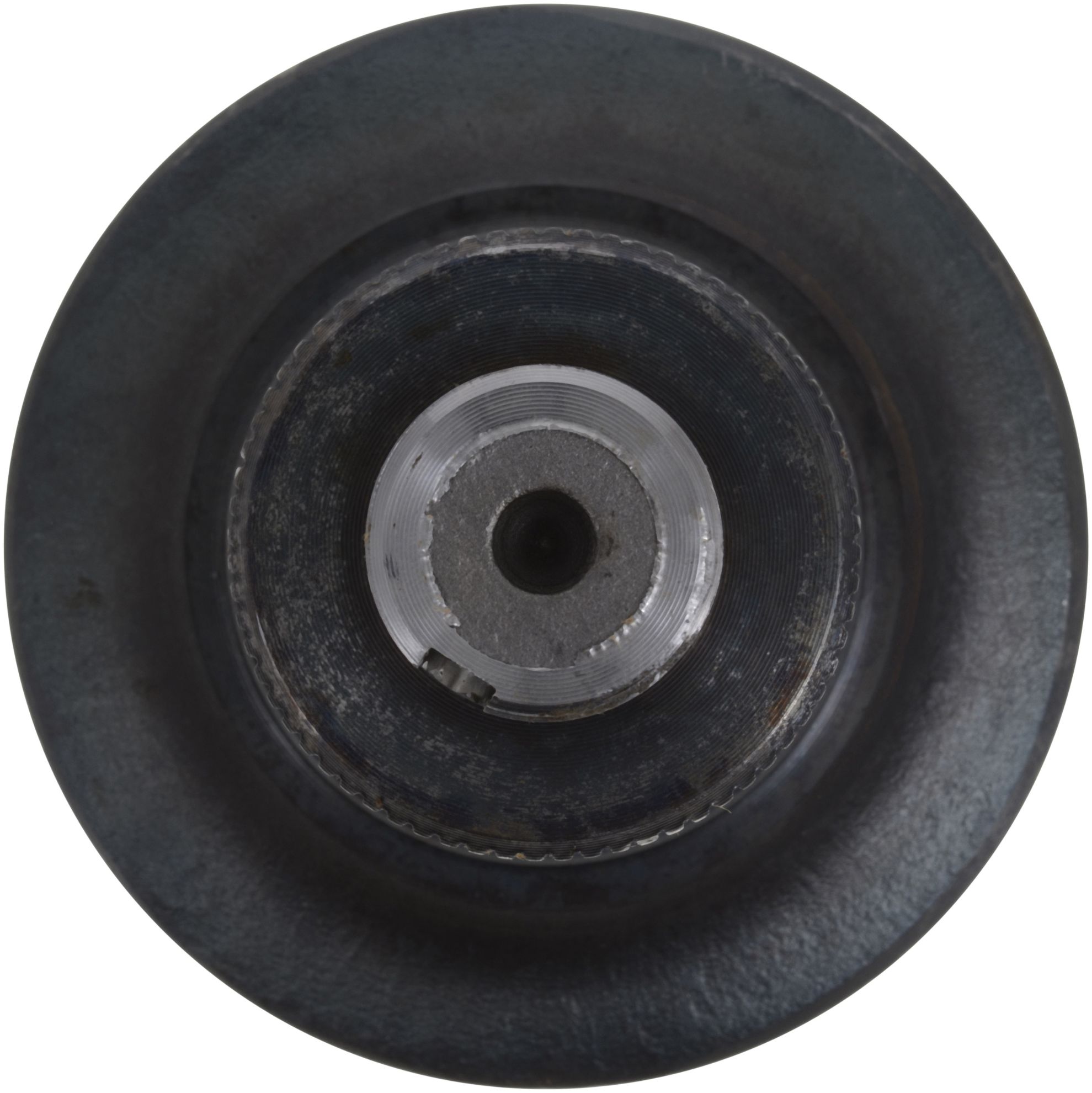

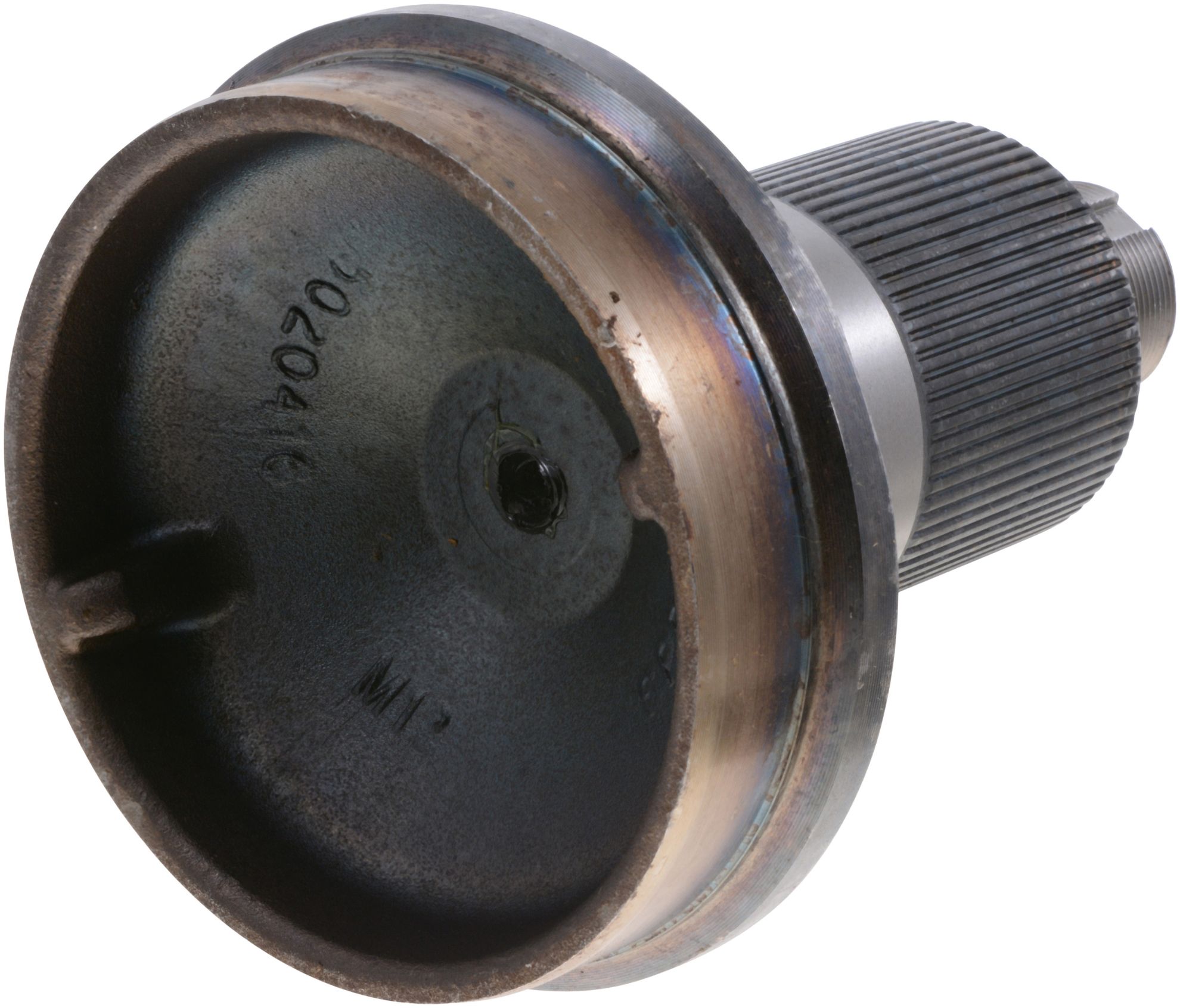

Spicer Drive Shaft Midship Stub Shaft - 350-53-23770

Name: Spicer Drive Shaft Midship Stub Shaft - 350-53-23770
SKU: 350-53-23770
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 350-53-23770

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL350
Material	Steel
Thread Size	M38X1.5-6G
Style	1
Prop 65	NO
Spline O.D.	2.707
Fits Tube Diameter	140.000MM
Involute	Y
Fits Tube Wall	.083
Butt Diameter	5.14
Bearing Diameter (C) In.	2.756
Bearing Diameter (Max)	2.756
Spline End To Weld (K) In.	5.020
Spline Length (L) In	2.244
Bearing Diameter (Min)	2.755
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	3.130
Shoulder Length (G) In.	.216
Spline End To Brg Shoulder (Y)	3.366
Number of Splines	68 I
Country of Origin	US
Condition	New
