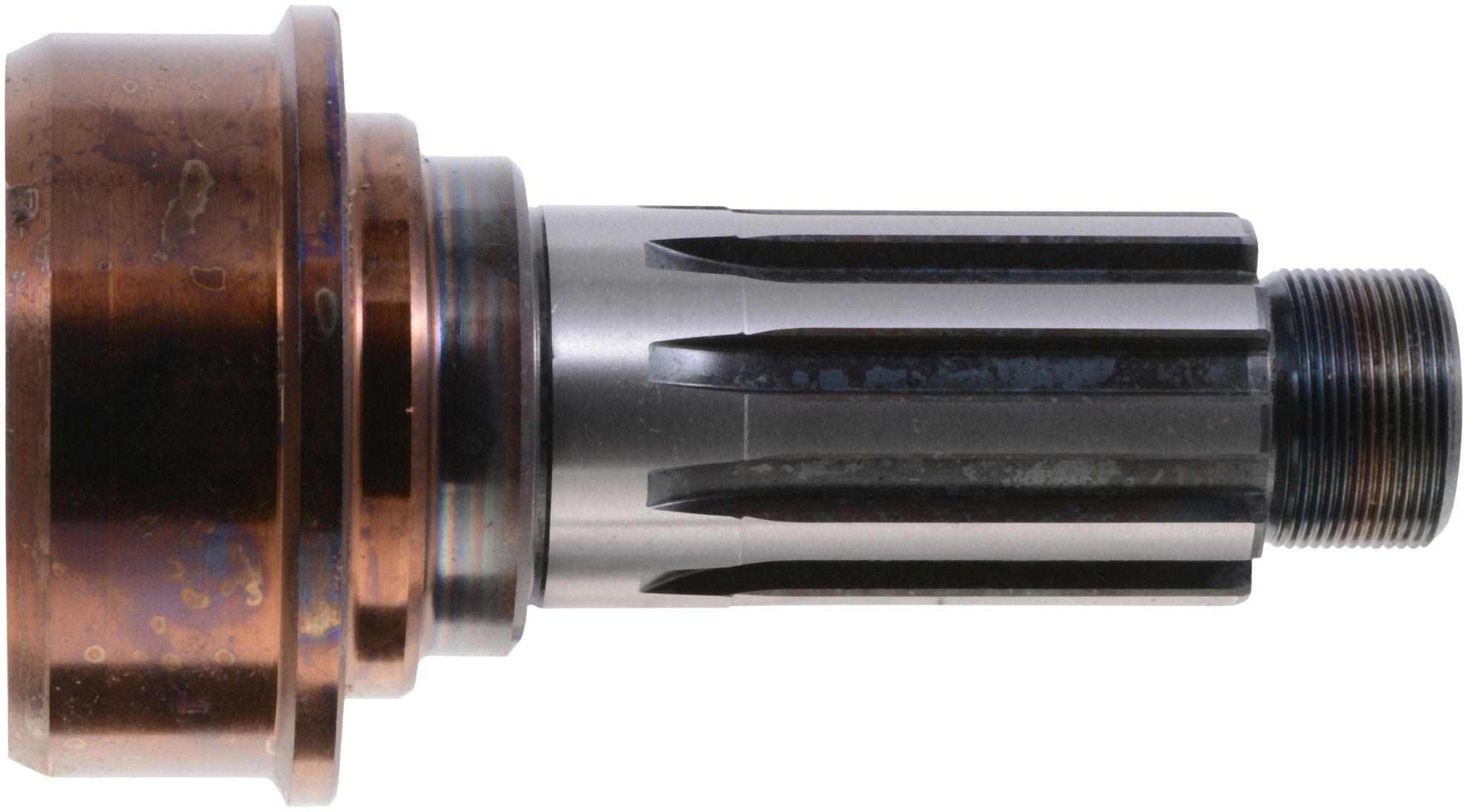

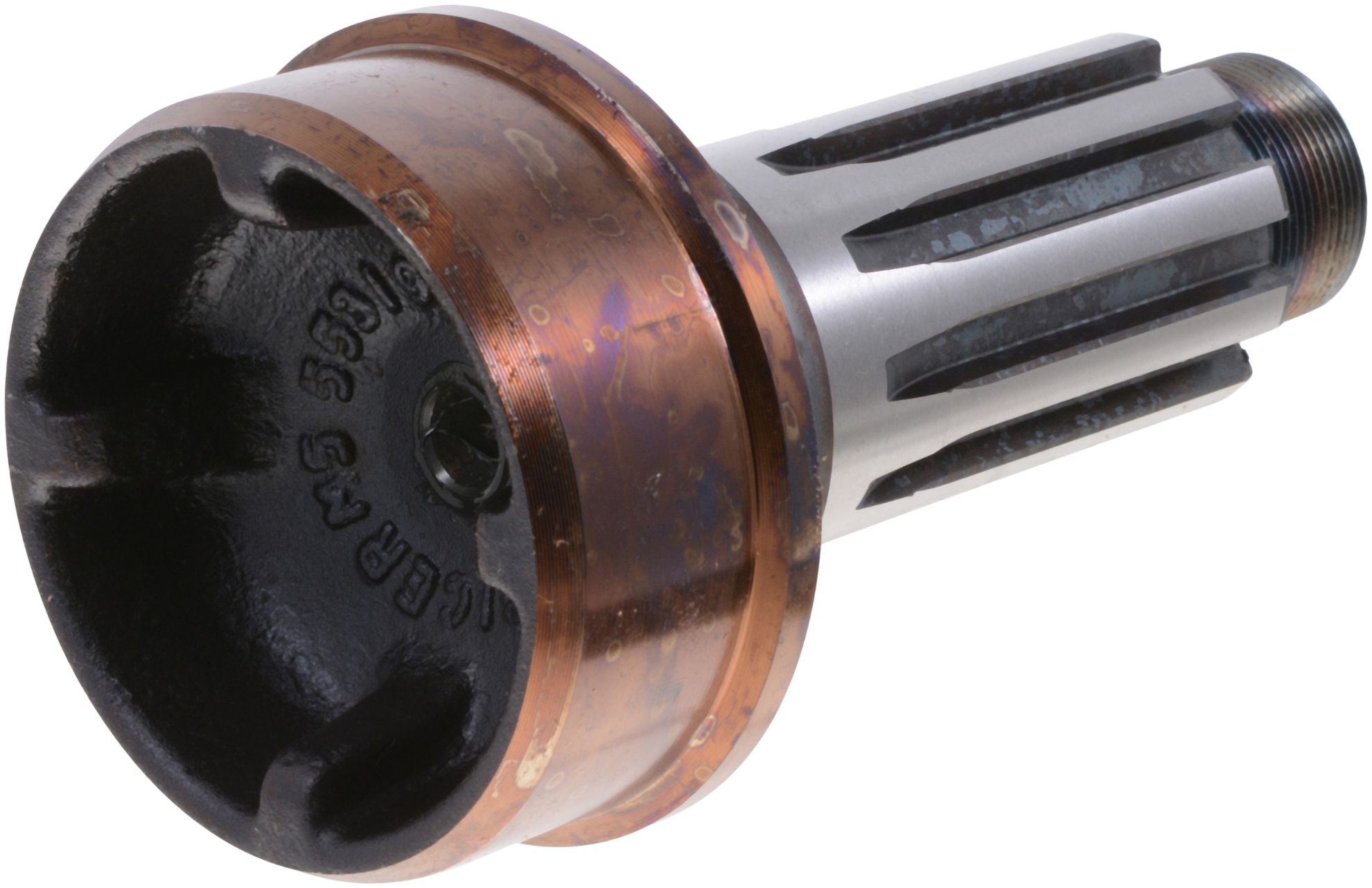

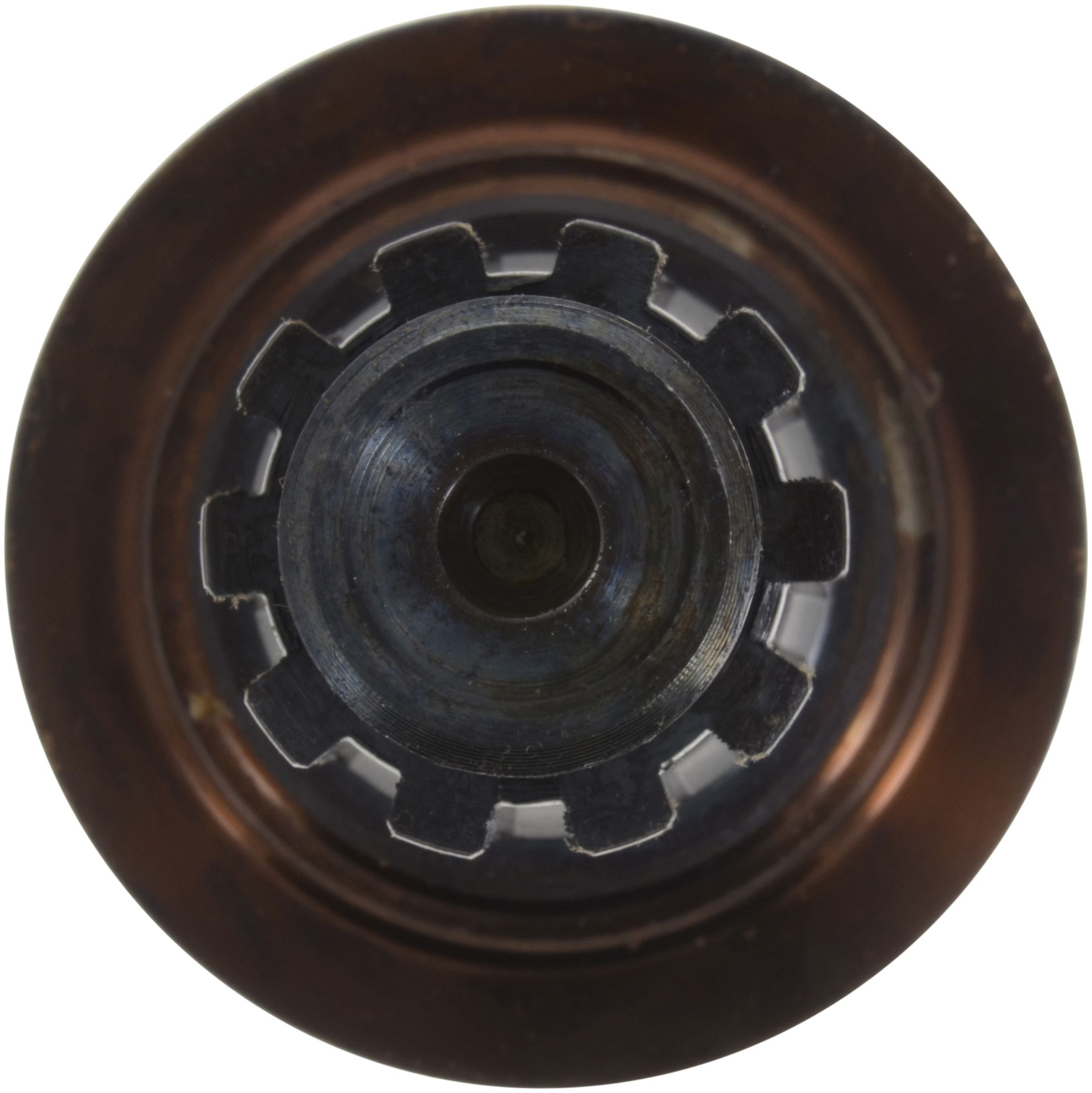

Spicer Drive Shaft Midship Stub Shaft - 5-53-141

Name: Spicer Drive Shaft Midship Stub Shaft - 5-53-141
SKU: 5-53-141
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 5-53-141

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1550-1610
Material	Steel
Thread Size	1.250-18
Style	2
Prop 65	NO
Fits Tube Diameter	3.500
Involute	N
Fits Tube Wall	.095
Butt Diameter	3.234
Bearing Diameter (C) In.	1.771
Bearing Diameter (Max)	1.7717
Spline End To Weld (K) In.	4.281
Spline Length (L) In	2.000
Bearing Diameter (Min)	1.7712
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.188
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	3.188
Number of Splines	10
Spline O.D.	1.750
Country of Origin	US
Condition	New
