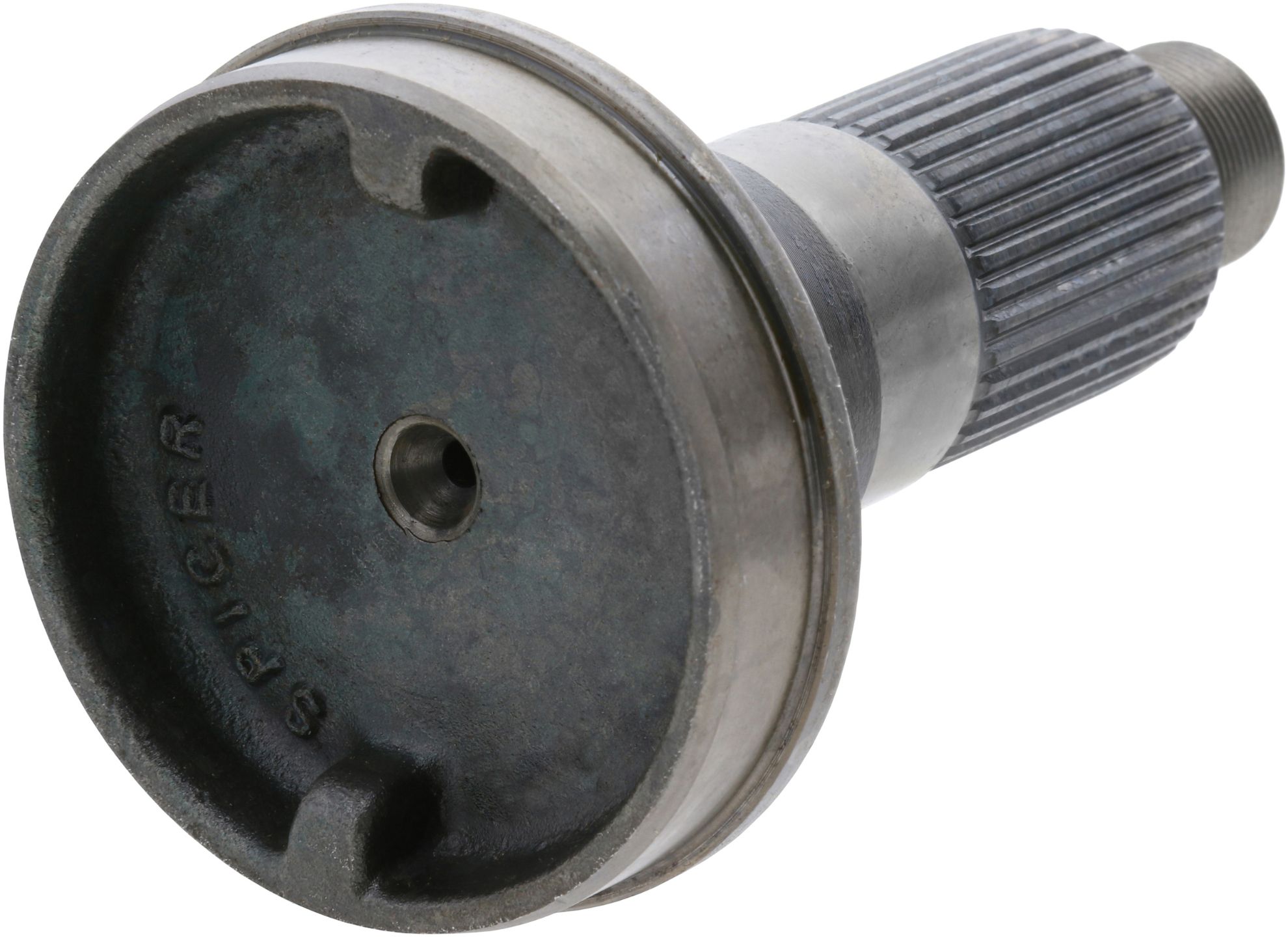

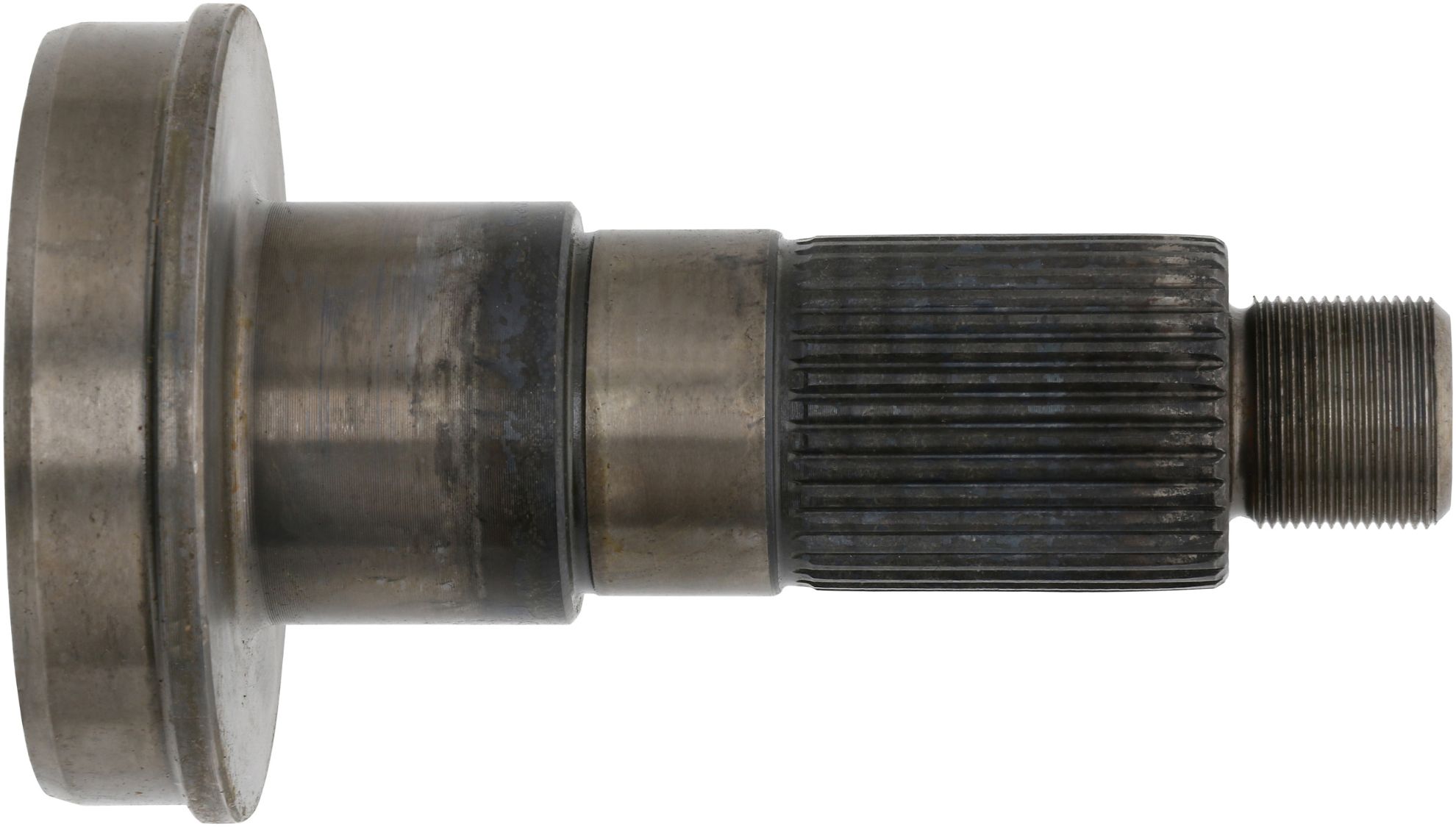

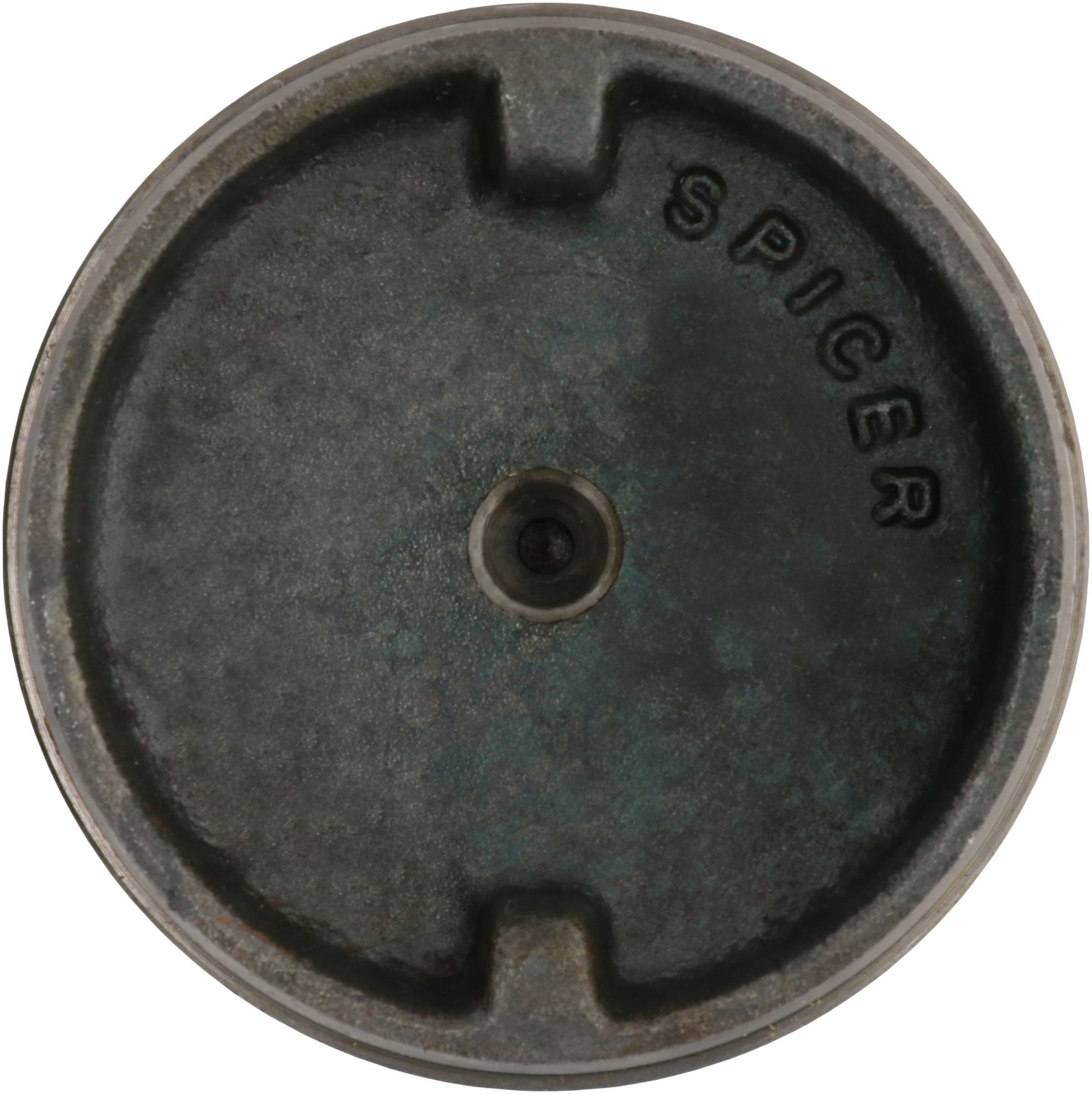

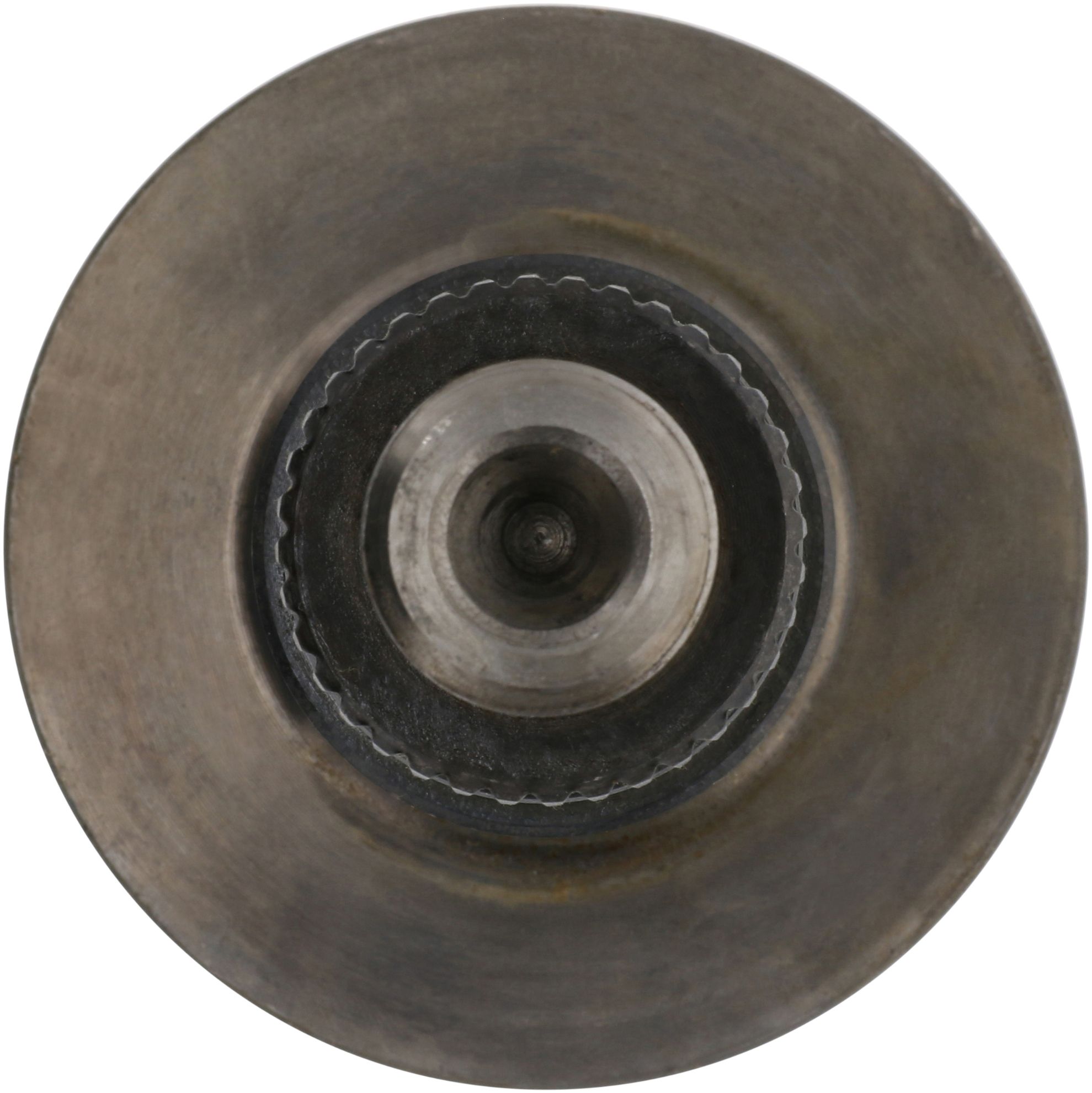

Spicer Drive Shaft Midship Stub Shaft - 5023905

Name: Spicer Drive Shaft Midship Stub Shaft - 5023905
SKU: 5023905
Availability: InStock

MIDSHIP TUBE SHAFT

Manufacturer: Spicer

Manufacturer part number: 5023905

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Thread Size	1.000-20
Style	2
Prop 65	NO
Spline O.D.	1.543
Bearing Diameter (Max)	1.5748
Spline End To Weld (K) In.	4.375
Spline Length (L) In	1.875
Bearing Diameter (Min)	1.5743
Shoulder Diameter (B) In.	1.812
Shoulder Length (G) In.	1.409
Spline End To Brg Shoulder (Y)	2.768
Bearing Diameter (C) In.	1.574
Butt Diameter	3.334
Fits Tube Wall	0.083
Involute	Y
Fits Tube Diameter	3.5
Number of Splines	36
Country of Origin	US
Condition	New
