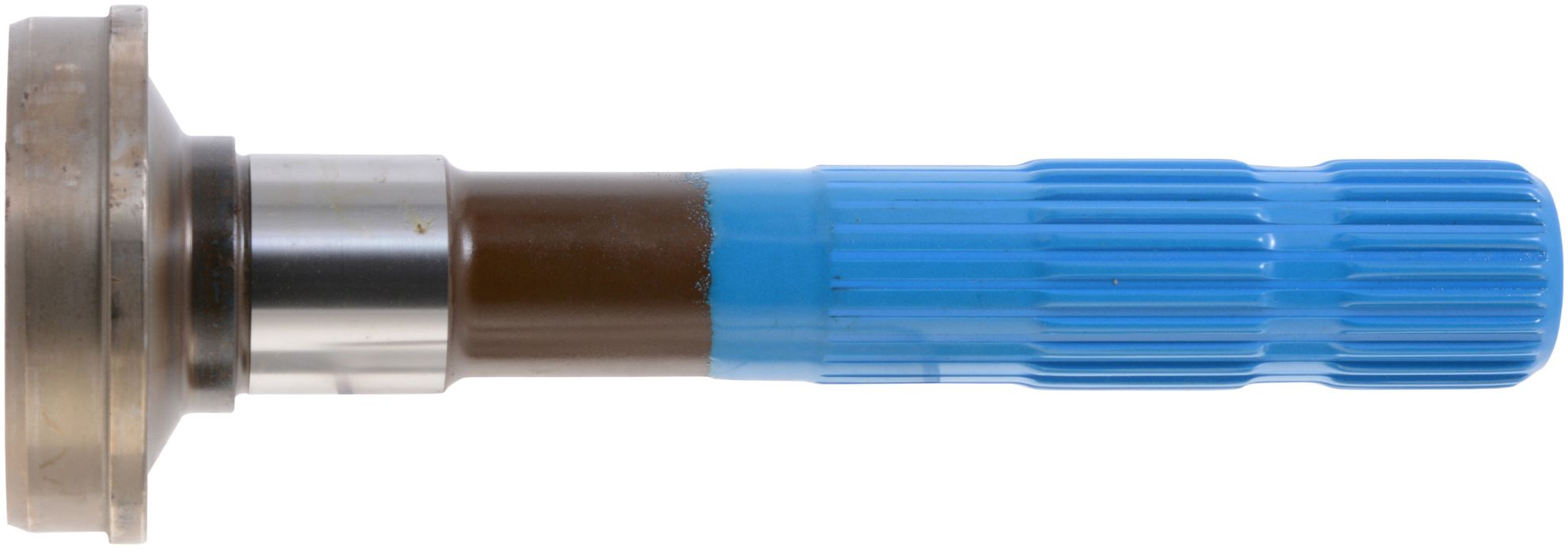

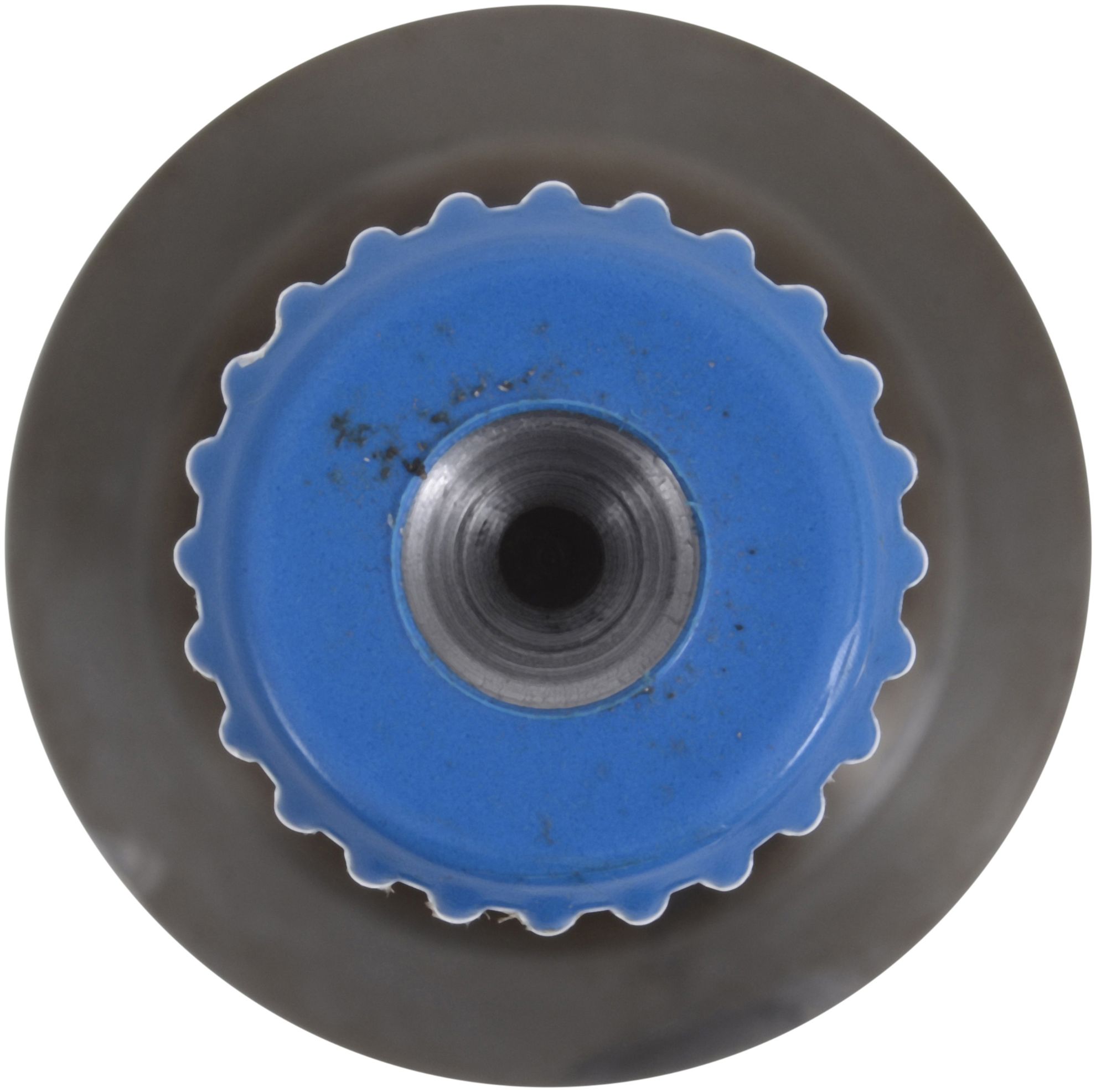

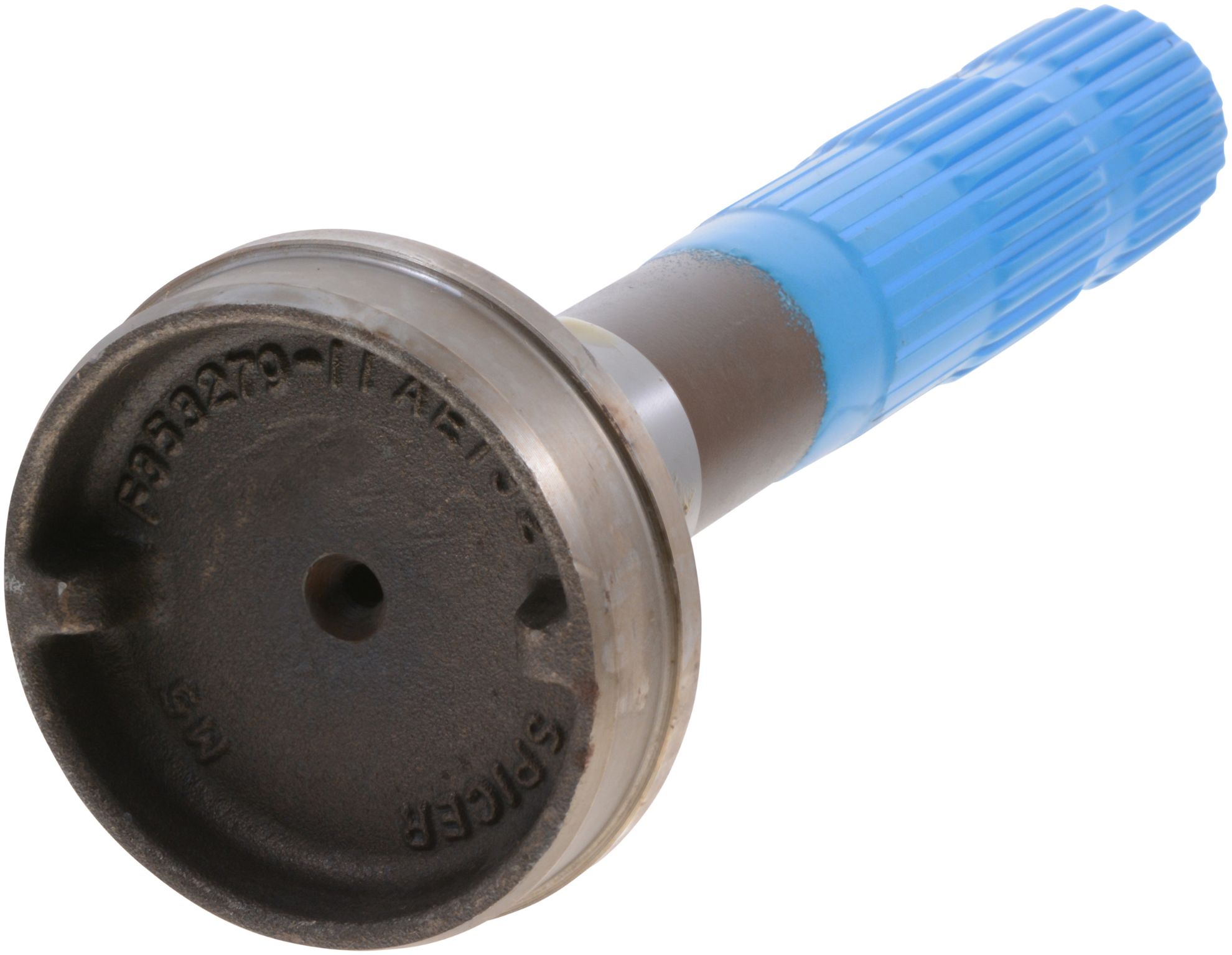

Spicer Drive Shaft Midship Stub Shaft - 55-53-51

Name: Spicer Drive Shaft Midship Stub Shaft - 55-53-51
SKU: 55-53-51
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 55-53-51

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL55
Material	Steel
Style	2
Prop 65	NO
Spline O.D.	1.5620
Fits Tube Diameter	3.5
Involute	Y
Fits Tube Wall	0.083
Butt Diameter	3.345
Bearing Diameter (C) In.	1.575
Bearing Diameter (Max)	1.5752
Spline End To Weld (K) In.	9.500
Spline Length (L) In	3.500
Bearing Diameter (Min)	1.5747
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	1.803
Shoulder Length (G) In.	0.555
Spline End To Brg Shoulder (Y)	8.704
Bearing Diameter Radius	0.161
Number of Splines	23/24 I
Country of Origin	MX
Condition	New
