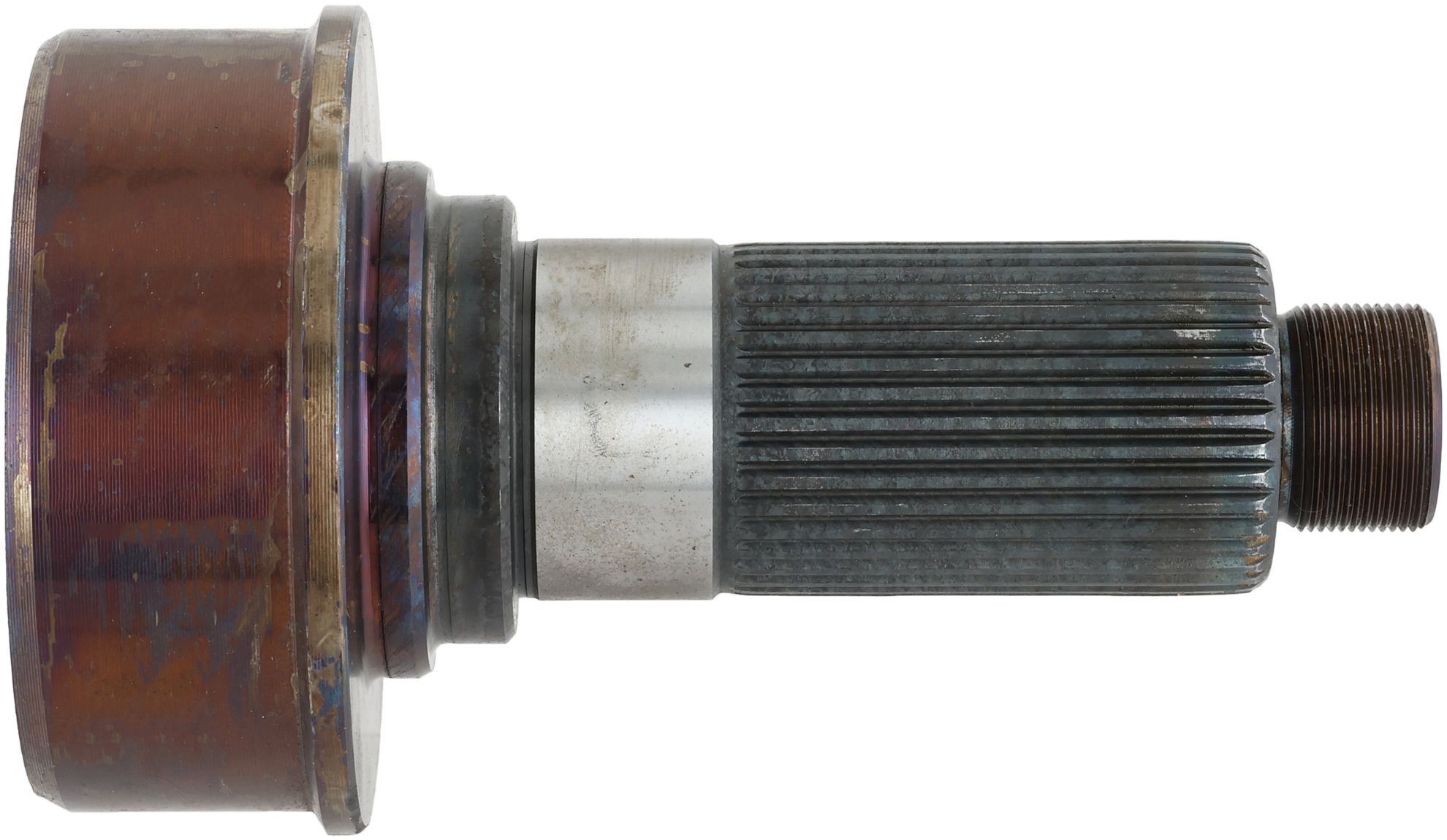

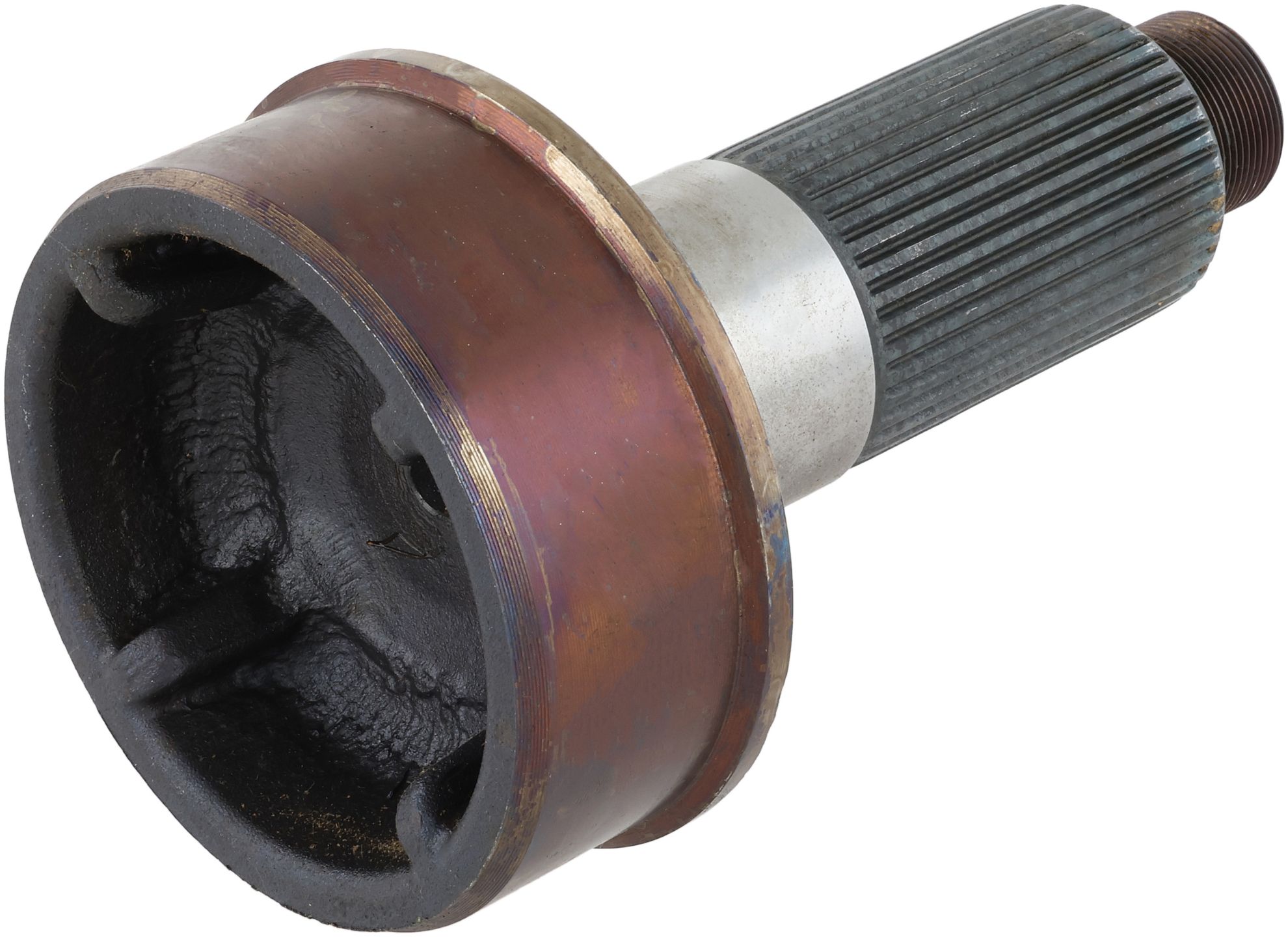

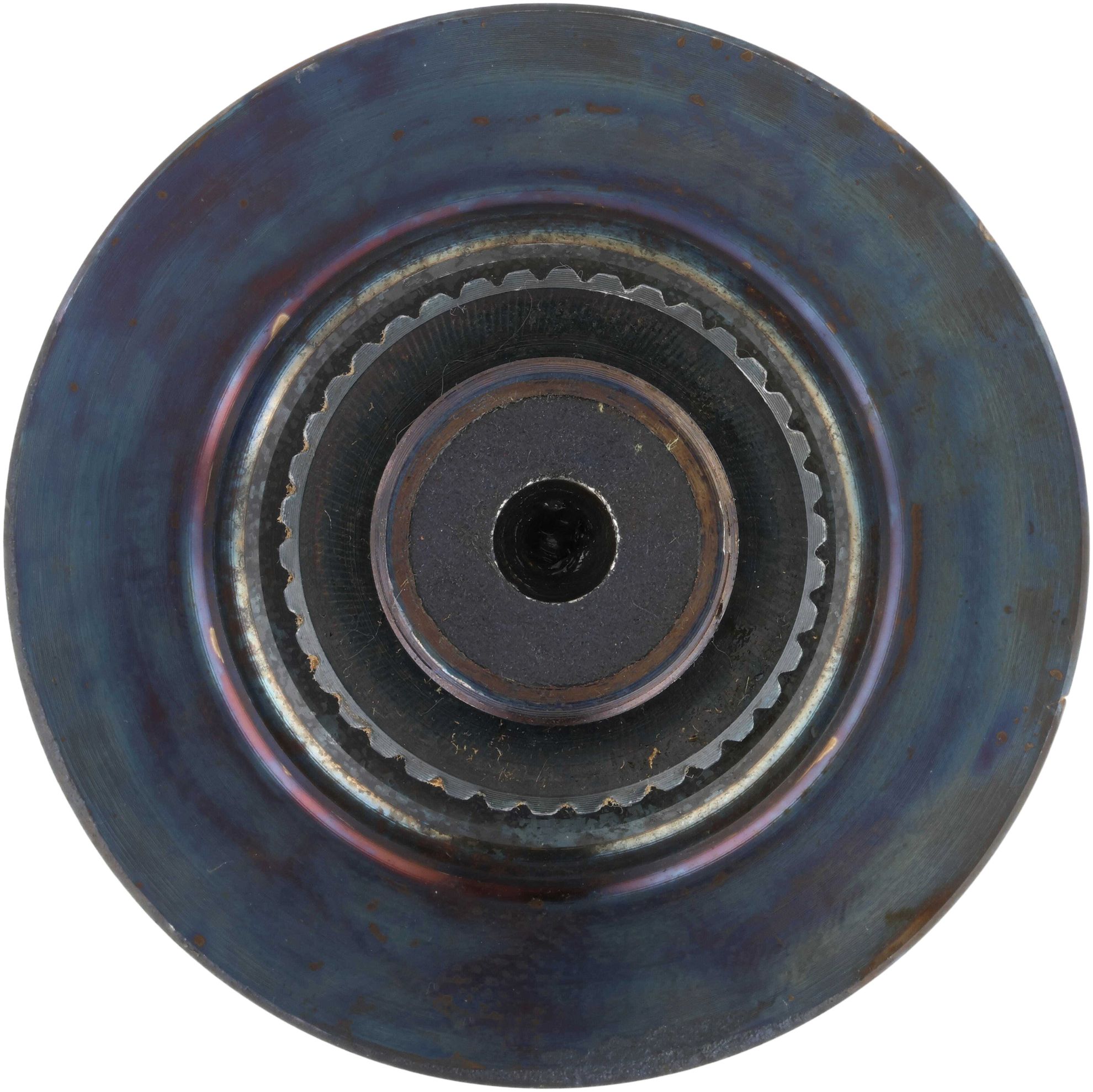

Spicer Drive Shaft Midship Stub Shaft - 6-53-421

Name: Spicer Drive Shaft Midship Stub Shaft - 6-53-421
SKU: 6-53-421
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 6-53-421

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Thread Size	1.250-18
Style	2
Prop 65	NO
Spline O.D.	1.950
Fits Tube Diameter	4.562
Involute	Y
Fits Tube Wall	.134
Butt Diameter	4.243
Bearing Diameter (C) In.	1.968
Bearing Diameter (Max)	1.9685
Spline End To Weld (K) In.	5.156
Spline Length (L) In	2.844
Bearing Diameter (Min)	1.968
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.438
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	4.062
Number of Splines	38 I
Country of Origin	US
Condition	New
