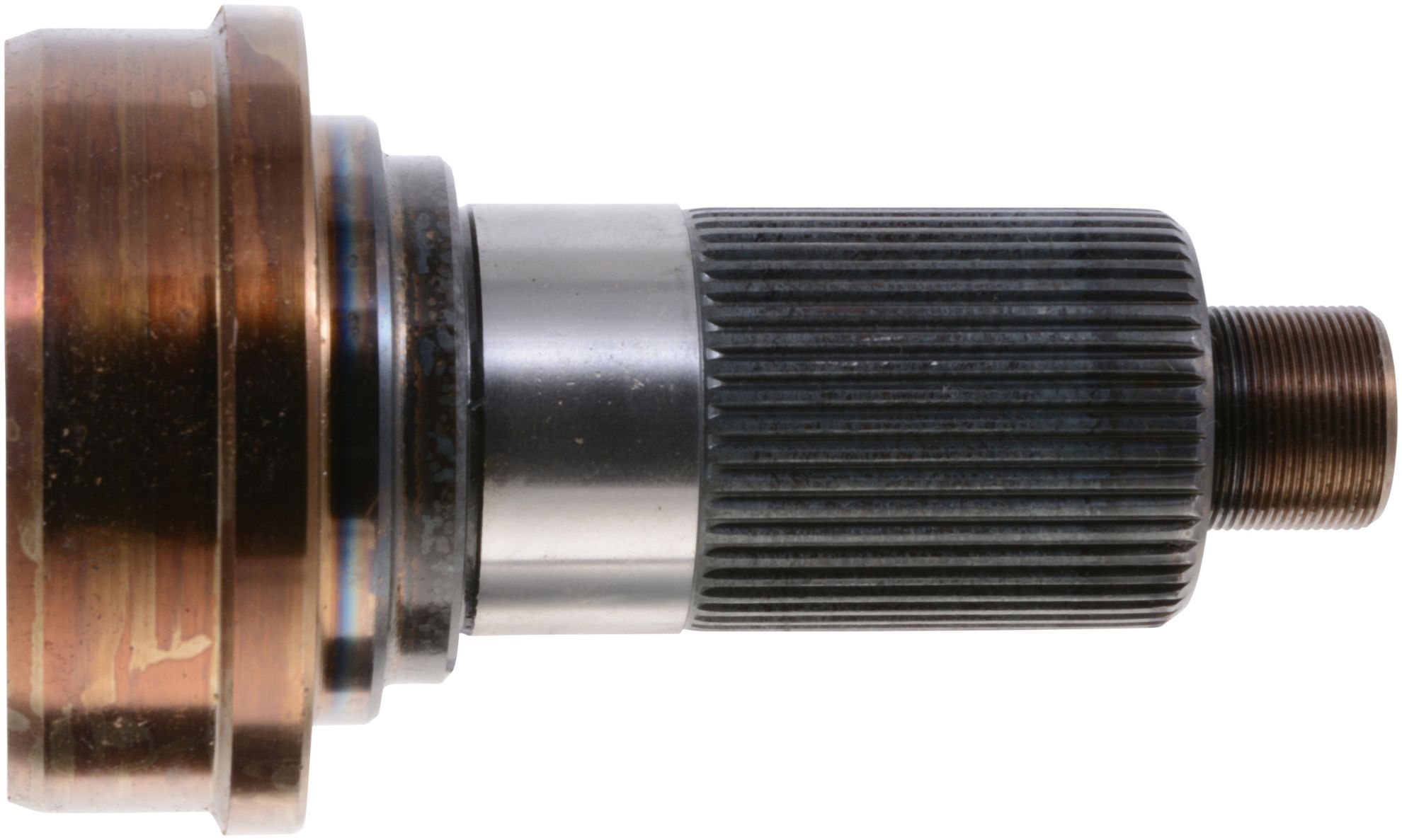

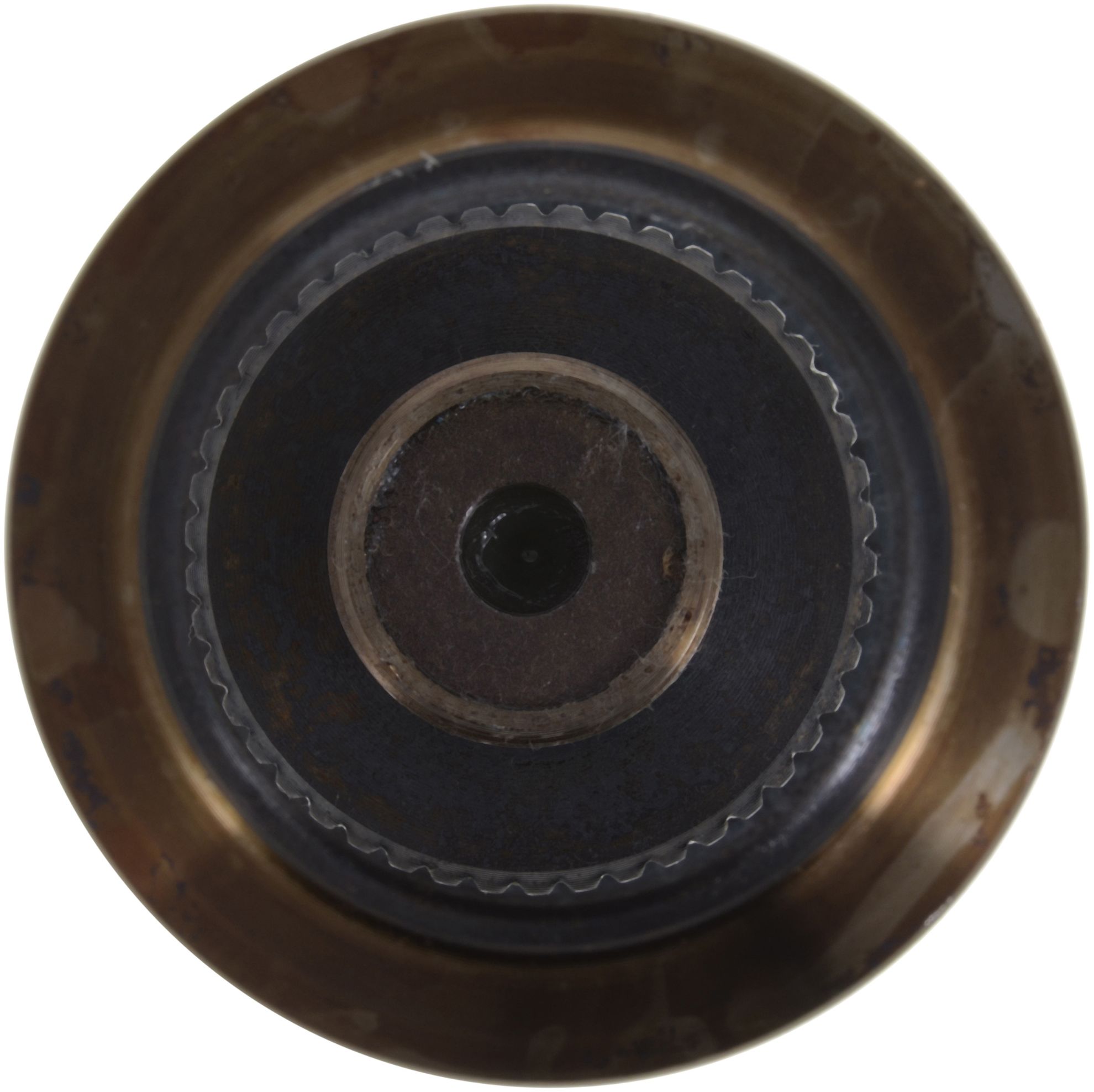

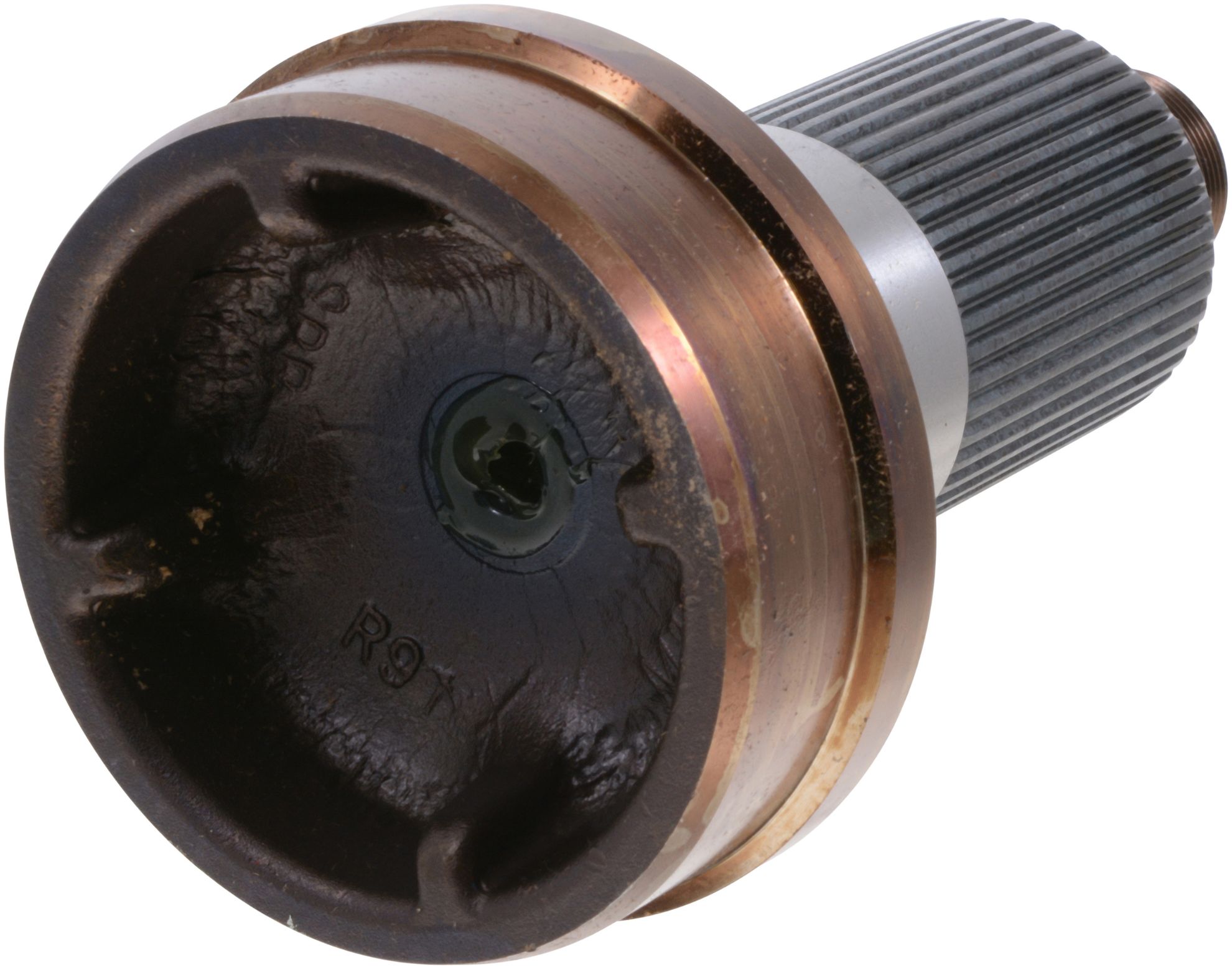

Spicer Drive Shaft Midship Stub Shaft - 6.5-53-171

Name: Spicer Drive Shaft Midship Stub Shaft - 6.5-53-171
SKU: 6.5-53-171
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 6.5-53-171

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	1810
Material	Steel
Thread Size	1.250-18
Style	2
Prop 65	NO
Spline O.D.	2.350
Fits Tube Diameter	4.500
Involute	Y
Fits Tube Wall	.134
Butt Diameter	4.242
Bearing Diameter (C) In.	2.362
Bearing Diameter (Max)	2.3622
Spline End To Weld (K) In.	5.312
Spline Length (L) In	2.625
Bearing Diameter (Min)	2.3617
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.875
Shoulder Length (G) In.	.812
Spline End To Brg Shoulder (Y)	4.000
Number of Splines	46 I
Country of Origin	IN
Condition	New
