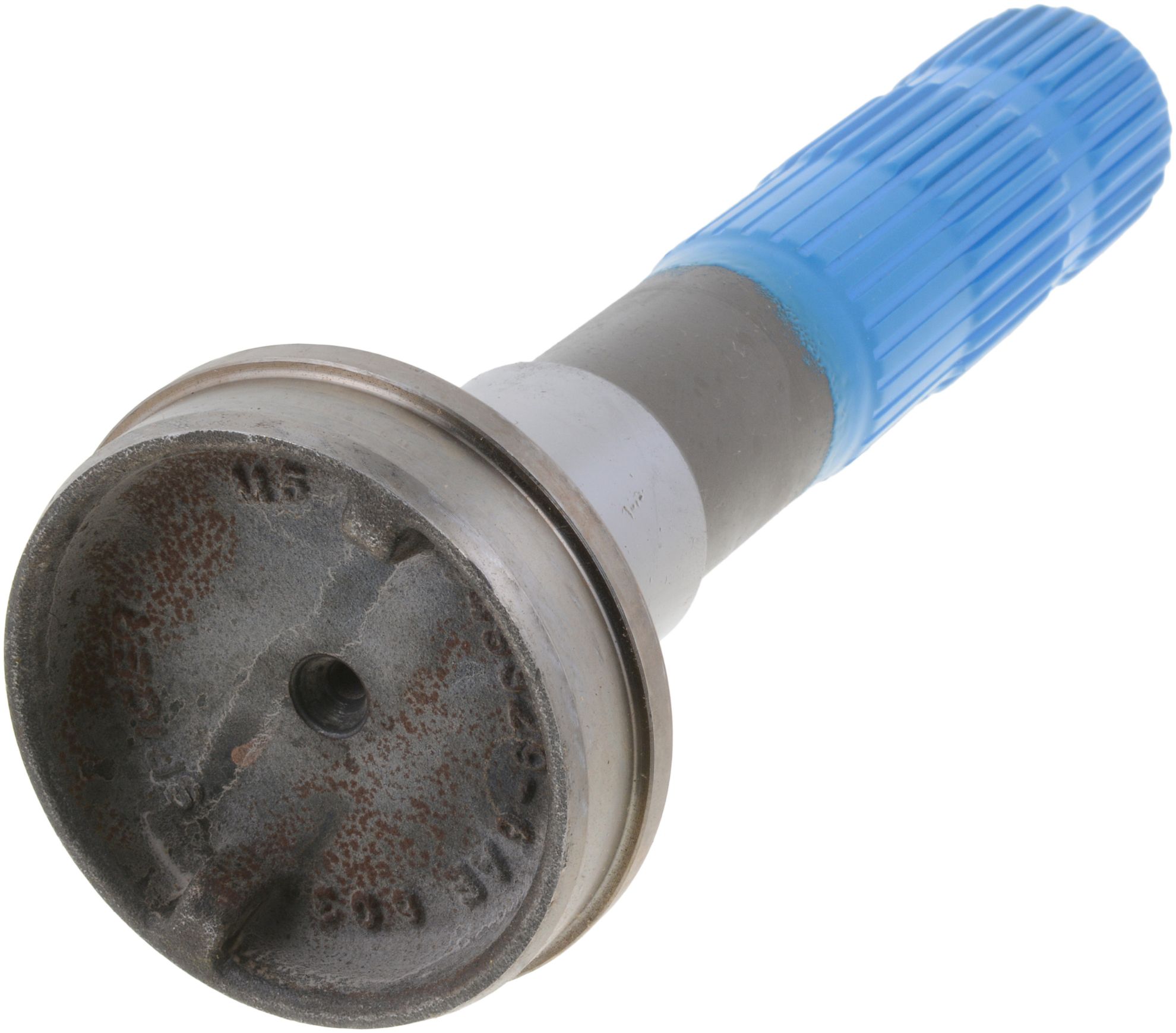

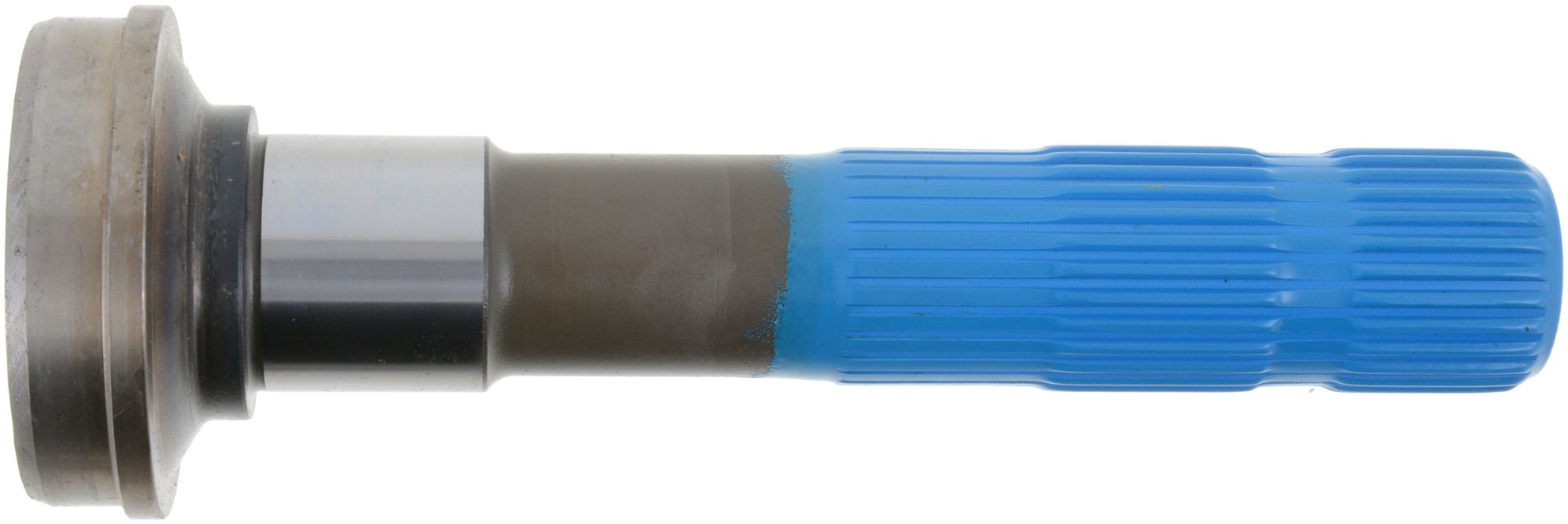

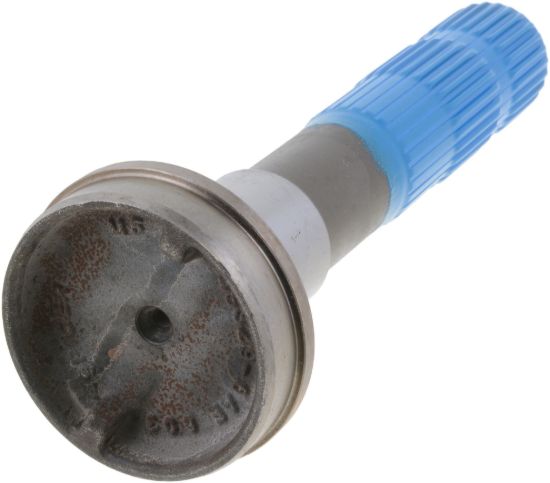

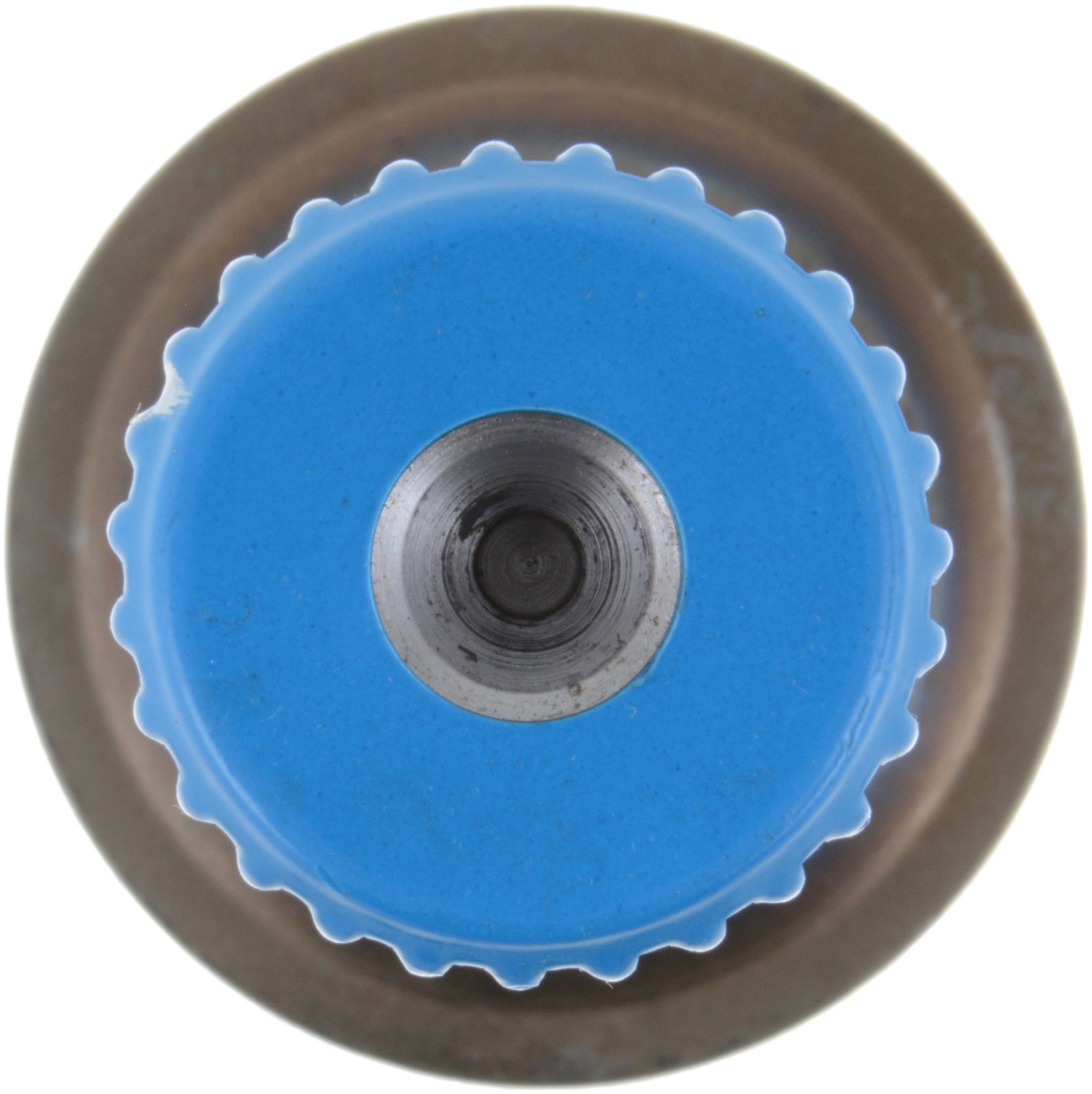

Spicer Drive Shaft Midship Stub Shaft - 70-53-51

Name: Spicer Drive Shaft Midship Stub Shaft - 70-53-51
SKU: 70-53-51
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 70-53-51

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Style	2
Spline O.D.	1.7520
Fits Tube Diameter	3.5
Involute	Y
Fits Tube Wall	0.095
Butt Diameter	3.321
Bearing Diameter (C) In.	1.772
Bearing Diameter (Max)	1.772
Spline End To Weld (K) In.	9.693
Spline Length (L) In	3.500
Bearing Diameter (Min)	1.7716
For Use With	Slip Yoke
Shoulder Diameter (B) In.	2.154
Shoulder Length (G) In.	0.554
Spline End To Brg Shoulder (Y)	8.902
Bearing Diameter Length	1.572
Bearing Diameter Radius	0.0402
Number of Splines	26/27 I
Prop 65	NO
Country of Origin	MX
Condition	New
