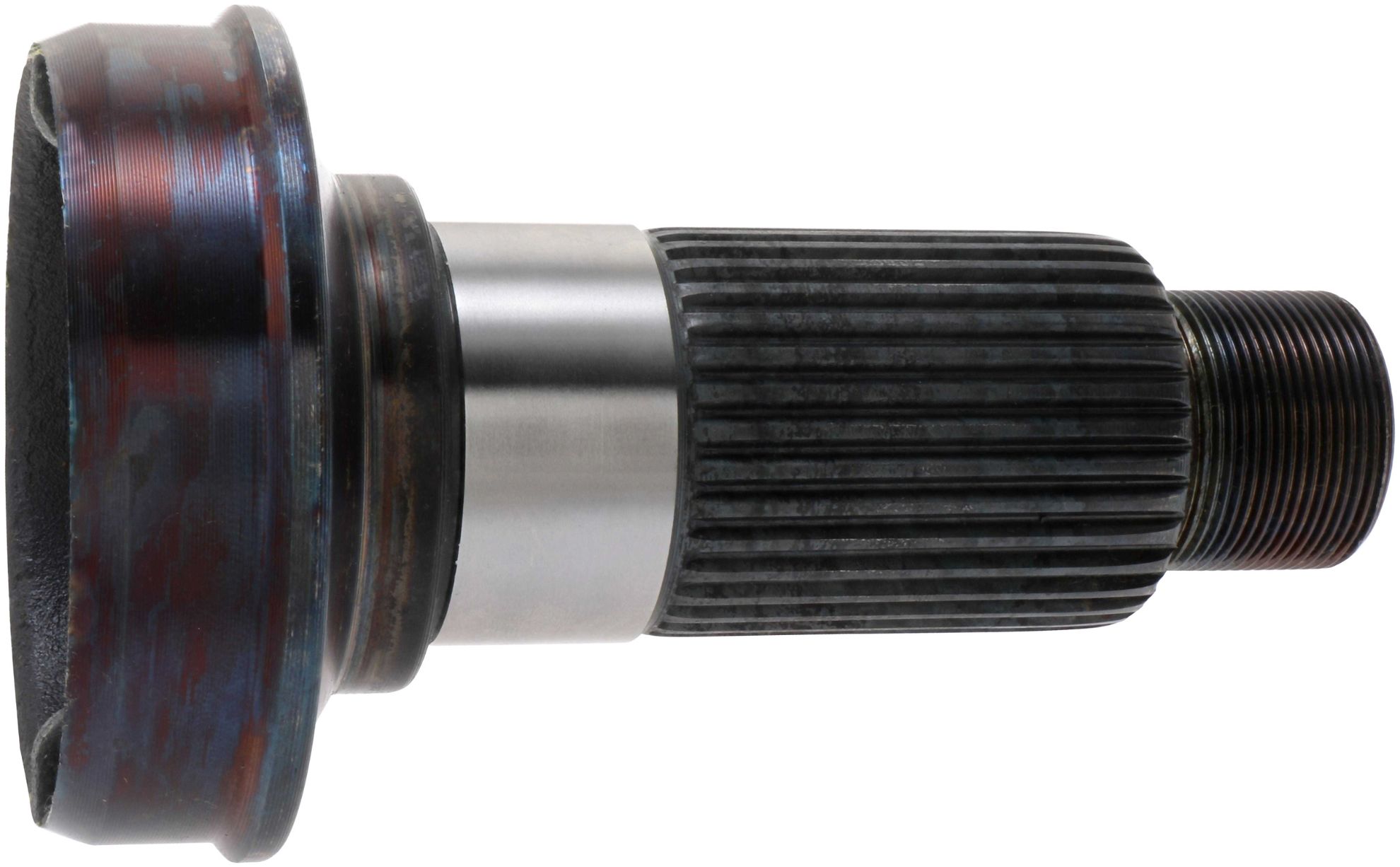

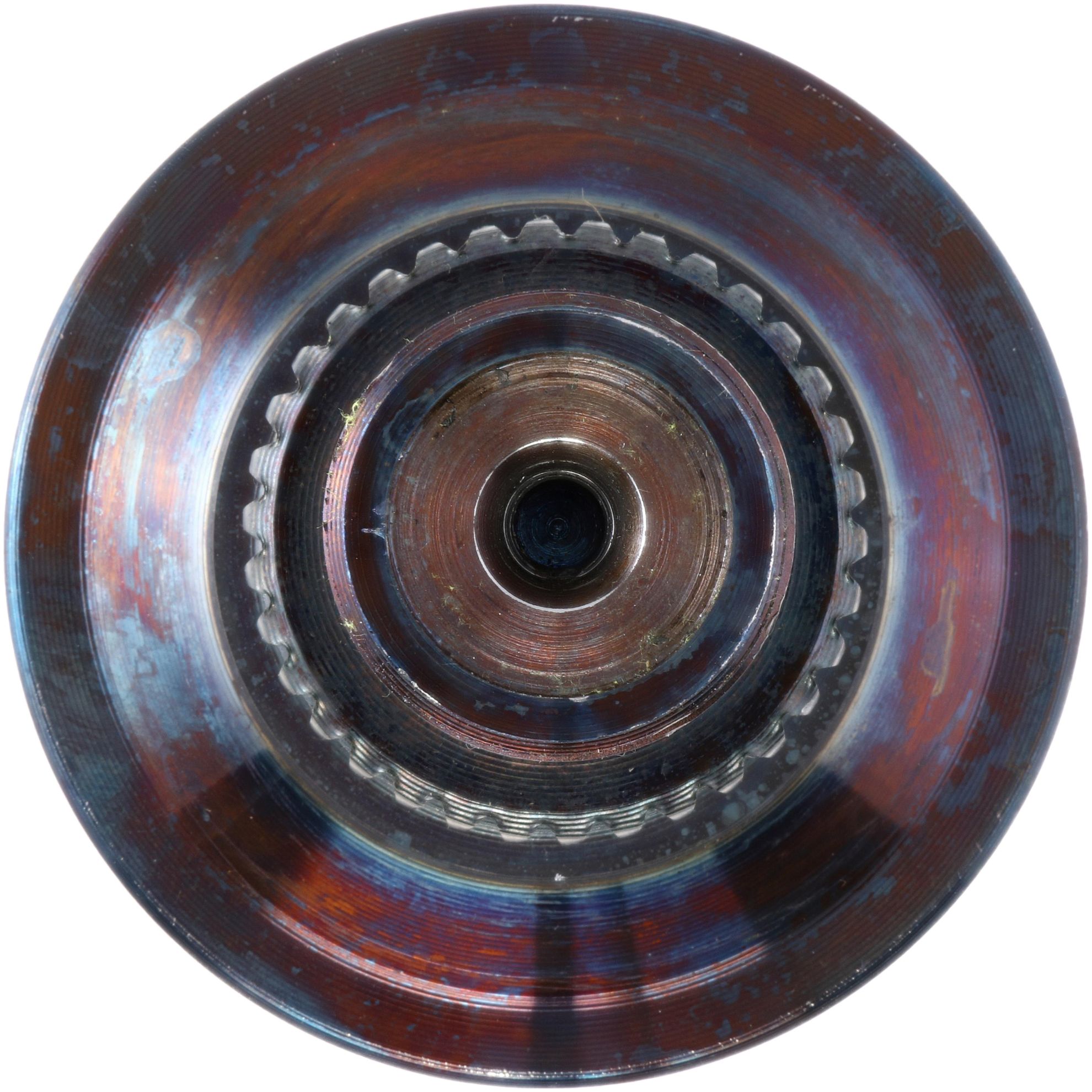

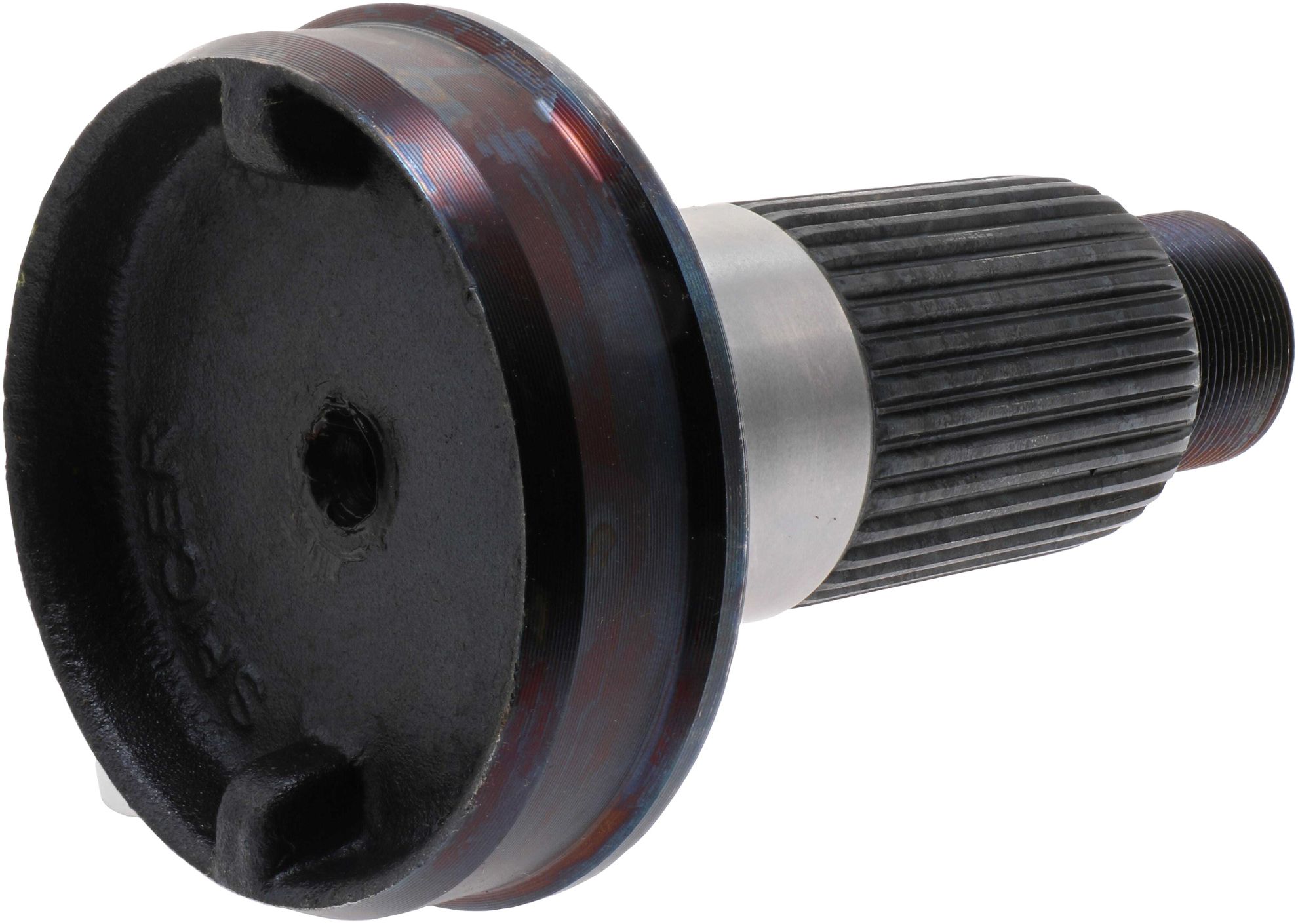

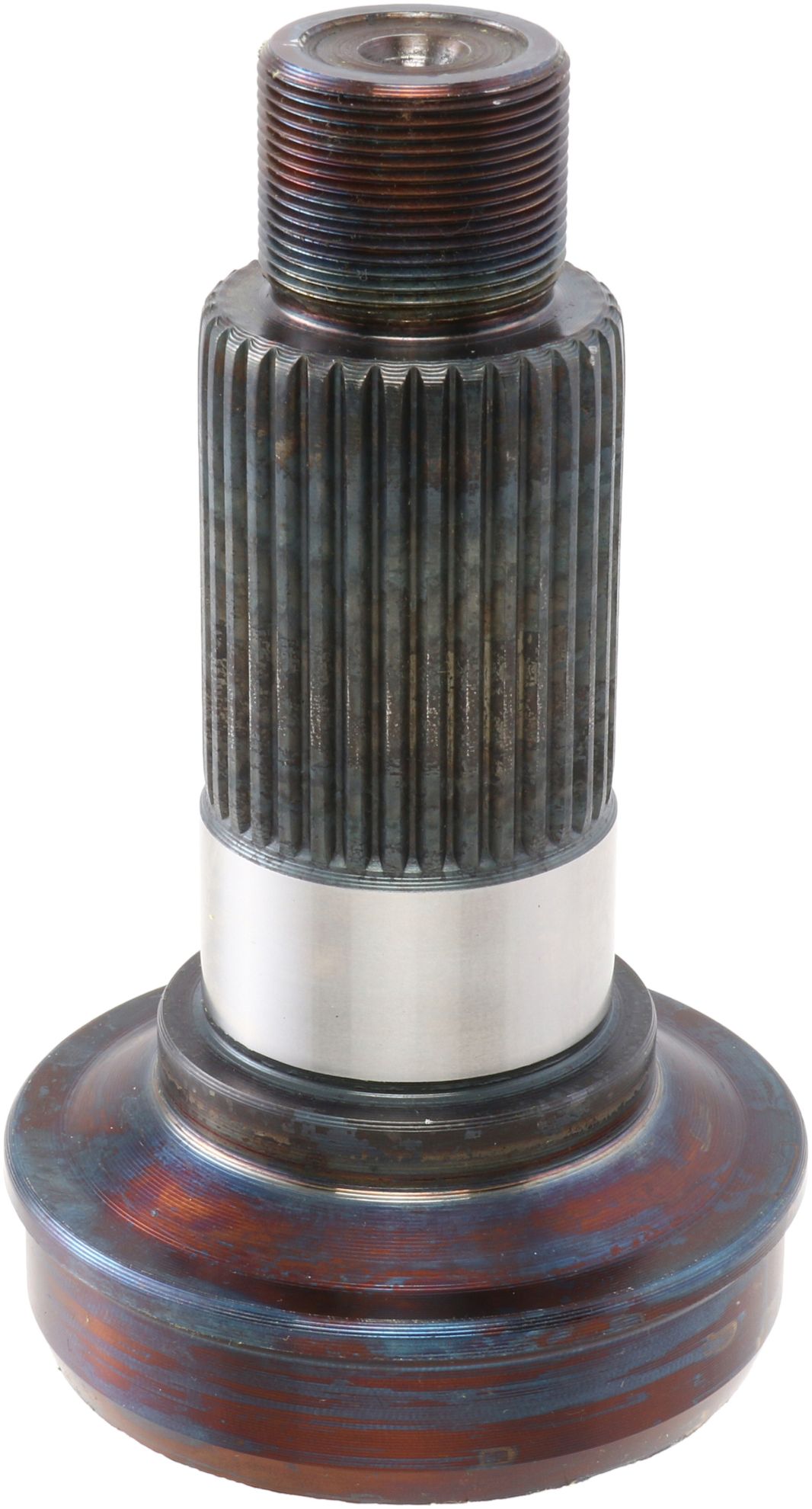

Spicer Drive Shaft Midship Stub Shaft - 70-53-61

Name: Spicer Drive Shaft Midship Stub Shaft - 70-53-61
SKU: 70-53-61
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 70-53-61

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Thread Size	1.250-18
Style	2
Fits Tube Diameter	3.500
Involute	Y
Fits Tube Wall	.095
Butt Diameter	3.321
Bearing Diameter (C) In.	1.771
Bearing Diameter (Max)	1.7717
Spline End To Weld (K) In.	5.050
Spline Length (L) In	2.060
Bearing Diameter (Min)	1.7712
For Use With	End Yoke Or Companion Flange
Shoulder Diameter (B) In.	2.153
Shoulder Length (G) In.	.322
Spline End To Brg Shoulder (Y)	3.188
Number of Splines	34 I
Spline O.D.	1.750
Prop 65	NO
Country of Origin	US
Condition	New
