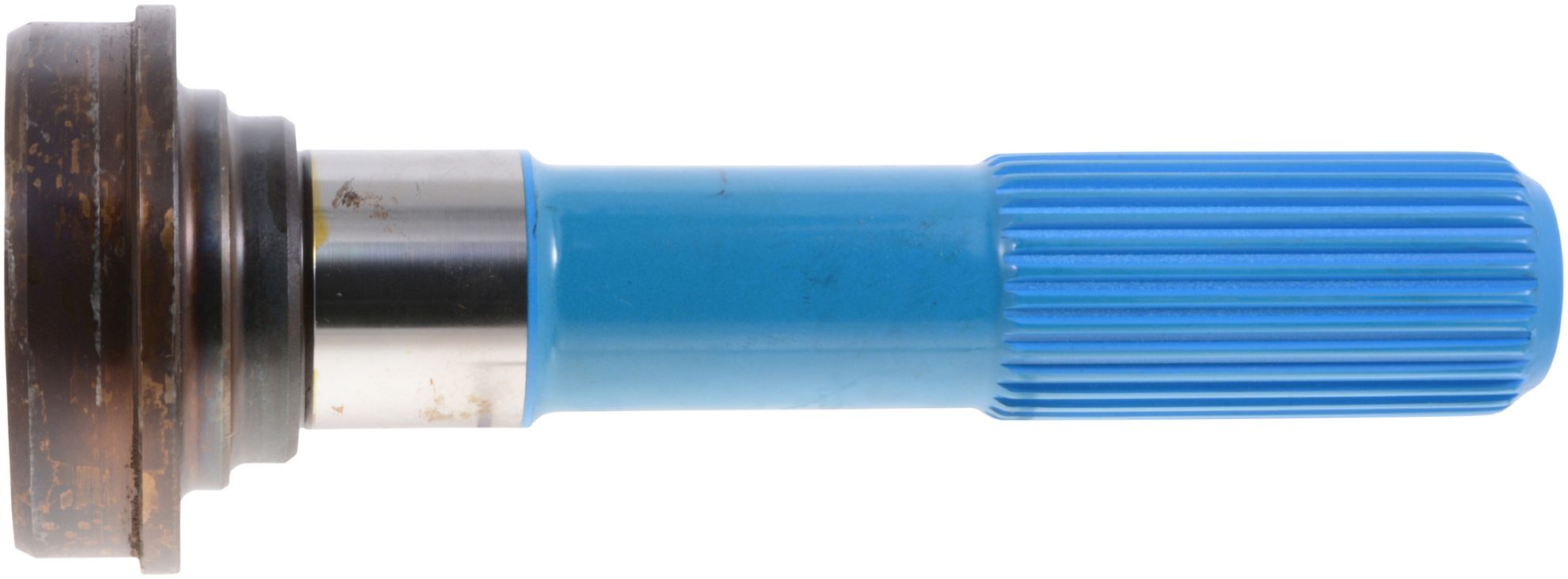

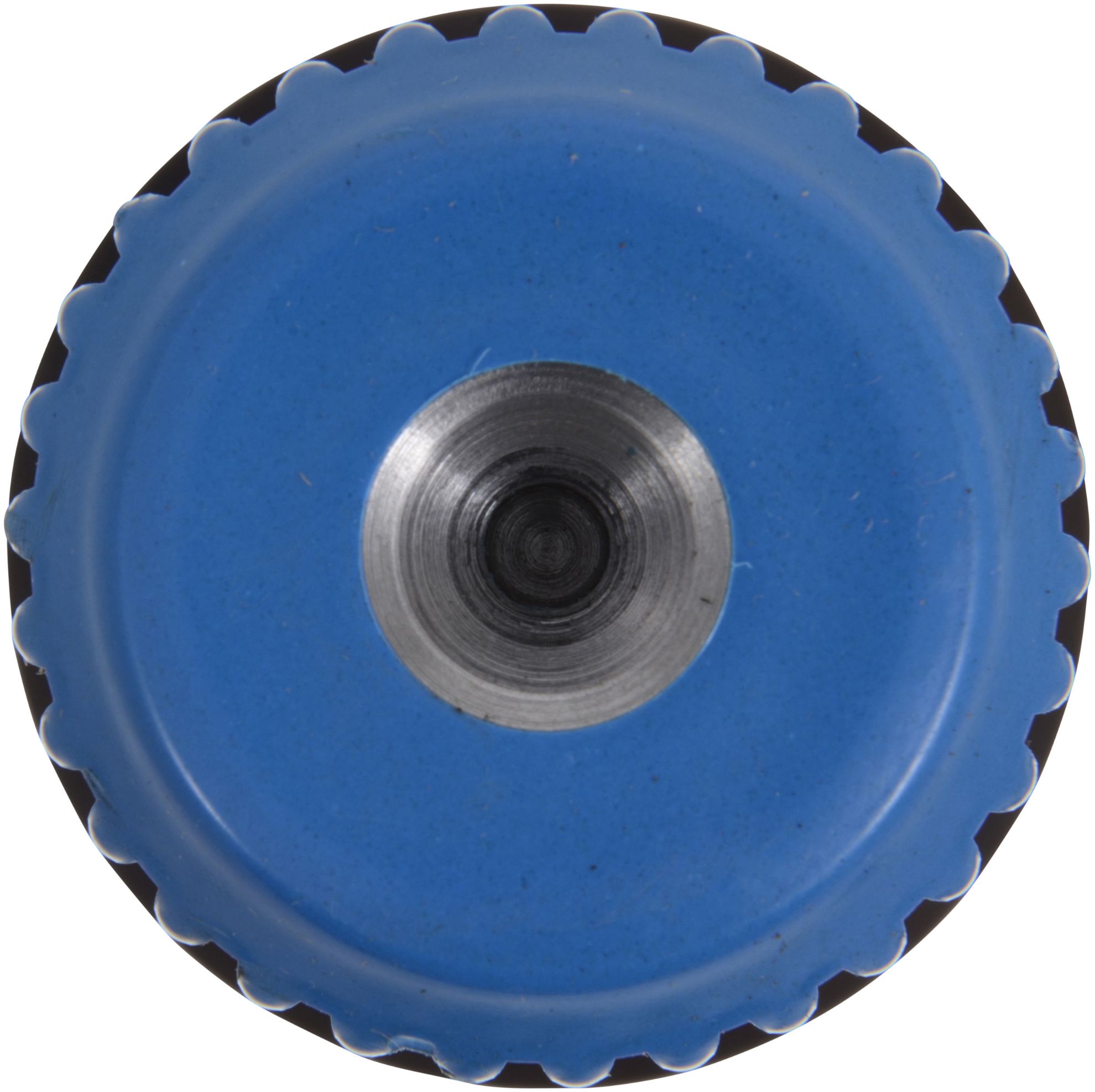

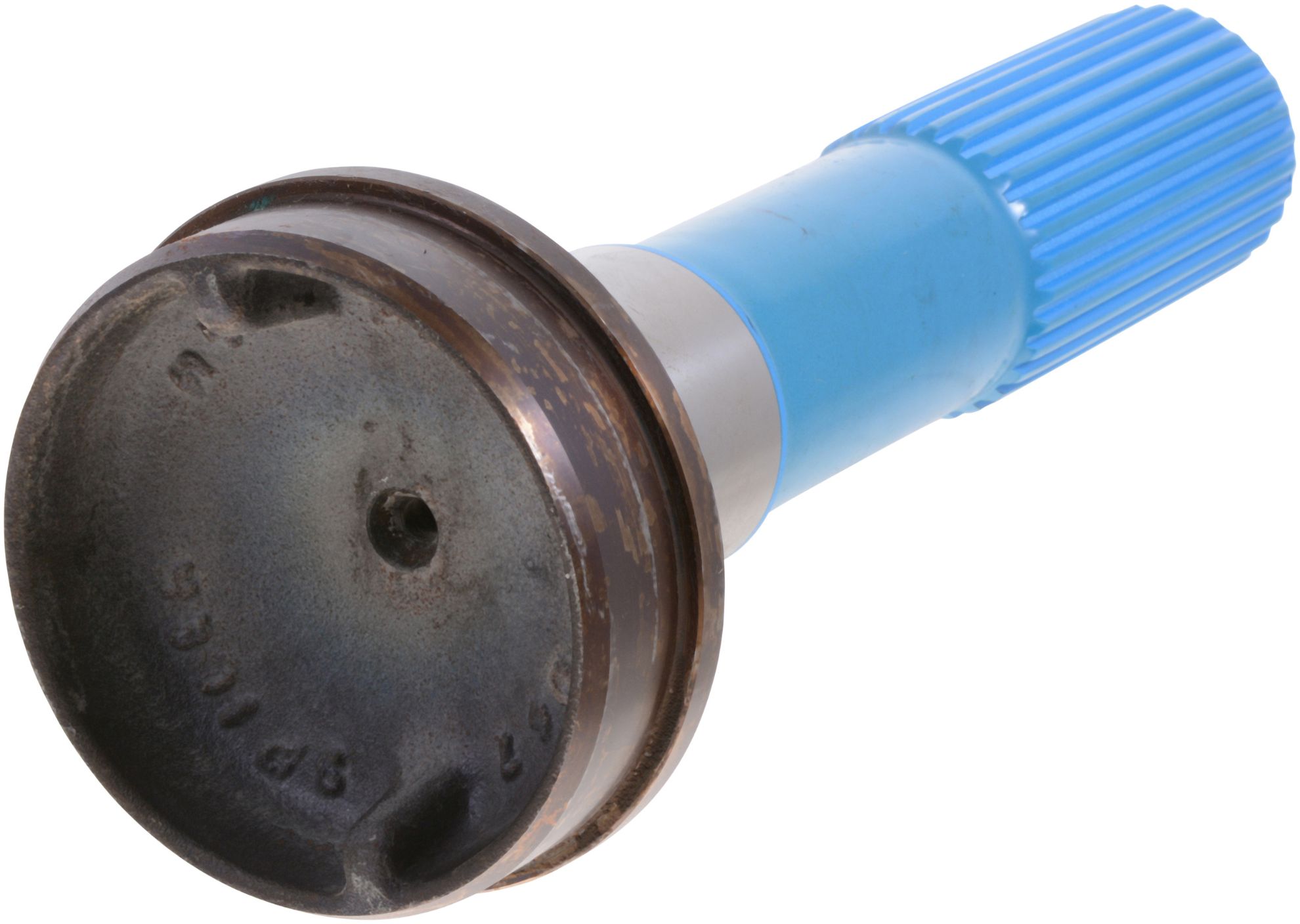

Spicer Drive Shaft Midship Stub Shaft - 90-53-41

Name: Spicer Drive Shaft Midship Stub Shaft - 90-53-41
SKU: 90-53-41
Availability: InStock

DRIVE SHAFT MIDSHIP STUB SHAFT

Manufacturer: Spicer

Manufacturer part number: 90-53-41

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL100
Material	Steel
Style	2
Prop 65	NO
Spline O.D.	1.9370
Fits Tube Diameter	4
Involute	Y
Fits Tube Wall	0.134
Butt Diameter	3.743
Bearing Diameter (C) In.	1.968
Bearing Diameter (Max)	1.9685
Spline End To Weld (K) In.	10.000
Spline Length (L) In	4.000
Bearing Diameter (Min)	1.968
For Use With	Outboard Slip Yoke
Shoulder Diameter (B) In.	2.438
Shoulder Length (G) In.	0.812
Spline End To Brg Shoulder (Y)	8.906
Bearing Diameter Length	1.61
Bearing Diameter Radius	0.19
Number of Splines	30 I
Country of Origin	MX
Condition	New
