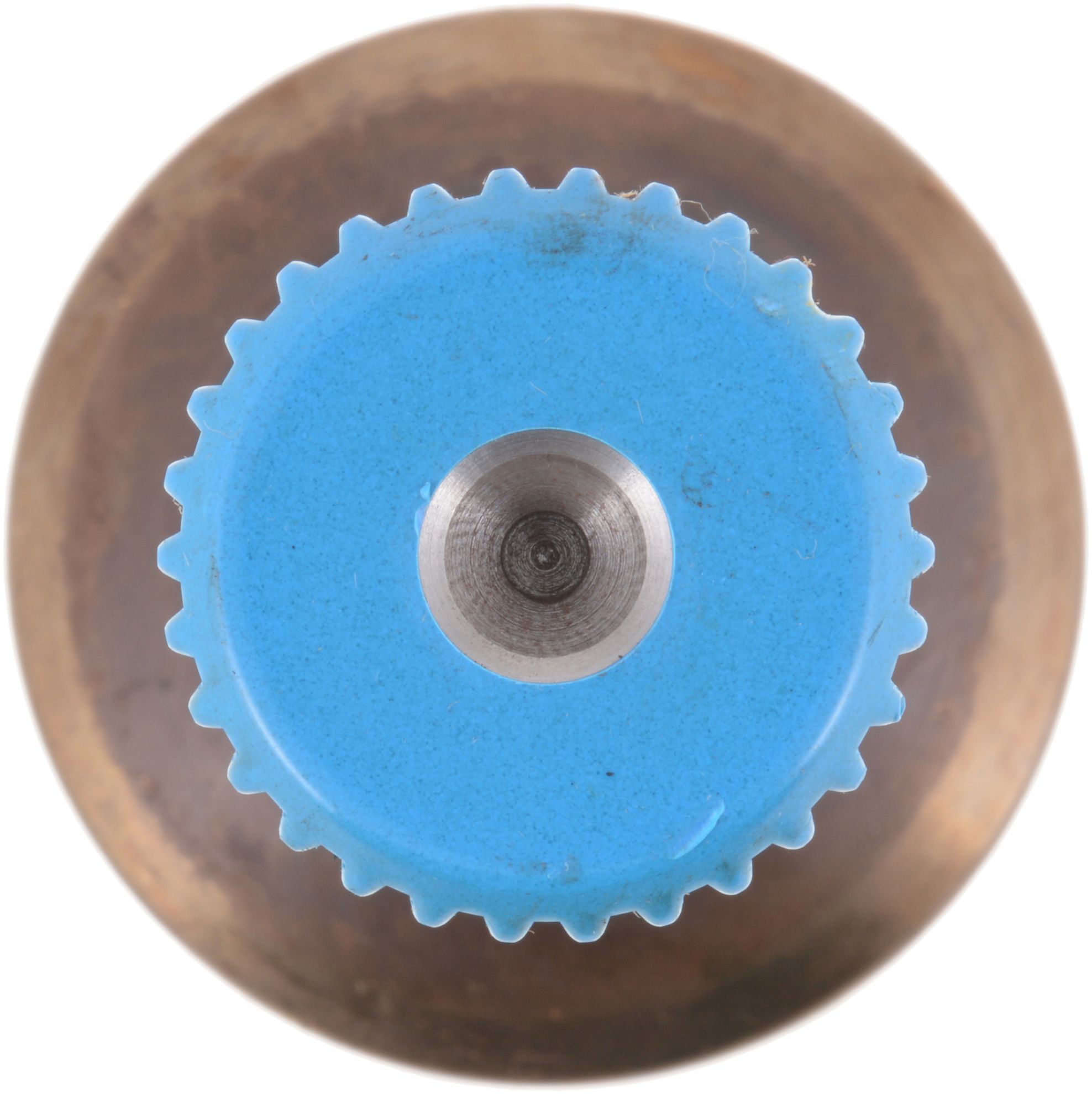

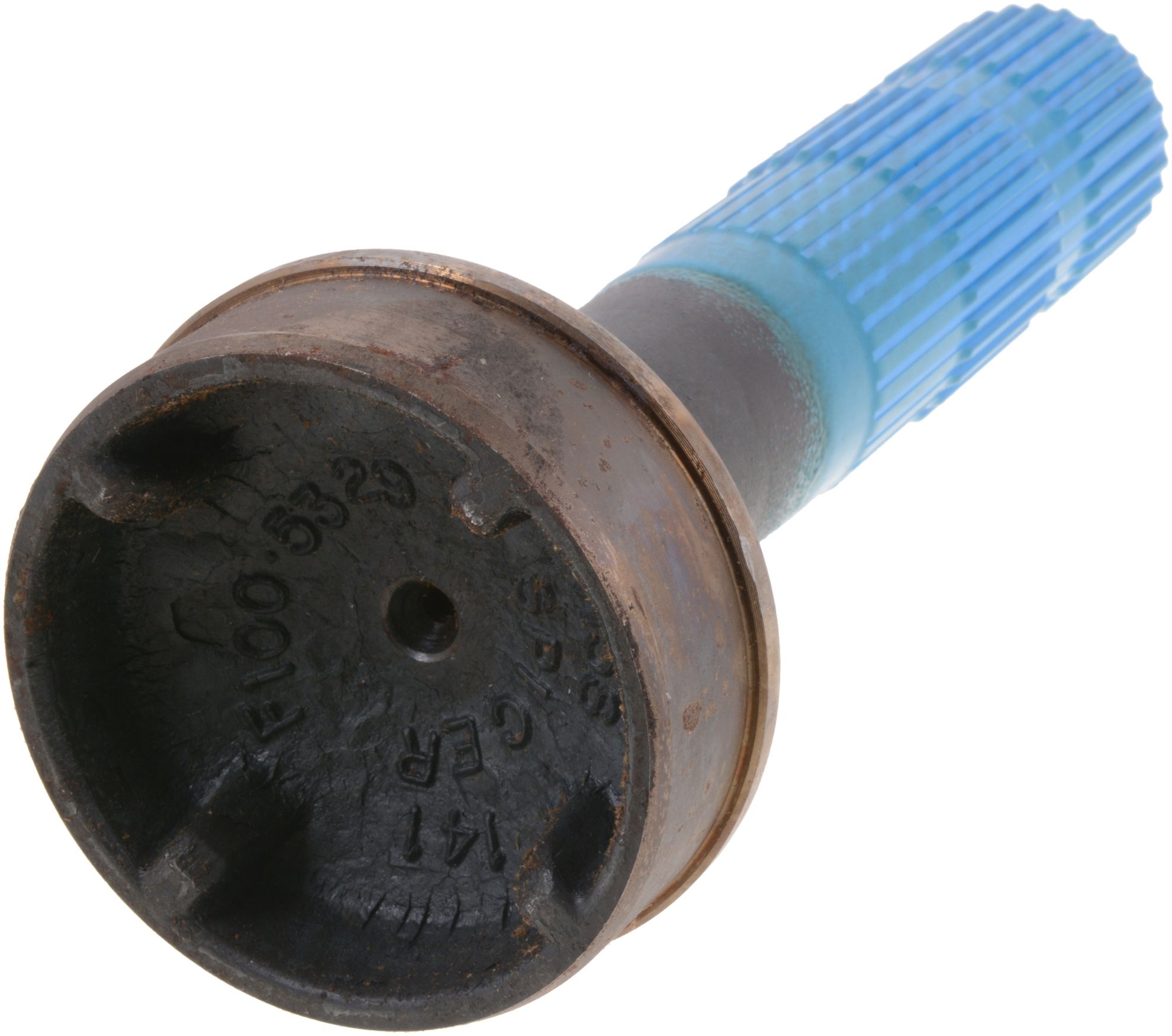

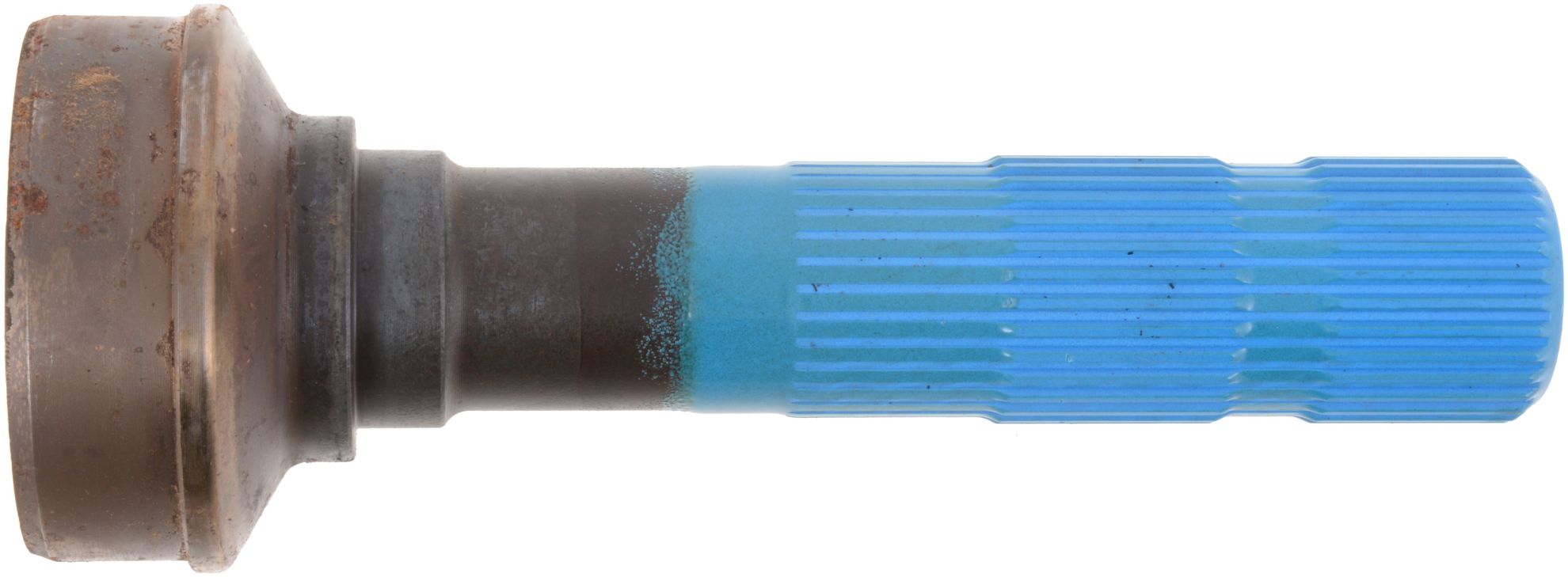

Spicer Drive Shaft Stub Shaft - 100-40-41X

Name: Spicer Drive Shaft Stub Shaft - 100-40-41X
SKU: 100-40-41X
Availability: InStock

Drive Shaft Stub Shaft - 4.000 x 0.095 Tubing

Manufacturer: Spicer

Manufacturer part number: 100-40-41X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Products specifications

Attribute name	Attribute value
Series	SPL100
Material	Steel
Spline Count	29/30 I
Type	I
Involute Spline	Y
Major Diameter	1.937
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Prop 65	Yes
Fits Tube Diameter	4.000
Number of Splines Based On	30
Butt Diameter	3.821
End Of Spline To Radius (R)	7.831
End Of Spline To Weld (K)	9.590
Fit Tube Wall Thickness	.095
Length Of Spline (L)	4.000
Neck Diameter (Max)	1.734
Glidecote Spline	Y
Country of Origin	MX
Condition	New
