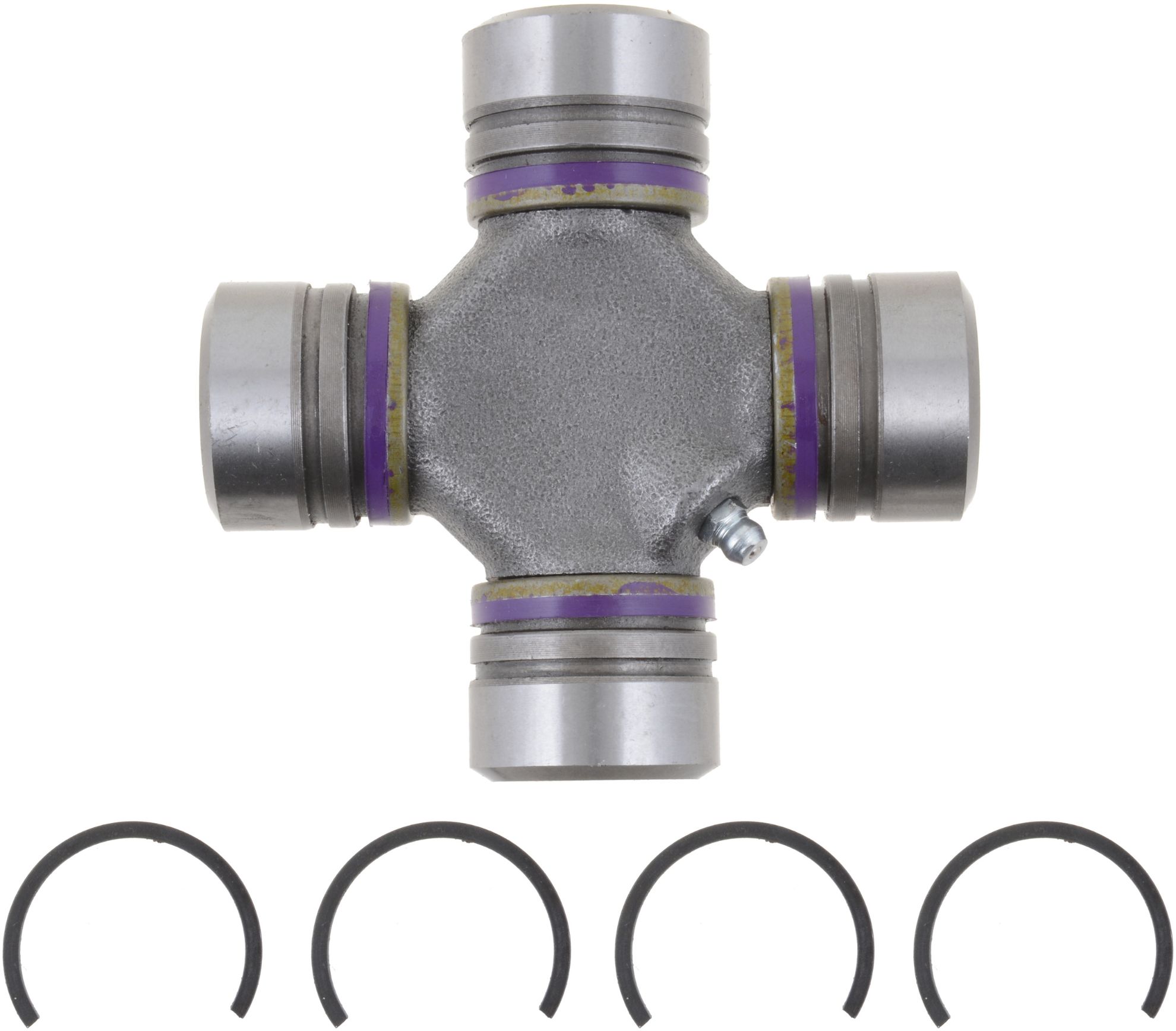

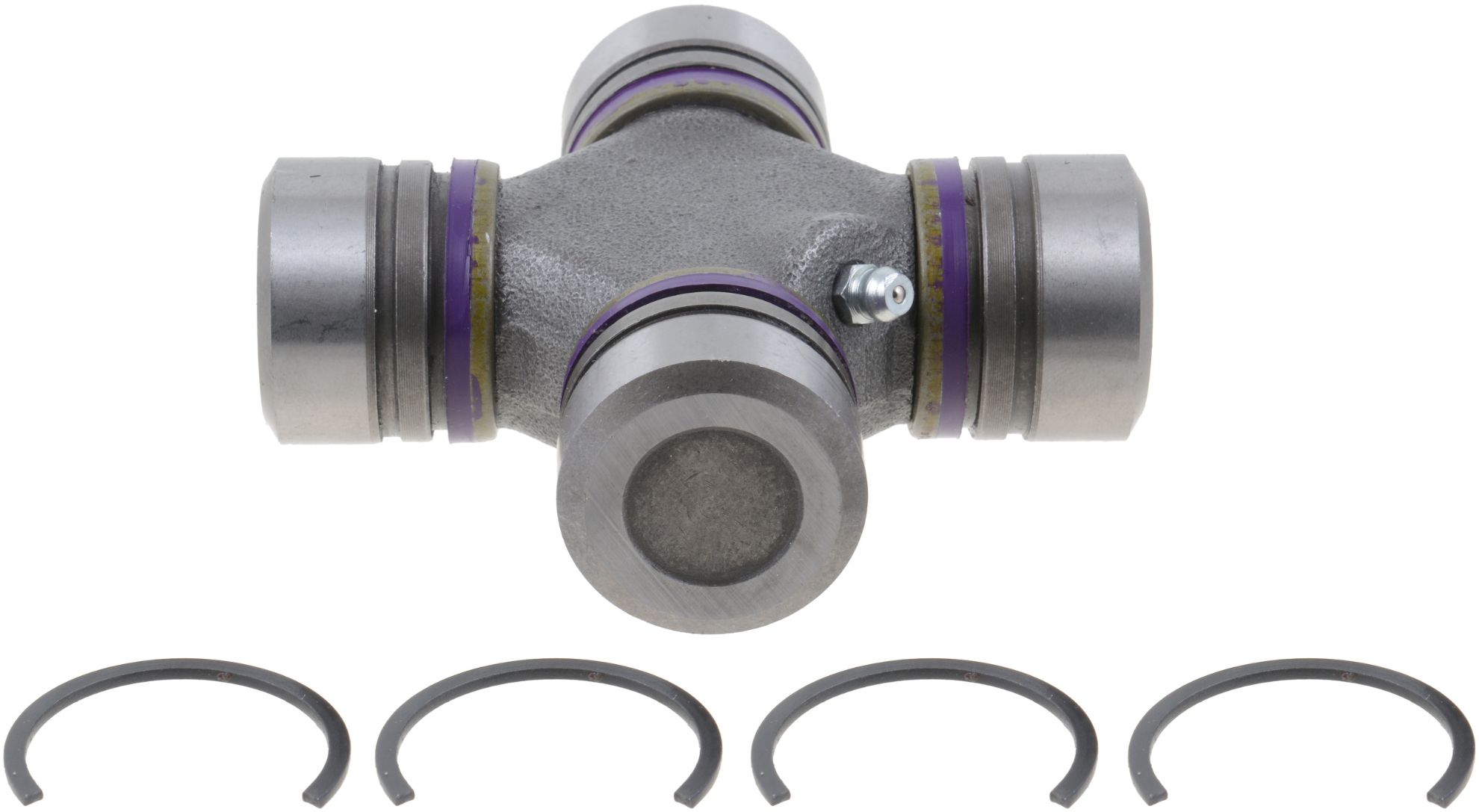

Spicer Select Drive Axle Shaft Universal Joint - 25-332X

Name: Spicer Select Drive Axle Shaft Universal Joint - 25-332X
SKU: 25-332X
Availability: InStock

Universal Joint Greaseable 1480 Series ISR WJ

Manufacturer: Spicer Select

Manufacturer part number: 25-332X

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

For the lifespan of your vehicle, trust Spicer Select. Built with Integrity. Engineered by Dana.

Application: Chevrolet - 1977-86 K30, 1987-88 V30, 1989-91 V3500, Dodge - 1973-74 W300 Pickup, 1975-80 W200, 1975-80 W300, 1981 W250, 1981-93 W350, 1986-93 W250, 1994-02 Ram 2500, 1994-02 Ram 3500, Ford - 1978-79 F-250, 1979 F-350, 1985-97 F-350

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.375
OEM Mfg	Spicer
OEM Series	1480WJ
Type	ISR Style
Bearing Cap Diameter (2)	1.375
Bearing Cap Type	Round with ISR Groove
Snap Ring Included	Yes
Snap Ring Type	Internal
Grease Zerk Included	Yes
Pre-Greased	No
Bearing Cap Finish	Ground
Grease Fitting Location	Side of Cross
Model Number	Spicer 1480 WJ (SPL55)
Seal Color/Finish	Purple
Seal Material	Rubber
Greaseable	Yes
Bearing Cap Diameter A (mm)	34.925
Bearing Cap Diameter B (mm)	34.925
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
Hardware Included	No
Length A (In)	3.000
Length A (mm)	76.200
Length B (In)	3.000
Length B (mm)	76.200
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Mounting Hardware Included	No
SR(1)Brng Cap to Brng Cap(OSR)	3.000
Prop 65	Yes
Distance Btw Snap Ring Grooves	3.000
Distance Btw Snap Ring Grooves (ISR) (2)	3.000
Country of Origin	CN
Condition	New
Quantity per Application	2
