Spicer Select Universal Joint - 25-4314X

Name: Spicer Select Universal Joint - 25-4314X
SKU: 25-4314X
Availability: OutOfStock

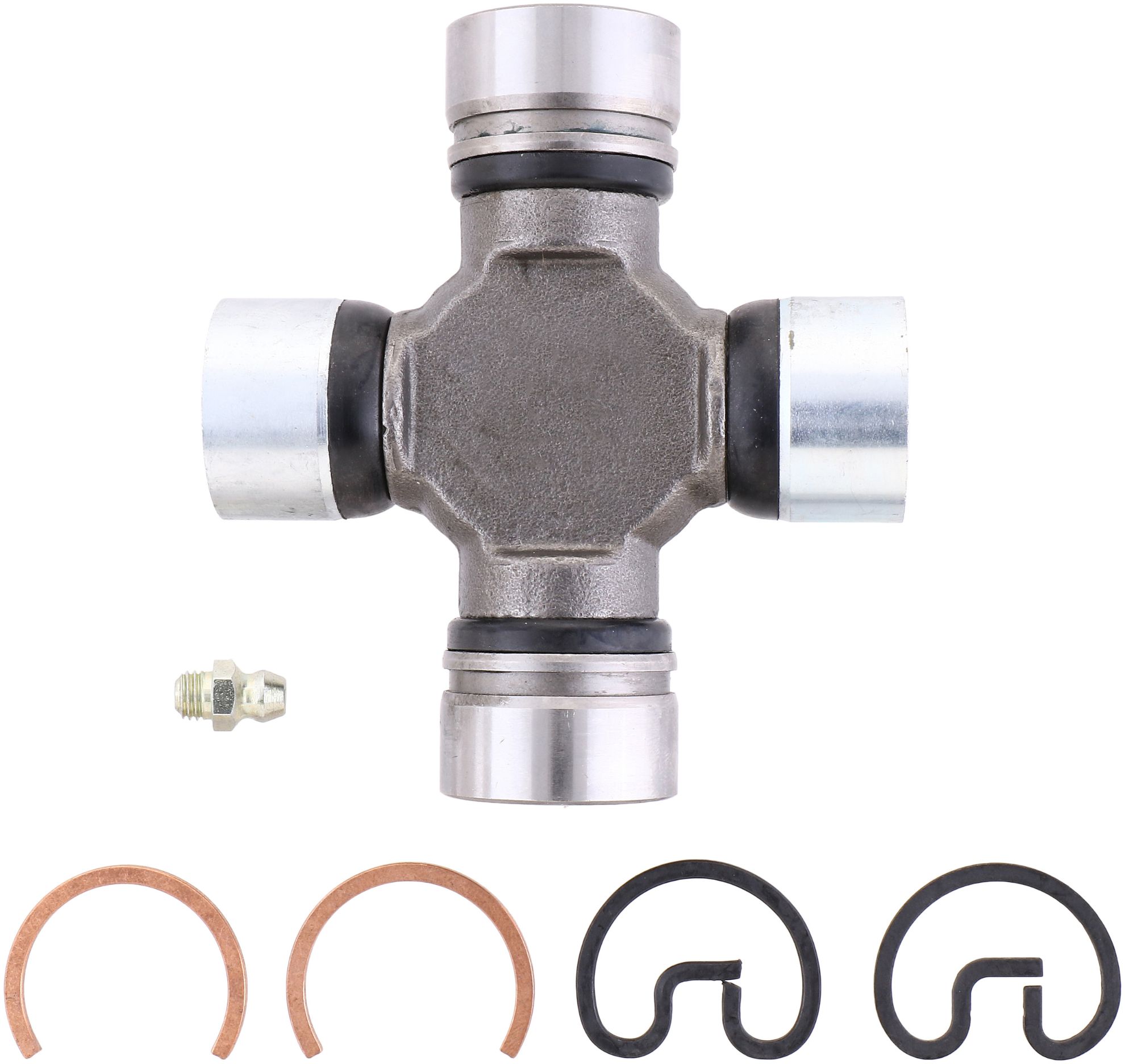

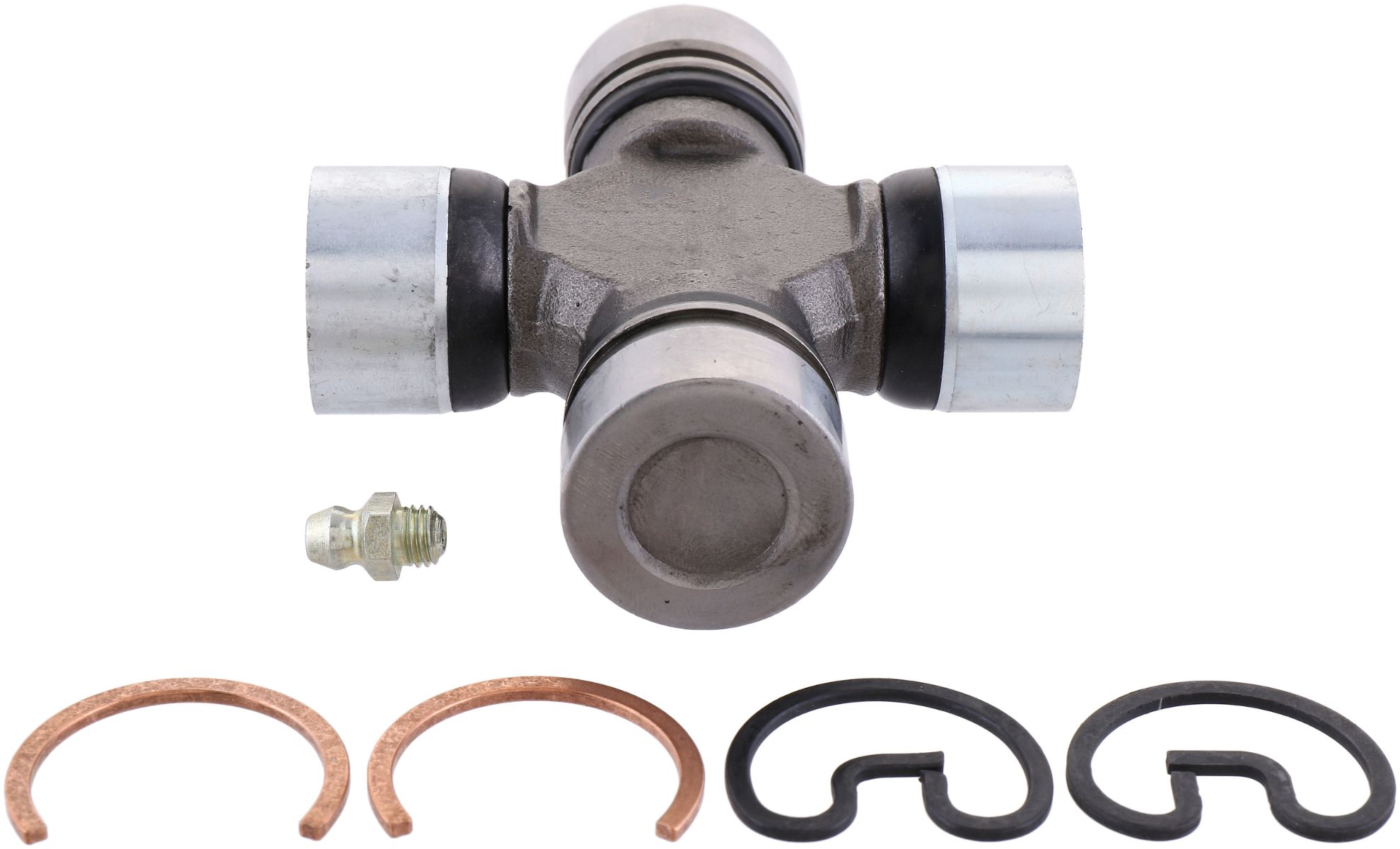

Universal Joint Greaseable 1310 to 3R/S44/1344 Series

Manufacturer: Spicer Select

Manufacturer part number: 25-4314X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Choosing aftermarket products does not have to mean taking a chance on Quality. Spicer Select Aftermarket Drivetrain Products are Dana-engineered to provide dependable performance. More than 100 years of expertise is proof-positive that we get the job done right, so you can keep doing yours.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.125
OEM Series	1310 to S44-3R/1344
Type	ISR/OSR Style
Bearing Cap Diameter (2)	1.062
Converts This Series	1310
To This Series	S44-3R/1344
Bearing Cap Type	Round/Round with ISR Groove
Snap Ring Included	Yes
Snap Ring Type	Internal/External
Grease Zerk Included	Yes
Pre-Greased	No
Grease Fitting Location	Side of Cross
Greaseable	Yes
Bearing Cap Diameter A (mm)	28.575
Bearing Cap Diameter B (mm)	26.975
Bearing Cap Type A	ISR
Bearing Cap Type B	OSR
Hardware Included	No
Length A (In)	2.556
Length A (mm)	64.900
Length B (In)	3.219
Length B (mm)	81.800
Mounting Hardware Included	No
SR(2)Brng Cap to Brng Cap(OSR)	3.219
Notes	Coated Caps
Prop 65	NO
Distance Btw Snap Ring Grooves	2.556
Country of Origin	MX
Condition	New
