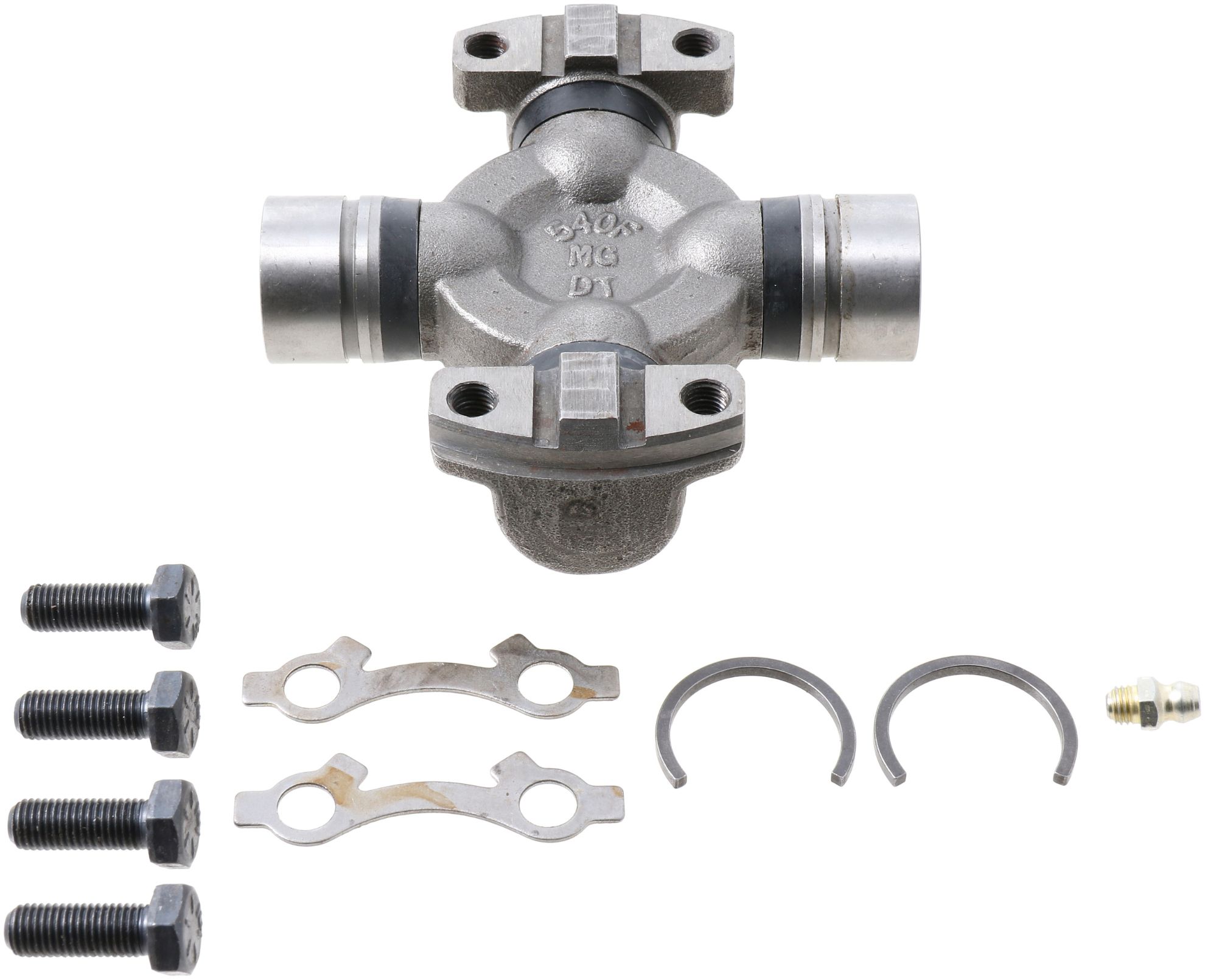

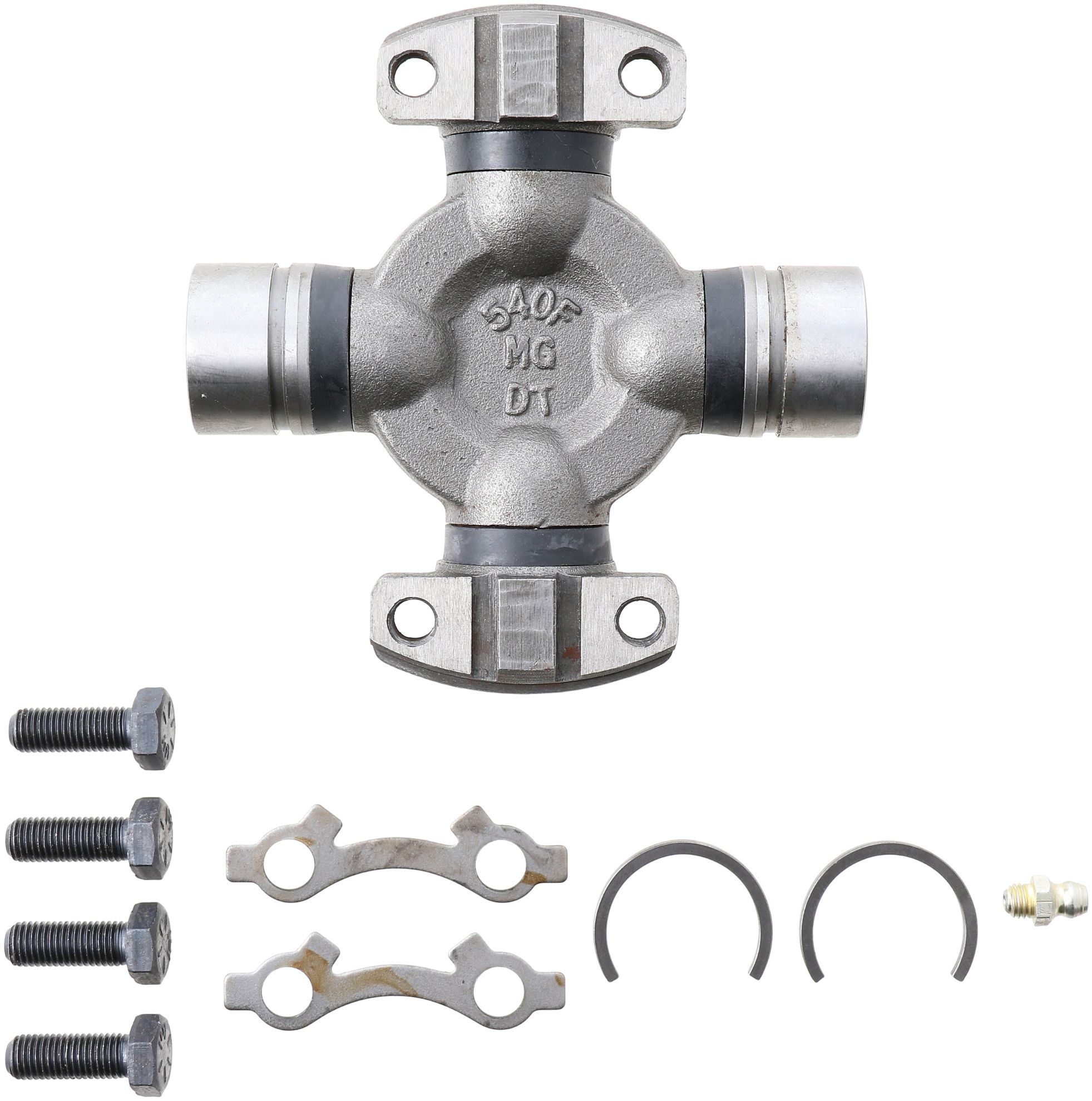

Spicer Select Universal Joint - 25-4333X

Name: Spicer Select Universal Joint - 25-4333X
SKU: 25-4333X
Availability: OutOfStock

Universal Joint Greaseable Mechanics 4 Series 2 LWT

Manufacturer: Spicer Select

Manufacturer part number: 25-4333X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Choosing aftermarket products does not have to mean taking a chance on Quality. Spicer Select Aftermarket Drivetrain Products are Dana-engineered to provide dependable performance. More than 100 years of expertise is proof-positive that we get the job done right, so you can keep doing yours.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.125
OEM Mfg	Mechanics
OEM Series	4C
Type	ISR/WB Style
Pilot Diameter	4.250
Distance Between Bolts (2)	1.438
Wb Type (2)	LWT
Bearing Cap Type	Round with ISR Groove X Wing
Snap Ring Included	Yes
Snap Ring Type	Internal
Grease Zerk Included	Yes
Pre-Greased	No
Grease Fitting Location	Side of Cross
Greaseable	Yes
Bearing Cap Diameter A (mm)	28.575
Bearing Cap Type A	Round with ISR Grooves
Bearing Cap Type B	LWT
Hardware Included	Yes
Length A (In)	3.243
Length A (mm)	82.372
Mounting Hardware Included	Yes
Prop 65	NO
Distance Btw Snap Ring Grooves	3.243
Wing Bearing Type	LWT
Wing Bearing Type Pilot Diam.	4.250
Country of Origin	US
Condition	New
