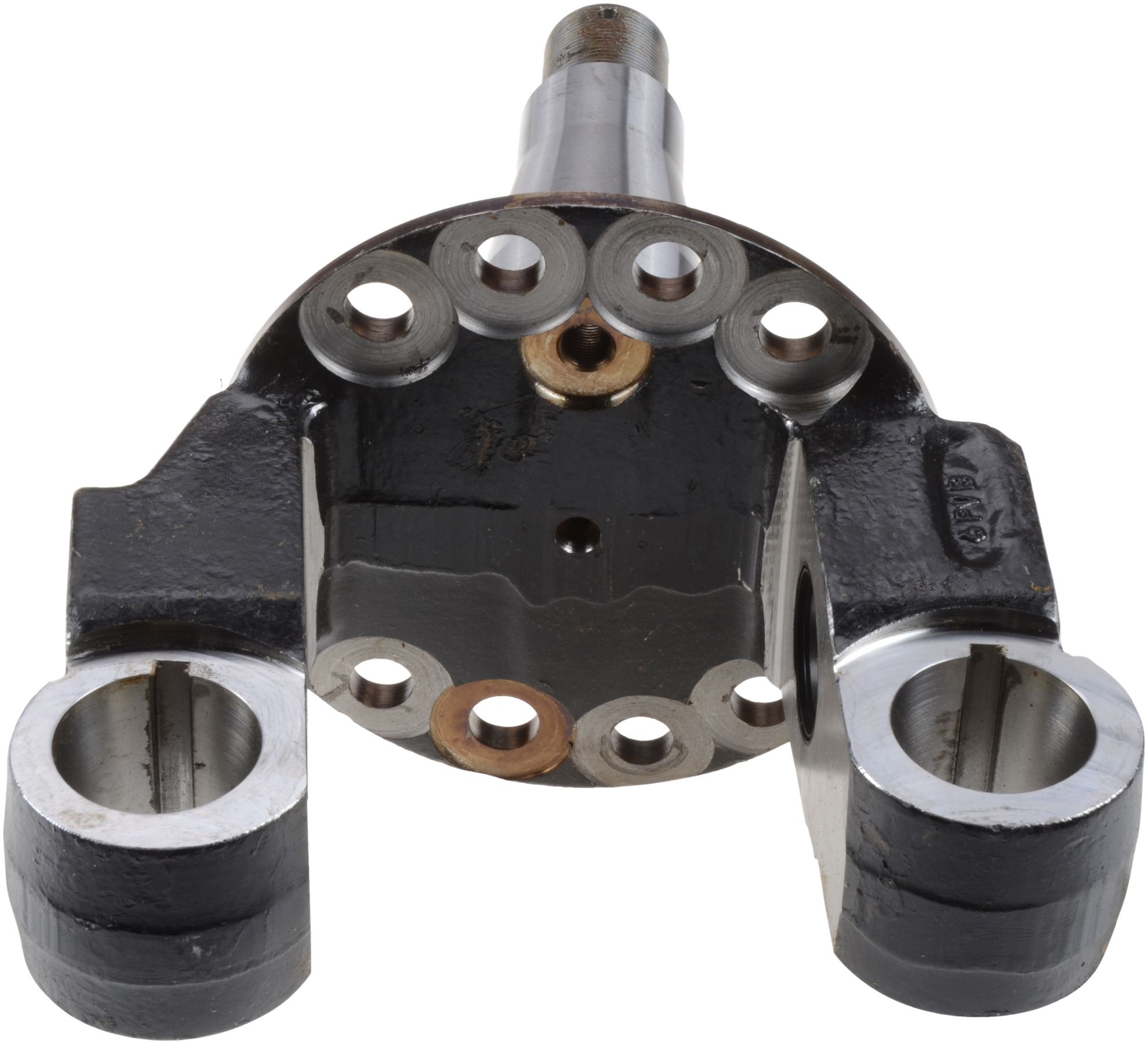

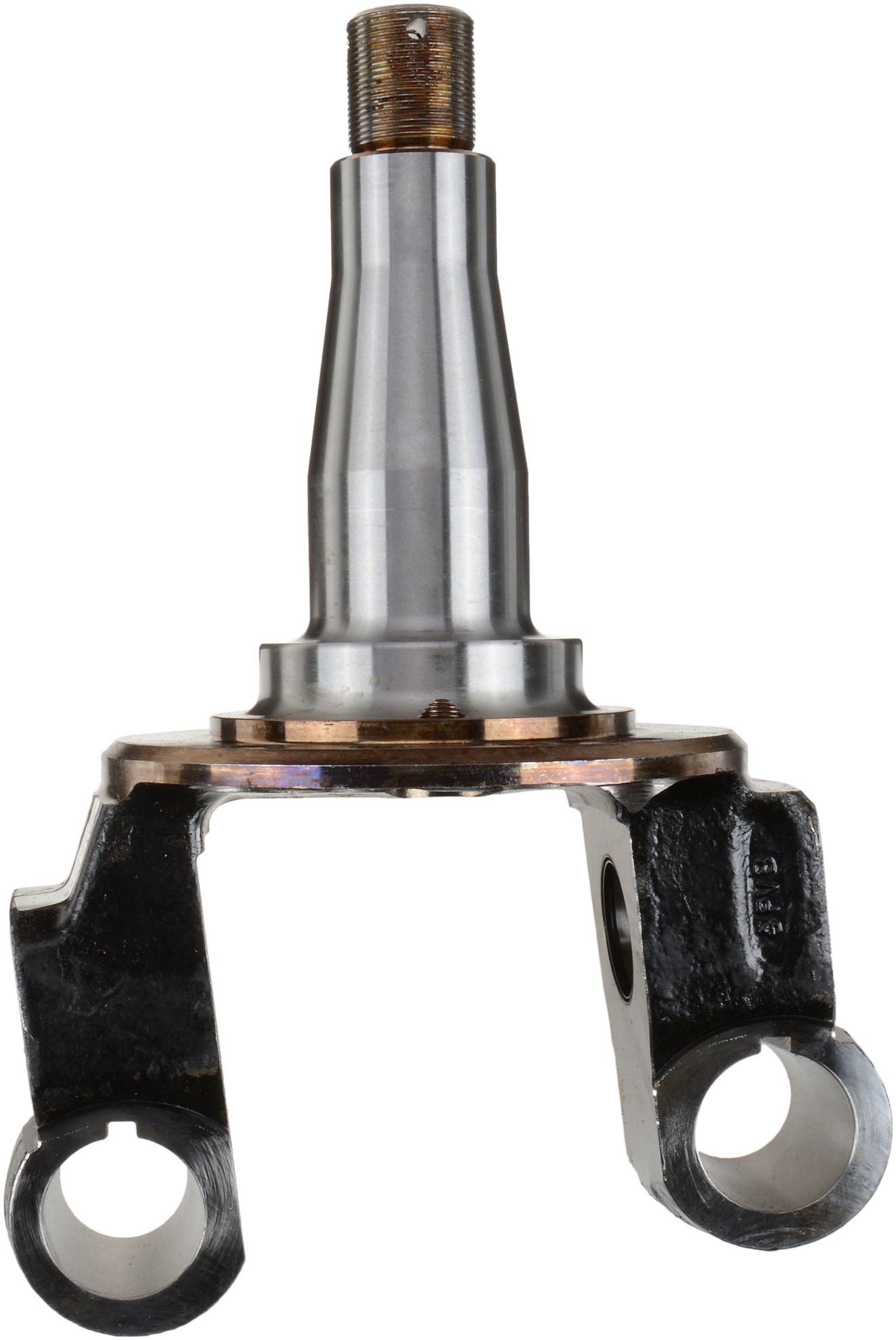

Spicer Steering Knuckle - 817247

Name: Spicer Steering Knuckle - 817247
SKU: 817247
Availability: InStock

Knuckle Sub-Assembly - Right Hand

Manufacturer: Spicer

Manufacturer part number: 817247

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Do not risk your vehicles performance on knock-off axle components. Dana offers the genuine Spicer medium- and heavy-duty axle components you need, along with the peace of mind that comes from knowing your axle contains only brand new genuine Spicer parts.

Products specifications

Attribute name	Attribute value
Series	EFA20F4, EFA24T2, EFA24T5
Prop 65	NO
Side	Right Hand
Length (Boss To End)	8.040-8.100
Length (Boss To Locknut)	6.450
King Pin Bore Diameter	1.500
Caliper Mounting Hole Quantity	10
Caliper Mounting Hole Diameter	0.651-0.666
Stop Bolt Hole	.3125-18 UNC-2B THD
Sensor Hole Diameter	0.875
Thread Type Wheel End	1.750-12 UN-2A
Spindle Small Diameter	2.2485-2.2495
Spindle Large Diameter	4.373-4.377
Country of Origin	BR
Condition	New
