Spicer Universal Joint - 5-1480SPX-MK

Name: Spicer Universal Joint - 5-1480SPX-MK
SKU: 5-1480SPX-MK
Availability: OutOfStock

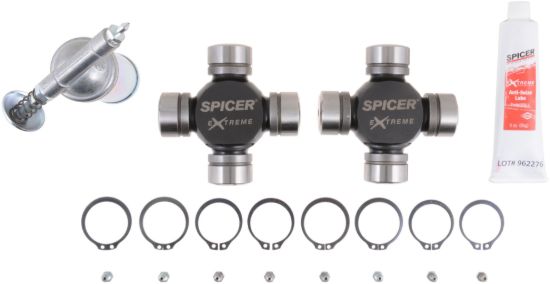

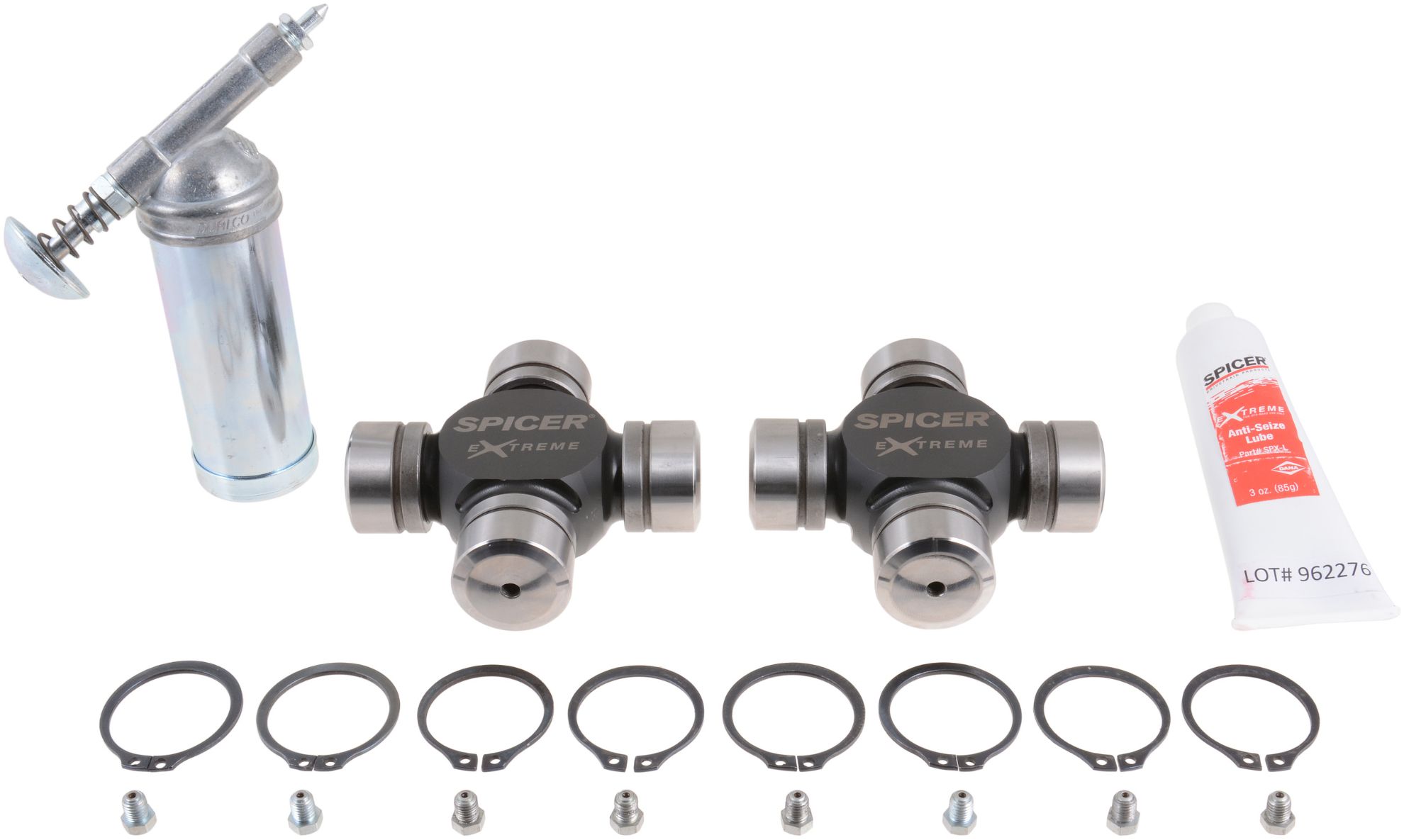

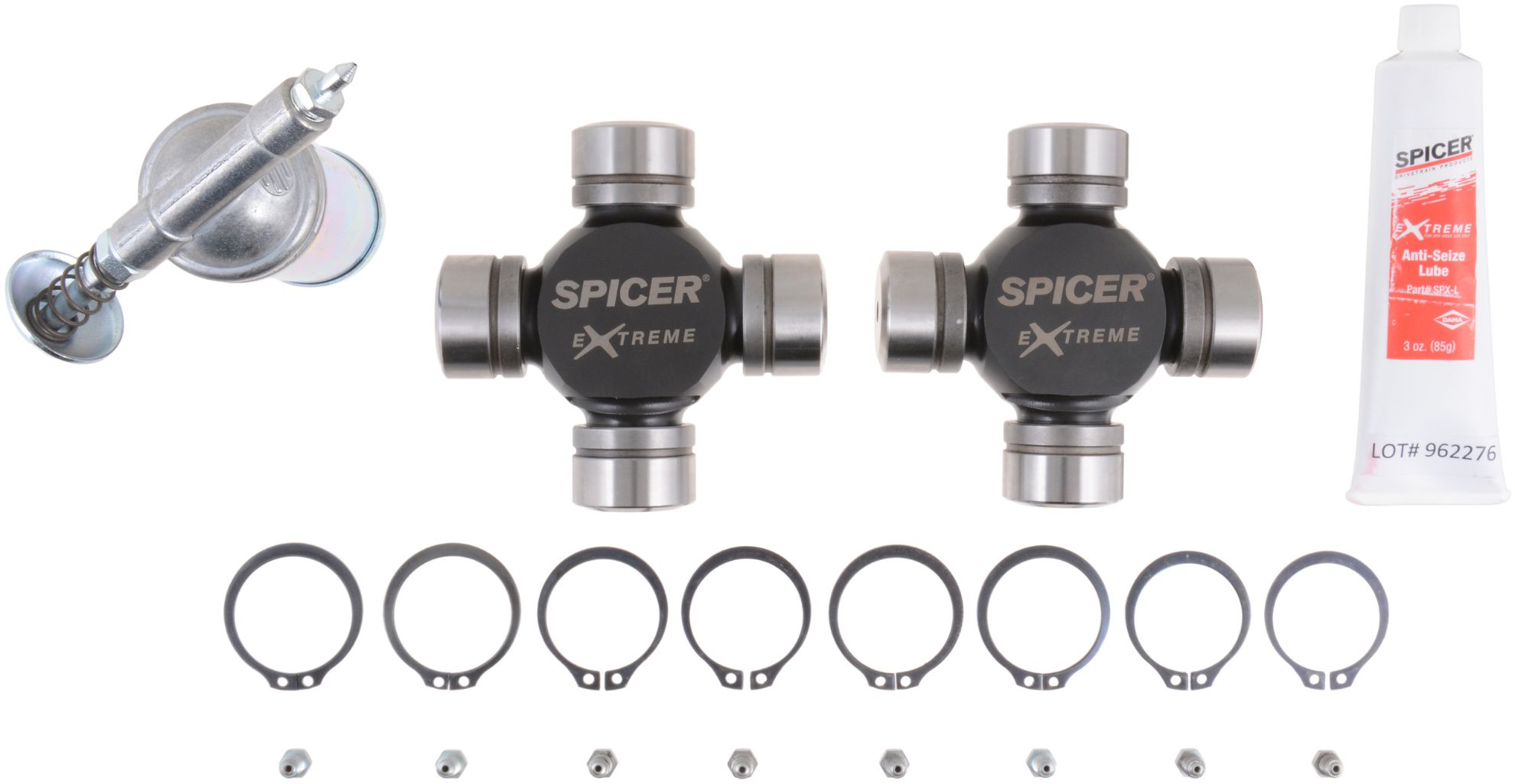

SPX 1480 M60 Spicer Extreme Universal Wheel Joint Master Kit

Manufacturer: Spicer

Manufacturer part number: 5-1480SPX-MK

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Spicer parts from Dana are trusted around the world for their high performance and outstanding durability, and now Spicer brings you their toughest u-joint yet: the Spicer Extreme u-joint. These u-joints can take any off-roading punishment you can dish out. They are virtually indestructible! Featuring a SAE-4340 nickel chromoly steel cross with an enlarged trunnion diameter for added strength, Spicer Extreme u-joints allow you to crawl over every boulder and come back for more. For off-road use only.

Products specifications

Attribute name	Attribute value
Material	Steel
Type	ISR Style
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
SR(1)Brng Cap to Brng Cap(OSR)	3.010
Bearing Cap Diameter (1)	1.375
Bearing Cap Diameter (2)	1.375
Prop 65	Yes
OEM Mfg	Spicer
OEM Series	SPL55/1480WJ
Bearing Cap Type	Round with ISR Groove
Snap Ring Included	Yes
Snap Ring Type	Internal
Grease Zerk Included	Yes
Pre-Greased	No
Grease Fitting Location	All 4 Bearing Caps
Greaseable	Yes
Hardware Included	No
Length A (In)	3.000
Length A (mm)	76.200
Length B (In)	3.000
Length B (mm)	76.200
Mounting Hardware Included	No
Distance Btw Snap Ring Grooves	3.000
Bearing Cap Diameter A (mm)	34.925
Bearing Cap Diameter B (mm)	34.925
Distance Btw Snap Ring Grooves (ISR) (2)	3.010
Country of Origin	IN
Condition	New
