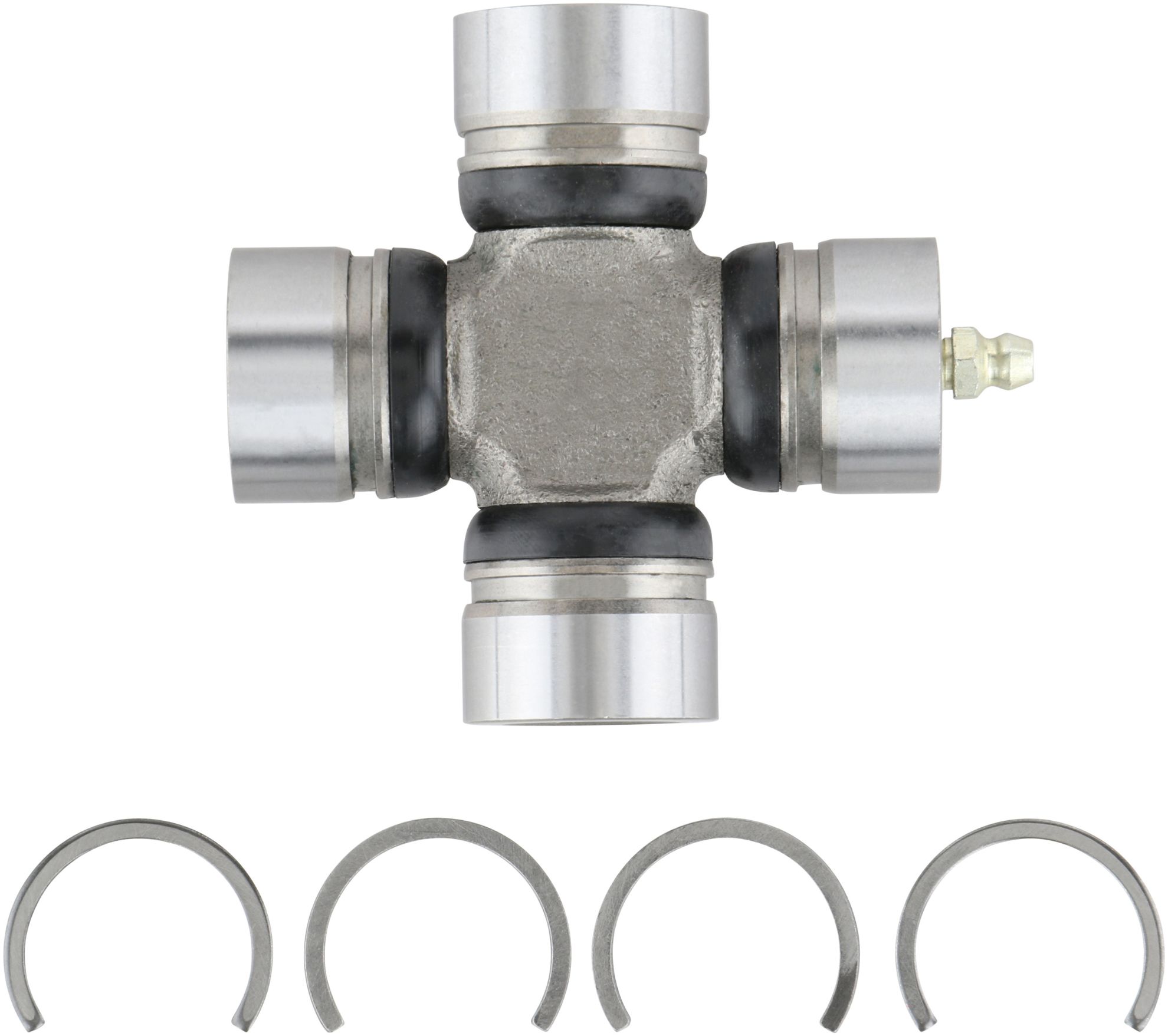

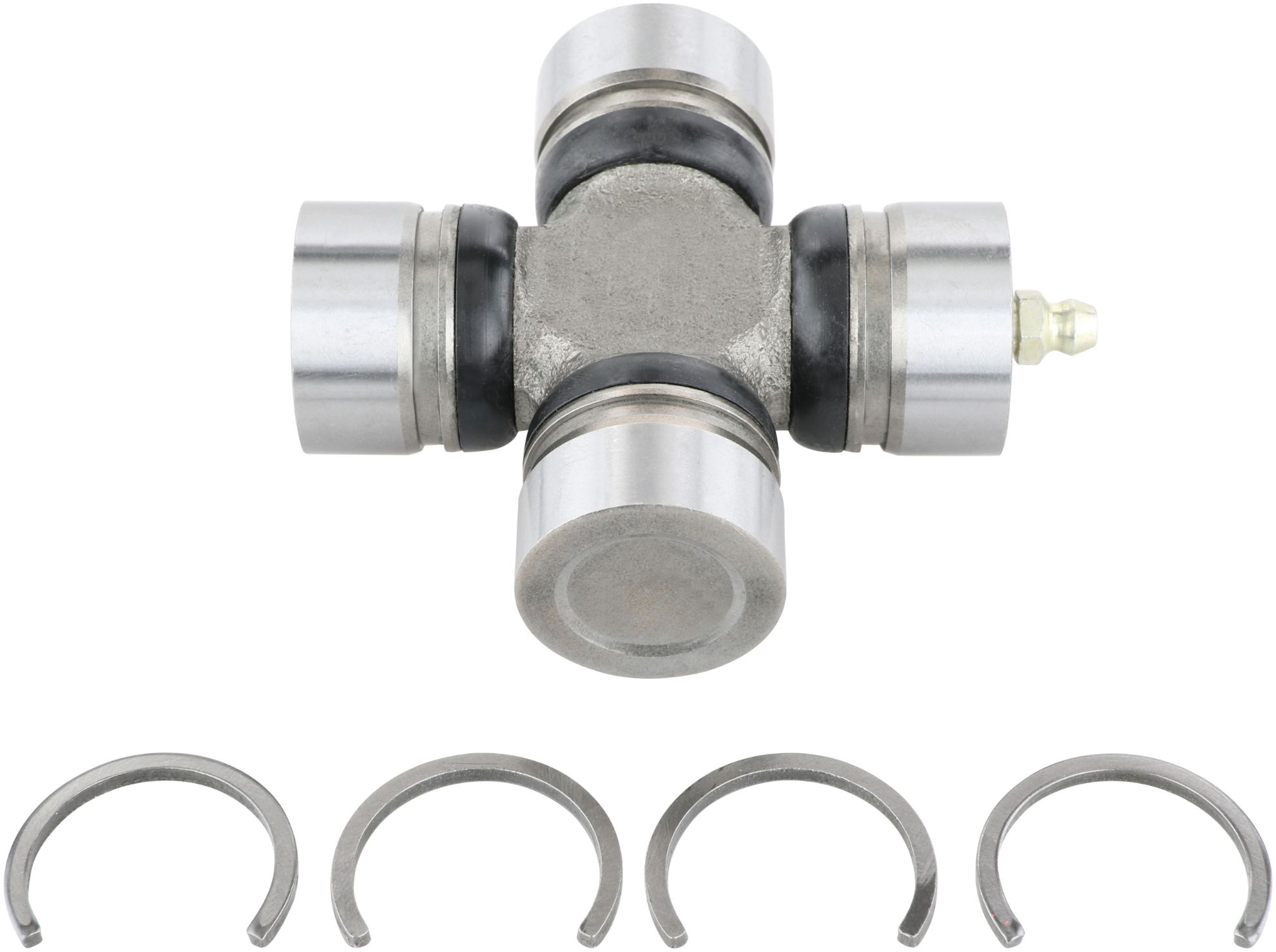

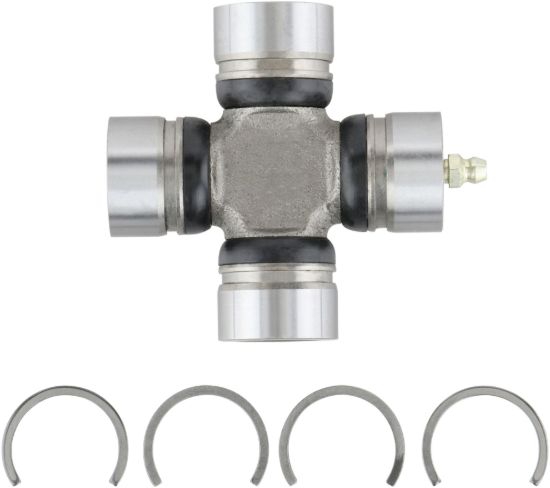

Spicer Universal Joint - 5-1510X

Name: Spicer Universal Joint - 5-1510X
SKU: 5-1510X
Availability: OutOfStock

Universal Joint Greaseable Toyota Series ISR

Manufacturer: Spicer

Manufacturer part number: 5-1510X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Products specifications

Attribute name	Attribute value
Material	Steel
Bearing Cap Diameter (1)	1.142
OEM Mfg	Toyota
Type	ISR Style
Bearing Cap Diameter (2)	1.142
Bearing Cap Type	Round with ISR Groove
Snap Ring Type	Internal
Bearing Cap Finish	Ground
Coating Type	None
Grease Fitting Location	In Bearing Cap
Grease Type	N.L.G.I. Grade 2
Model Number	TOYOTA
Seal Color/Finish	Black
Seal Material	Rubber
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
Length A (In)	2.047
Length B (In)	2.047
California Proposition 65	WARNING: Cancer — www.p65warnings.ca.gov
Prop 65	Yes
OEM Series	Ford/Mazda
Snap Ring Included	Yes
Grease Zerk Included	Yes
Pre-Greased	No
Greaseable	Yes
Length B (mm)	52.000
Mounting Hardware Included	No
Distance Btw Snap Ring Grooves	2.047
Length A (mm)	52.000
Hardware Included	No
Bearing Cap Diameter A (mm)	29.000
Bearing Cap Diameter B (mm)	29.000
Distance Btw Snap Ring Grooves (ISR) (2)	2.047
Country of Origin	CN
Condition	New
