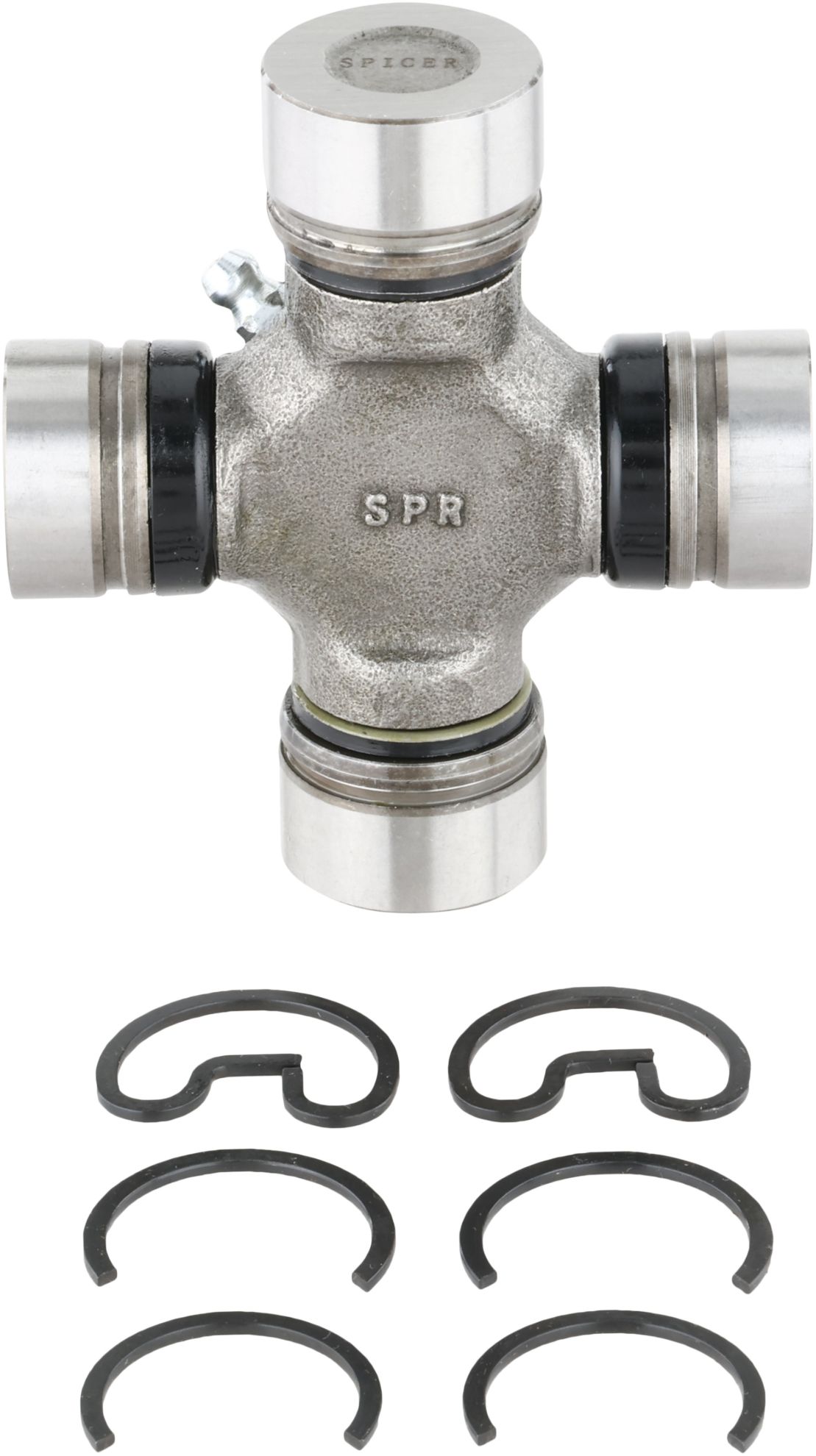

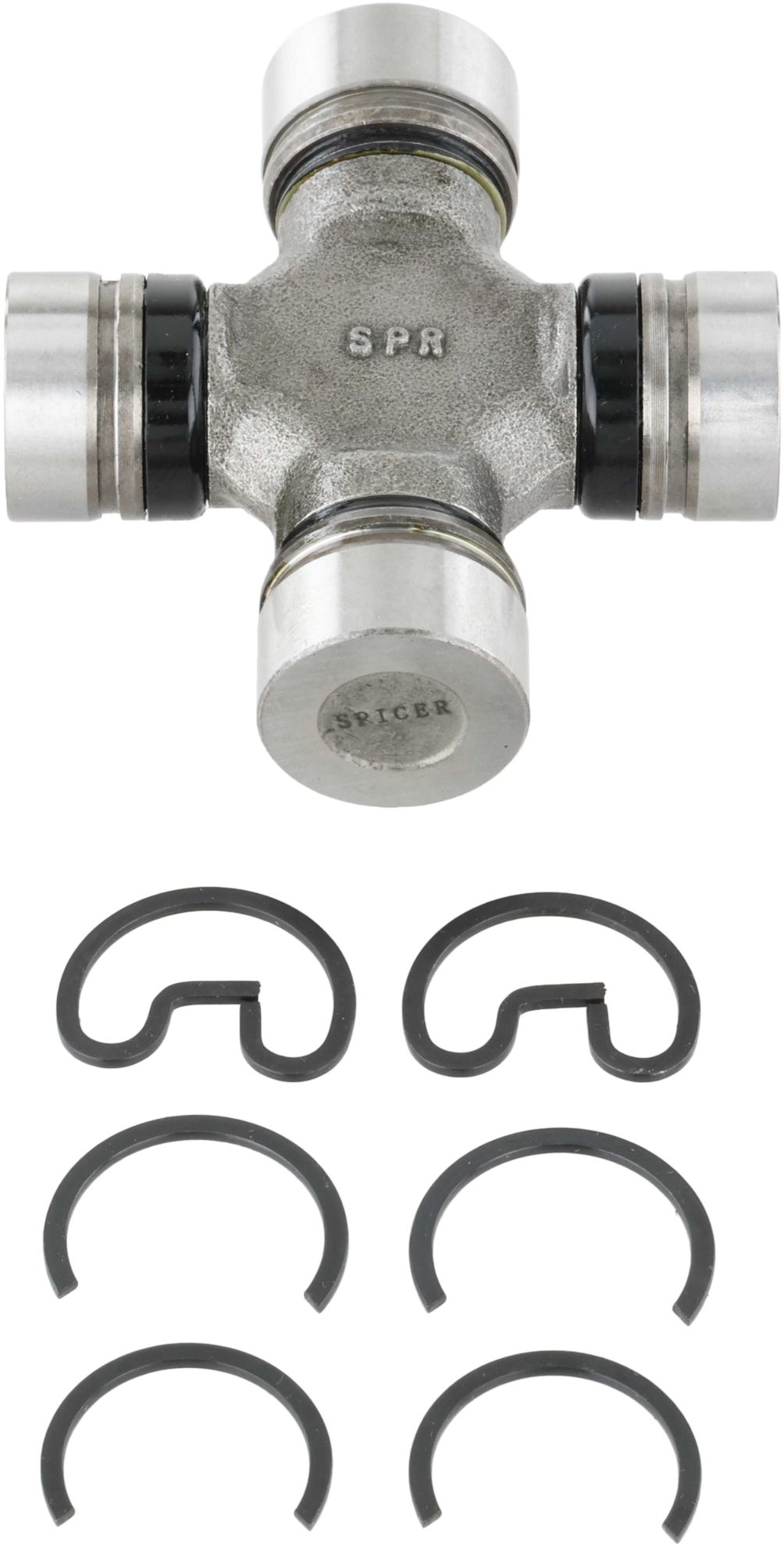

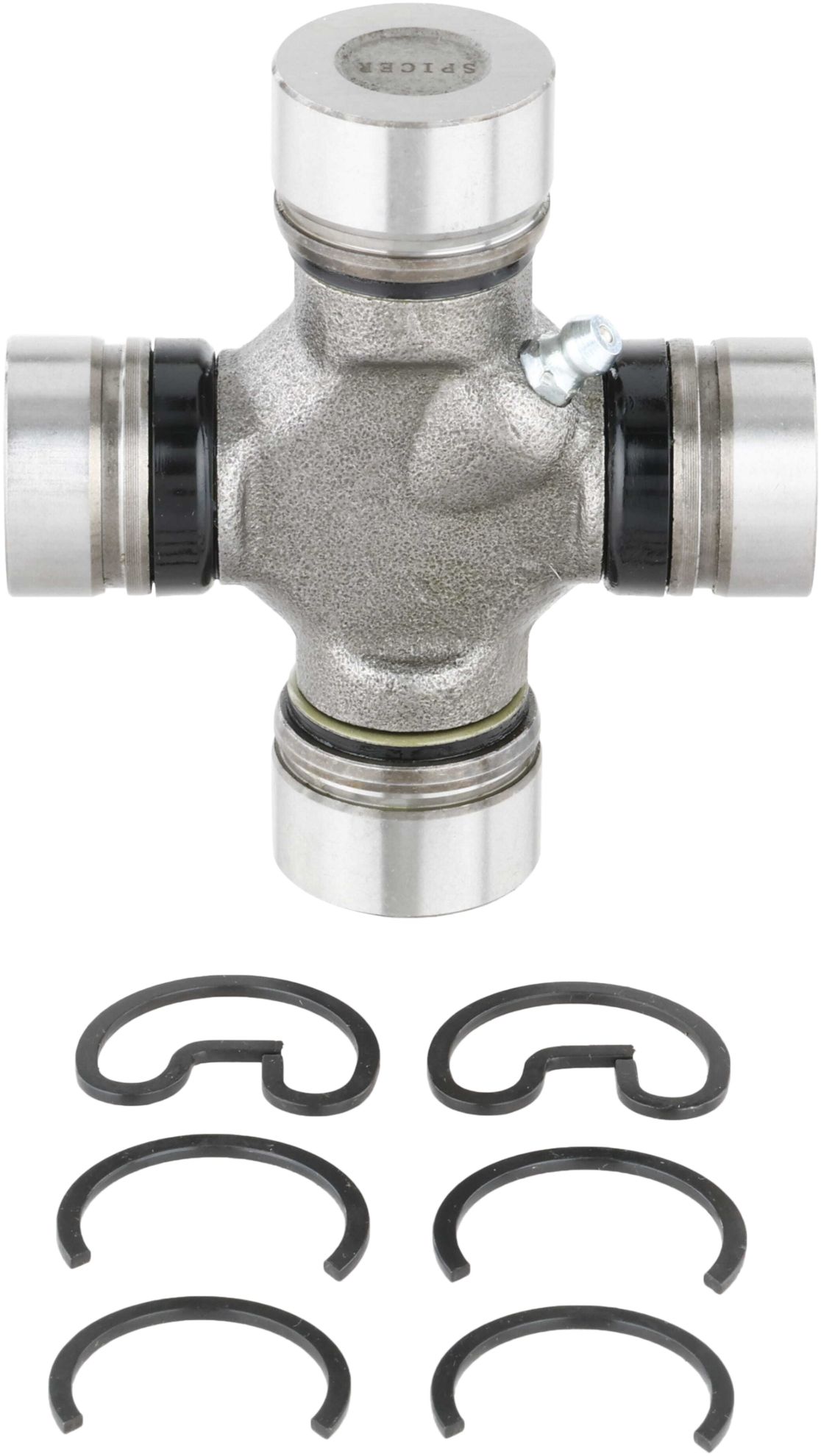

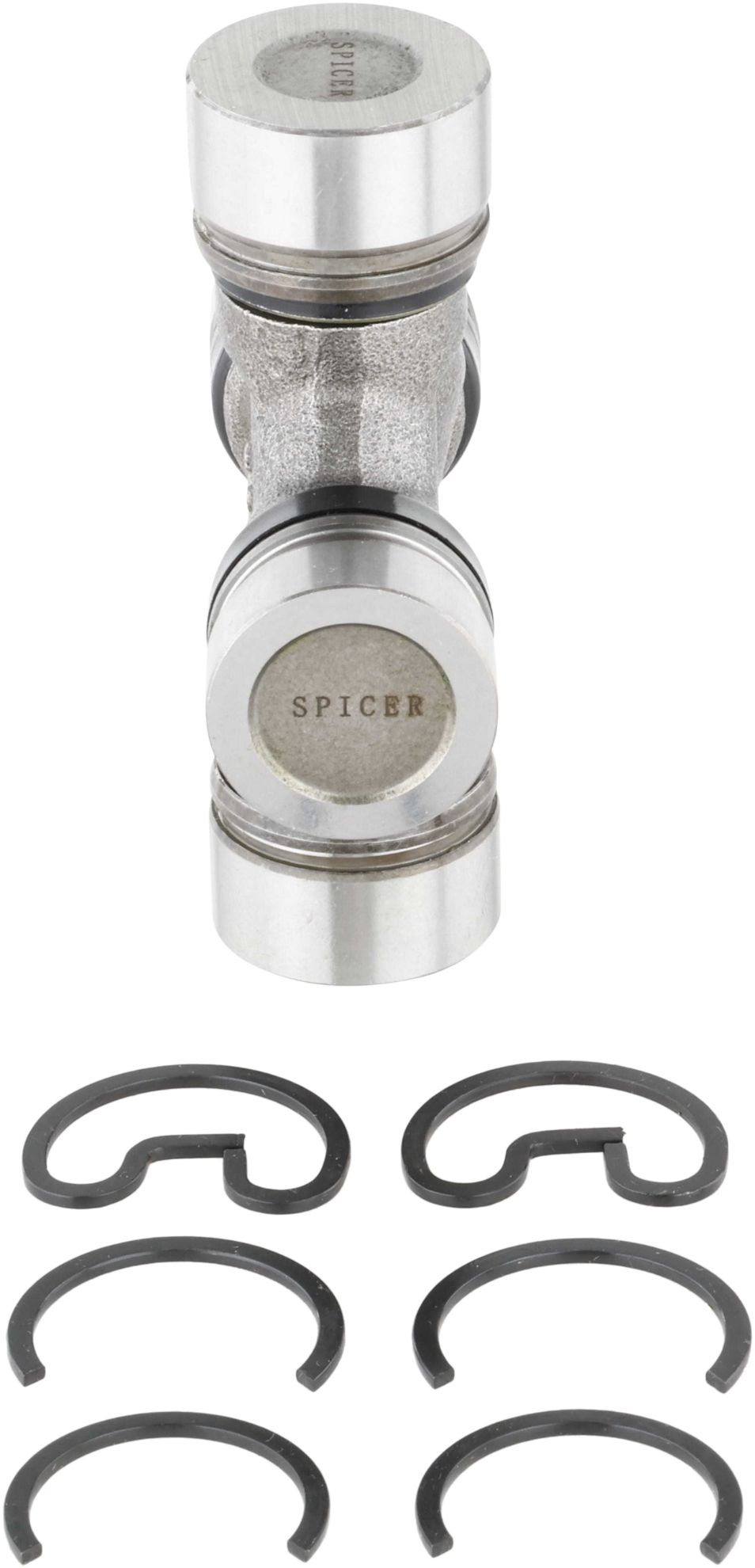

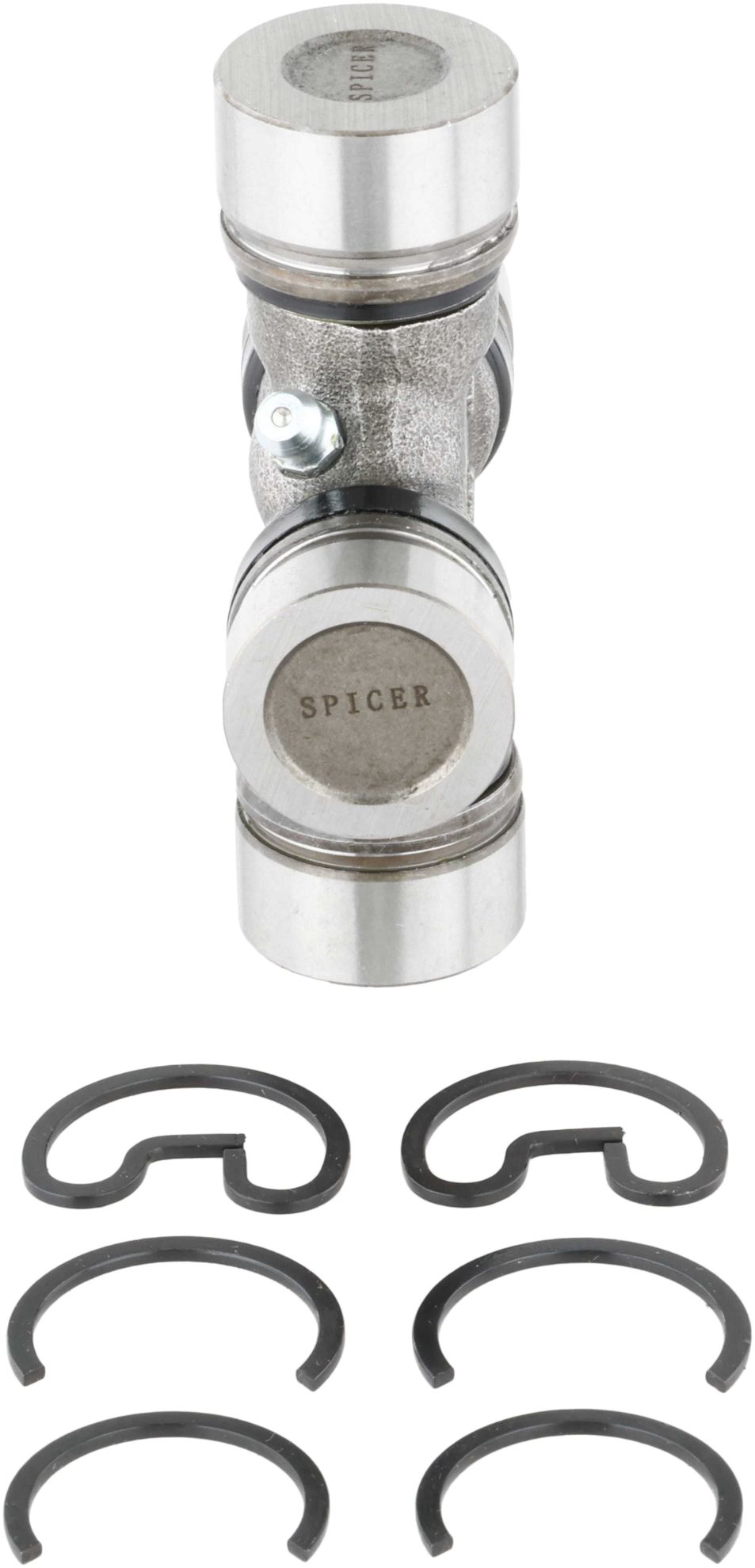

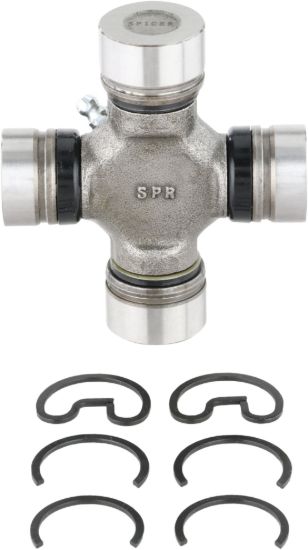

Spicer Universal Joint - 5-3022-1X

Name: Spicer Universal Joint - 5-3022-1X
SKU: 5-3022-1X
Availability: OutOfStock

Universal Joint Greaseable Mechanics S44/3R to 1310 Series

Manufacturer: Spicer

Manufacturer part number: 5-3022-1X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Products specifications

Attribute name	Attribute value
SR(2)Brng Cap to Brng Cap(OSR)	3.219
Material	Steel
Bearing Cap Diameter (1)	1.125
OEM Mfg	Mechanics
OEM Series	S44
Bearing Cap Diameter (2)	1.062
Bearing Cap Type A	ISR
Bearing Cap Type B	OSR
Bearing Cap Type	Round/Round with ISR Groove
To This Series	1310
Converts This Series	S44
Length A (In)	2.556
Length B (In)	3.219
Prop 65	NO
Type	ISR/OSR Style

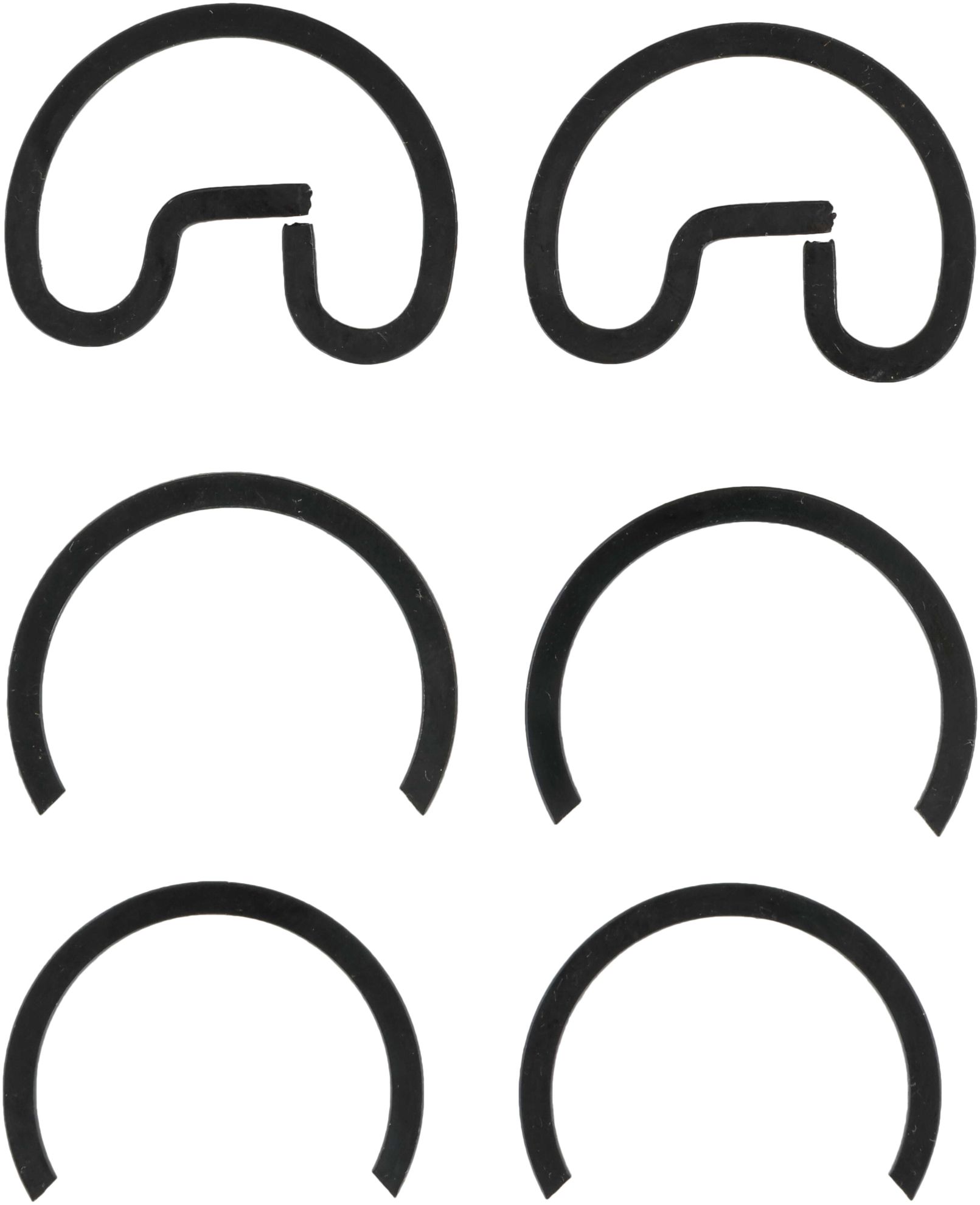

Snap Ring Included	Yes
Snap Ring Type	Internal/External
Grease Zerk Included	Yes
Pre-Greased	No
Grease Fitting Location	Side of Cross
Greaseable	Yes
Hardware Included	No
Length A (mm)	64.900
Length B (mm)	81.800
Mounting Hardware Included	No
Distance Btw Snap Ring Grooves	2.556
Bearing Cap Diameter A (mm)	28.575
Bearing Cap Diameter B (mm)	26.975
Country of Origin	CN
Condition	New
