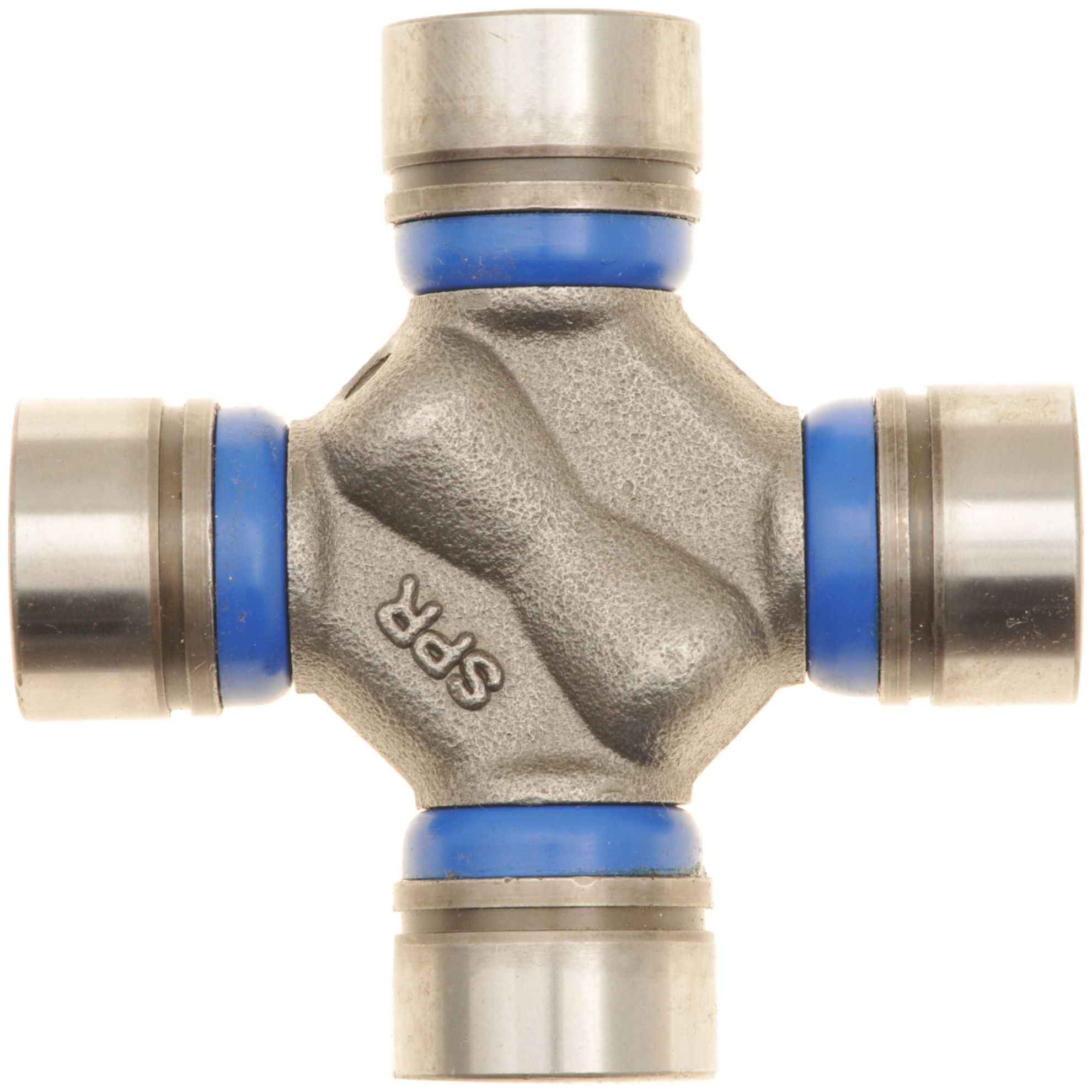

Spicer Universal Joint - 5-3147X

Name: Spicer Universal Joint - 5-3147X
SKU: 5-3147X
Availability: OutOfStock

Universal Joint Greaseable S44/3R Series

Manufacturer: Spicer

Manufacturer part number: 5-3147X

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Products specifications

Attribute name	Attribute value
Bearing Cap Finish	Ground
Coating Type	None
Grease Fitting Location	Side of Cross
Grease Type	N.L.G.I. Grade 2
Model Number	3R, SAGINAW 44, AAM 1344
Seal Color/Finish	Blue
Seal Material	Rubber
Bearing Cap Type A	ISR
Bearing Cap Type B	ISR
Length A (In)	2.556
Length B (In)	2.556
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Prop 65	Yes
OEM Series	S44/3R
Snap Ring Included	Yes
Grease Zerk Included	Yes
Pre-Greased	No
Greaseable	Yes
Hardware Included	No
Length A (mm)	64.922
Length B (mm)	64.922
Mounting Hardware Included	No
Distance Btw Snap Ring Grooves	2.556
Bearing Cap Diameter A (mm)	28.575
Bearing Cap Diameter B (mm)	28.575
Snap Ring Type	Internal
Bearing Cap Type	Round with ISR Groove
Bearing Cap Diameter (2)	1.125
Type	ISR Style
OEM Mfg	Mechanics
Bearing Cap Diameter (1)	1.125
Material	Steel
Country of Origin	US
Condition	New
