T304 Stainless Steel V-B and Outlet Flange

Name: T304 Stainless Steel V-B and Outlet Flange
SKU: 1415
Price: 43.92 USD
Availability: InStock

Manufacturer: Vibrant Performance

Manufacturer part number: 1415

$43.92

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

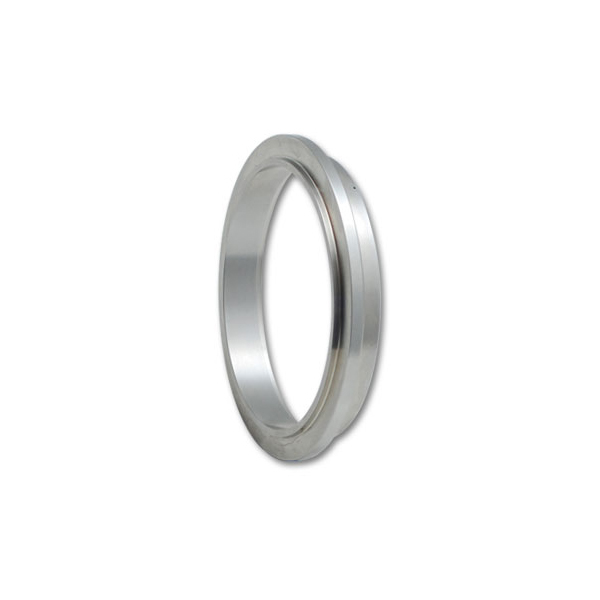

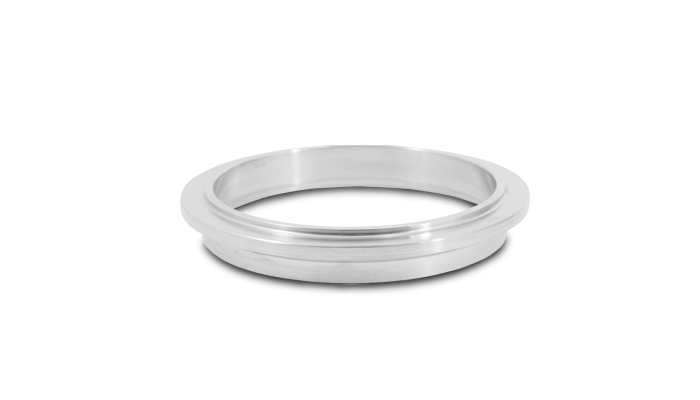

V-Band Flange - 0.5 in Thick - 3 in OD Tubing - Stainless - Natural - Each

Manufacturer Part #: 1415

Products specifications

Attribute name	Attribute value
Prop 65 Yes/No	No
Sale Segment	Turbo Flanges and Fittings
Product Type	V-Band Flange
Thickness	12.9
Material	Stainless, 304 Stainless Steel
Sub Type	0.5 in Thick
Tube Recess Depth	2.5
Finish	Natural
Tube Recess I.D.	3
Unit	Each
Web Category	Turbine Outlet Flanges
Apex Width	3.57
Centering Ring Male Diameter Height	1.78
Specifications	3 in OD Tubing
Centering Ring Male Diameter	77.7
Flange O.D.	90.18
Port I.D.	72.9
Country of Origin	IN
Condition	New
