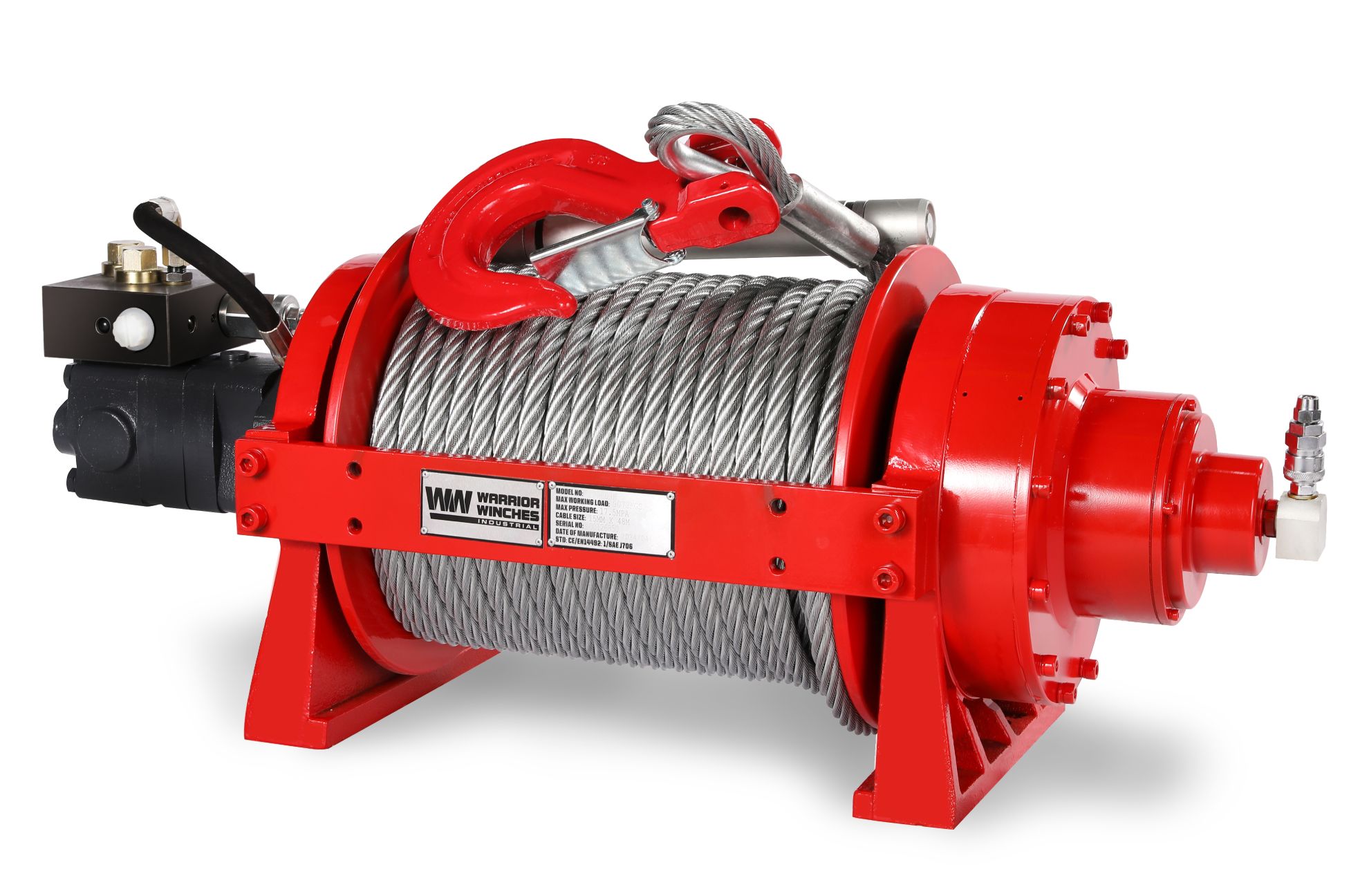

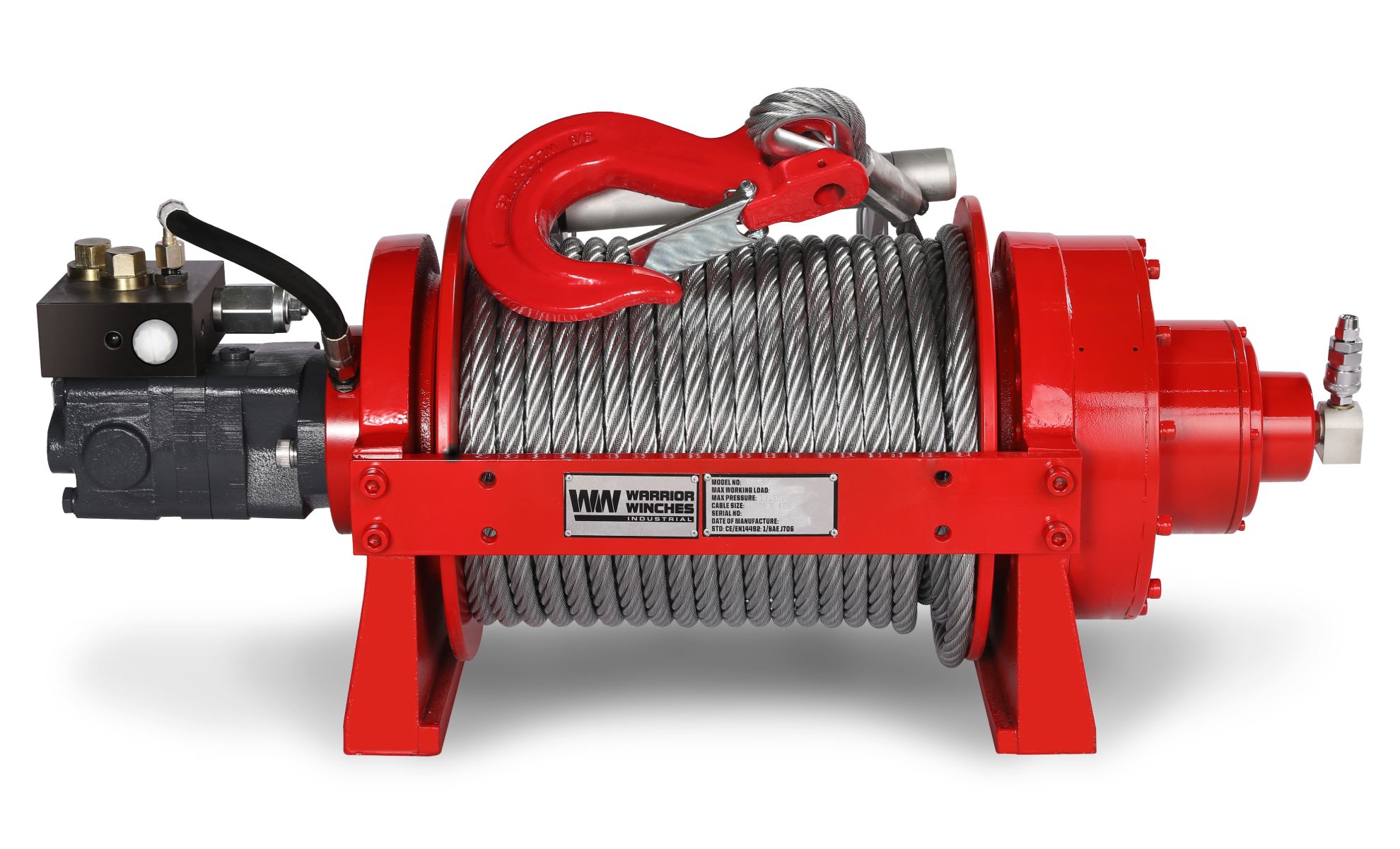

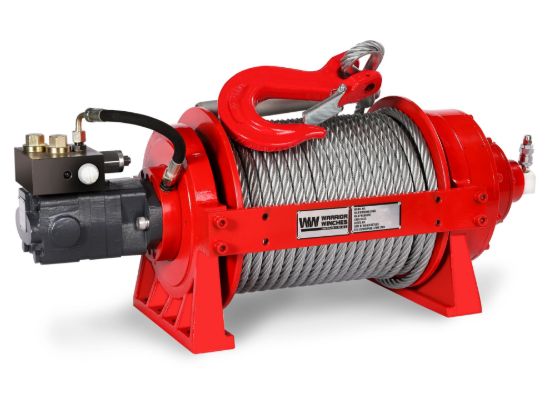

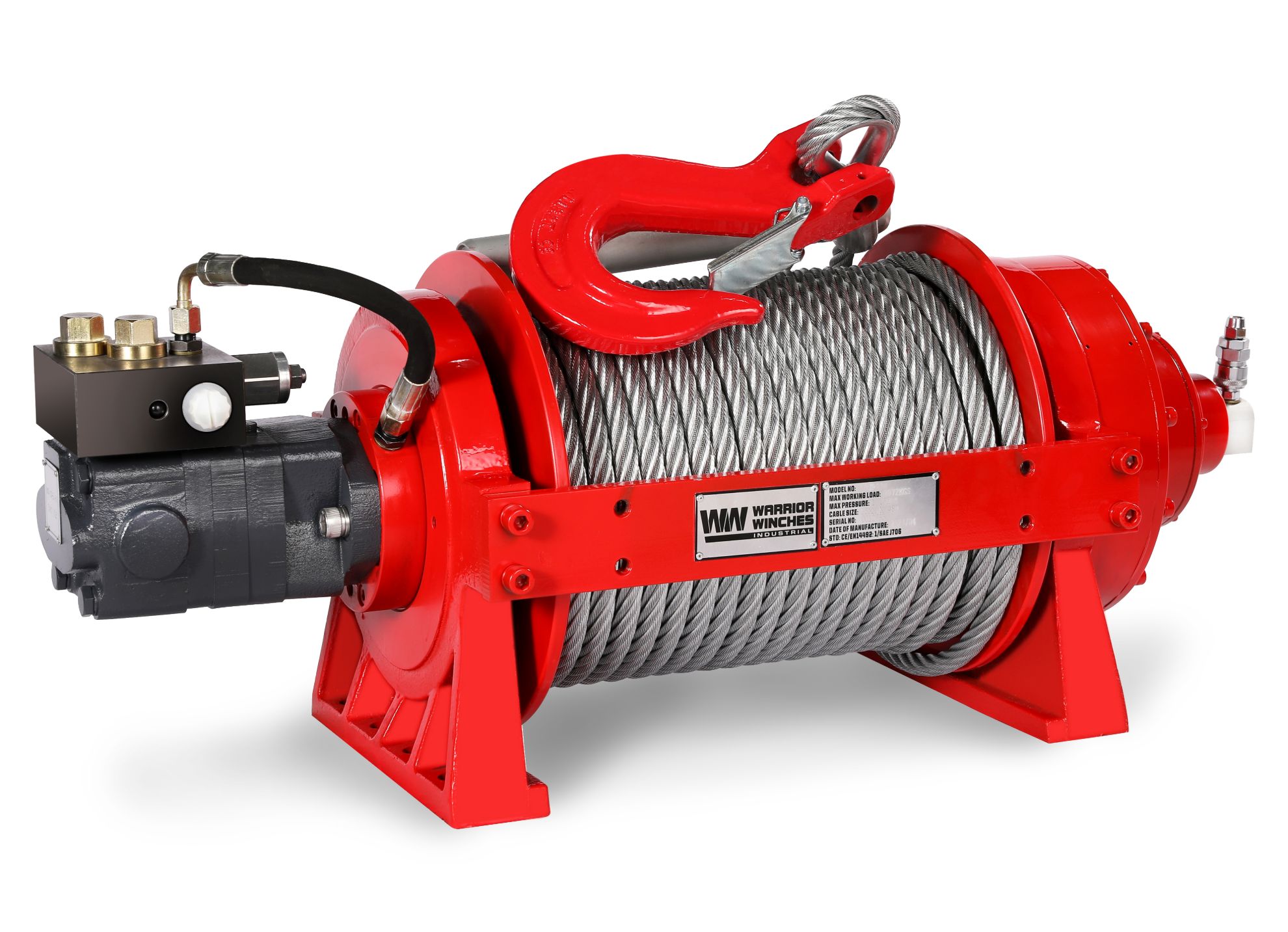

Warrior Winches Winch - 10JR03H-CAD

JR Hydraulic Winch
Manufacturer: Warrior Winches
Manufacturer part number: 10JR03H-CAD
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The complete Package. A superb heavy duty winch supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications. Comprising of 10:1 cable to drum ratio as well as two hole fixing for the rope combined with a suitable installation solution they can meet the requirements of BS EN 14492-1:2006+A1:2009 only when all parts supplied are fitted . Additional features include 10: 1 drum/rope ratio, 2:1 rope ratio, double rope fixing. These winches conform to BS EN 14492-1:2006+A1:2009 only when all parts supplied are fitted.

Products specifications

Attribute name Attribute value
Braking Action Wet-type hydraulic brake
Gearing 39:1
Motor Type Hydraulic Sauer Danfoss OMS 100
Certification CE;SAEJ-706
Rated Line Pull 22000
Clutch Air Clutch
Max Pressure 20
Mounting Pattern 17.0 x 2.5 x 7.6 in (8-M14)
Cable Material Steel
Condition New
