Wiseco Engine Piston Set - K695M955AP-3D

Name: Wiseco Engine Piston Set - K695M955AP-3D
SKU: K695M955AP-3D
Price: 1499.99 USD
Availability: OutOfStock

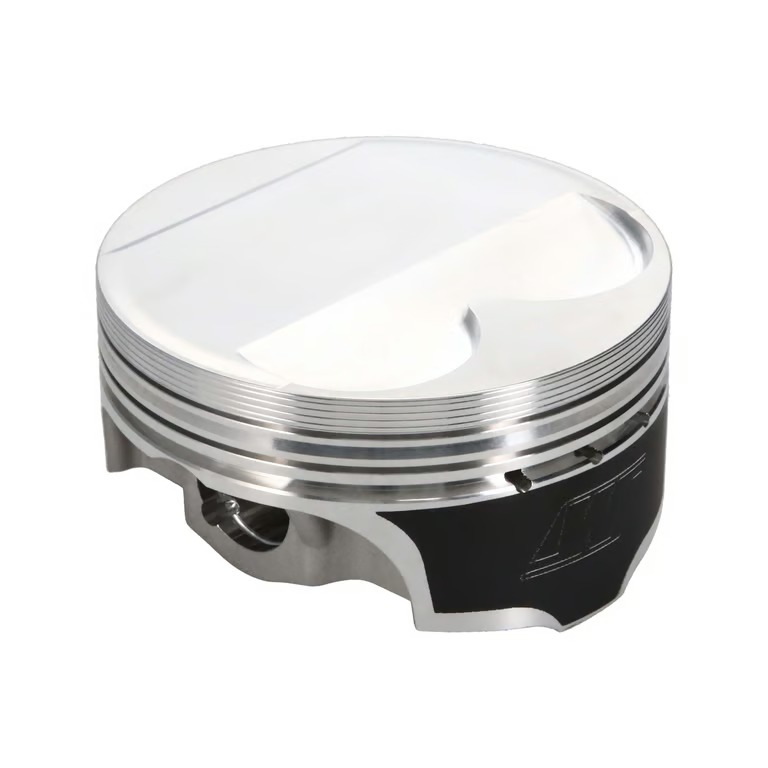

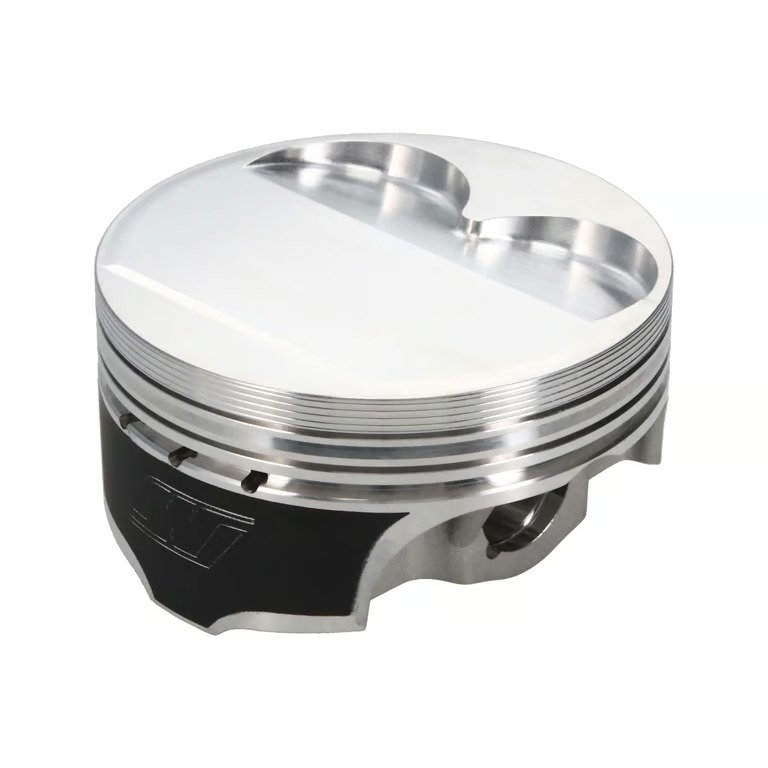

Piston Set, Nissan, VR38DETT, 95.50 mm Bore, Sport Compact, Set of 6

Manufacturer: Wiseco

Manufacturer part number: K695M955AP-3D

$1,499.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

Products specifications

Attribute name	Attribute value
Wrist Pin Outer Diameter	0.9055
Engine Detail	Nissan VR38DETT
Product Type	Engine Piston Set
Category Hierarchy	Auto>Pistons>Piston Kits>Sport Compact
Prop 65 - Short Label	prop65warninglabel.jpg
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
EBAY Category ID	33623
Product Series	Professional
Bore Diameter	95.50, 3.760, 95.5
Compression Height	34.30, 1.210, 34.3
Piston Volume	-3.50
Material	2618, 2618 Aluminum
Skirt Coating	Yes
Forging Type	Domed
Piston Quantity	6
Ring Set Included	Yes
Top Compression Ring Thickness	1, 0.0394
Second Compression Ring Thickness	1.2, 0.0472
Oil Ring Thickness	3, 0.1102, 2.8
Wrist Pin Included	Yes
Wrist Pin Material	52100
Wrist Pin Style	Floating
Oil Spacer Ring Thickness	0.1
Piston Pin Inside Diameter	0.6805, 17.285
Piston Pin Outside Diameter	0.9055, 23
Compression Ratio	10.5:1
Piston Pin Length	2.250, 57.15
Piston Pin Material	52100 Steel
Piston Head Type	Dome
Ring Material	Gas Nitrided Top, Napier Scraper 2nd, Flex-Vent Style Oil
Assembly Lubricant Included	No
Grade Type	Premium
Oversized	Yes
Piston Pin Incorporated Bearings	Yes
Country of Origin	US
Condition	New
